125 Amps Isolator Switch, 3 Pole/ 4 Pole

5 out of 5 based on 1 reviews | Write a review

$169.79

Affordable price isolator switch for sale, 3 pole or 4 pole, load isolating switch is beautiful in appearance, novel, concise, and small in size. It is an ideal choice among similar products.

Number of Poles *
Load Operation *

SKU: ATO-IS-HGL125A

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

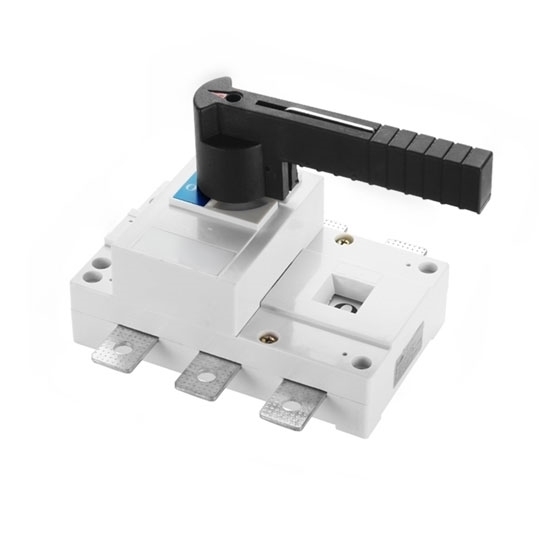

This lightweight load isolator disconnect switch, it ranges from 3 Pole and 4 Pole. When the voltage is at 380V, the motor power is 63 kW, voltage is at 660V, motor power is 75 kW, and rated current is 125A. It can be used for a long time and is also affordable.

125 Isolator Switch Specifications

Basics	Model			ATOHGL-125A
	Pole			3 Pole/4 Pole
	Weight		3 Pole	1.2kg
Technical Parameters			4 Pole	1.4kg
	Rated current			125A
	Rated insulation voltage Ui			690V
	Dielectric strength			1890V
	Rated surge-resistant voltage Uimp kV (installed category IV)			8
	Rated Working current le	380V	AC-21B	125A
			AC-22B	125A
			AC-23B	125A
	Motor power P(380V)kW		380V	63 kW
			660V	75 kW
	Rated short-time withstand current lcw（kA rms)1.0s			6
	Rated breaking capability Icn (Arms) AC23 380VA			1000
	Rated making capacity Icm(Arms) AC23 380V			1250
	Rated short-current making capacity Icm'(Kapeak value)			9.2
	Mechanical durability (number of cyclic operation)			1400
	Electrical Curability 380V			200
	Electric durability Ue=660V, Rated current		COSφ=0.95AC21	1500
			COSφ=0.65AC22	1000
			COSφ=0.35AC23	500
Working Environment	Moment of operation			6.5 Nm
	Temperature			-5℃~+55℃
	Way of working			Continuously working
	Operating			Handle
	Installation form			Vertical
	Altitude			≤2000m
	Pollution level			3
	Overvoltage level			Ⅲ
	IP level			IP 20

Dimension

Current	A	B	C	D	D1	E	ΦL	J	K	N	P	R	S	U	ΦX	Y	F	H
125A/3P	230	240	179	50	137	115	7	210	140	135	65	32	40	206	11	37	95	20
125A/4P	290	240	179	520	137	114	7	210	140	135	65	32	40	206	11	37	95	20

3 Pole 4 Pole Isolator Switch Operation Mode

Isolator Switch Features

The acceleration mechanism that is released instantaneously by the spring accumulator achieves fast switching or breaking (13.8 m/s), which is independent of the operating handle speed and greatly improves the arc extinguishing capability.
The outer shell made of glass fiber reinforced unsaturated polyester resin has good flame retardancy, dielectric properties, carbonation resistance and impact resistance.
Parallel double breaks have self-cleaning action.
All contacts have two separate contact faces. The isolation distance is large. When the position is “0”, the handle can be locked with three locks at the same time, which can reliably avoid misoperation.

Details

Load Break Switches Explained

In this video, we delve into the world of load break switches, mechanical devices capable of being operated while under load. We'll explore their functionality, applications in electrical systems, and provide a detailed breakdown of their features to equip you with a thorough comprehension of their advantages.

Different Types of Isolators and Their Uses

This video explains the popular types of switch isolators on the market and their potential applications in everyday and industrial use.

Load Break Switches Explained

Load break switch is a kind of mechanical switching device that can be opened and closed under load. In this video, we have explained what a load break switch is and what they can achieve in electrical applications , and most of all we have detailed the features of load break switches so as to give you a comprehensive understanding of their benefits.
