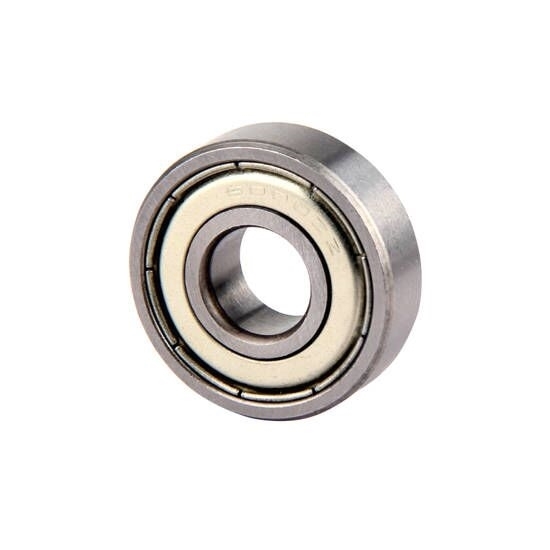

10mm Deep Groove Ball Bearing, Single Row

The reliable axial deep groove ball bearing 6000 with an inner diameter of 10mm is made of high-quality steel material. This makes deep groove bearing has less friction, low noise, long service life time.

Specification

• Model: ATO-6000
• Inner Diameter: 10mm
• Outer Diameter: 26mm
• Width: 8mm
• Bearing Material: High-quality carbon steel

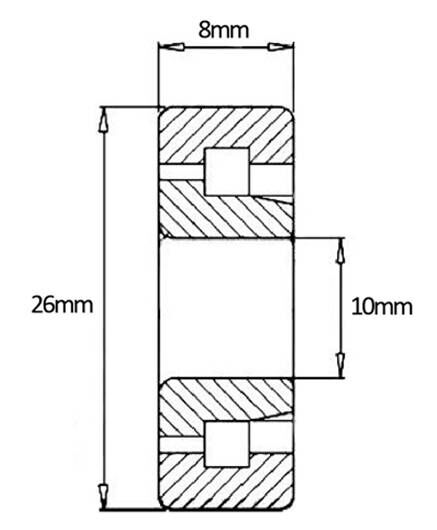

Dimension (Unit : mm)

Application

Deep groove ball bearing 6000 is mainly used for some low speed, low requirements of the environment. Such as low-speed rotating equipment, casters, strollers, toy cars, doors and windows.

Tips: Can a deep groove ball bearing take thrust?

No, a deep groove ball bearing is primarily designed to handle radial loads, which are forces that act perpendicular to the bearing's axis of rotation. Though the deep groove bearing can withstand some axial loads (thrust), single row deep groove roller bearing is not specifically designed for that purpose. For applications with significant thrust loads, it is recommended to use bearings specifically designed to handle axial forces, such as thrust ball bearings or thrust roller bearings.
