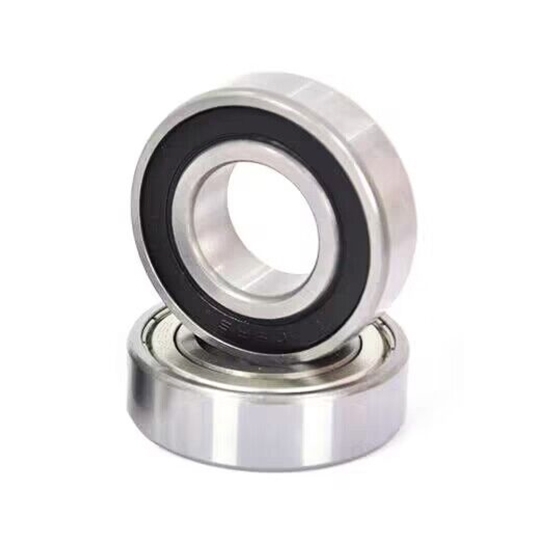

40mm Deep Groove Ball Bearing, Single Row

40 * 90 * 23 mm deep groove ball bearing is a single row type of deep groove ball bearing, which is sealed deep groove ball bearing as well, being the most widely used bearing type in daily life. The 40mm ball bearing of single row deep groove also can operate at high speeds and withstand both radial and axial forces, making itself suitable for different types of machinery and equipment.

Specification

• Model: ATO-6308
• Inner Diameter: 40mm
• Outer Diameter: 90mm
• Width: 23mm
• Bearing Basic Dynamic Load: 40700N
• Bearing Basic Static Load: 24000N
• Bearing Material: Bearing steel

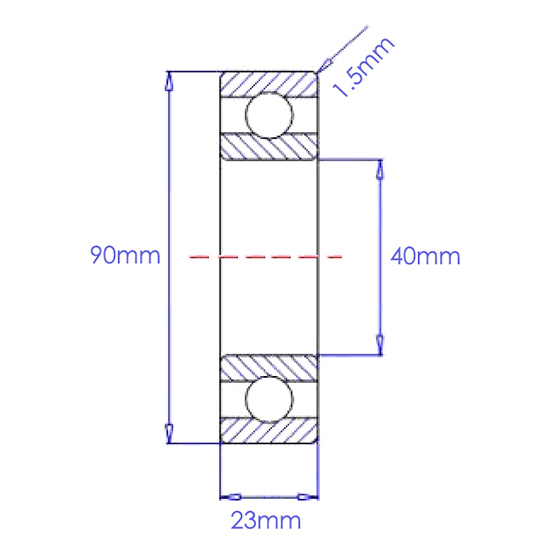

Dimension (unit : mm)

Application

Deep groove ball bearing of single row with their robust design and versatile capabilities, has become indispensable components in a vast array of industries. This deep groove ball bearing type is renowned for its ability to accommodate both radial and axial loads, high-speed operation, and reliability. Meanwhile, this kind of deep groove ball bearing is widely used for many fields because of its simple structure, strong bearing capacity, and easy installation. From automotive to aerospace, industrial machinery to household appliances, single row deep groove ball bearing plays a vital role in ensuring efficient and smooth operation across numerous applications.

Tips: What is a single row deep groove ball bearing?

A single row deep groove ball bearing is a type of rolling-element bearing that consists of an inner ring, an outer ring, a set of steel balls, and a cage，which is also called sealed deep groove ball bearings. It is one of the most common types of deep groove ball bearings used in various applications, including motors, pumps, gearboxes, and other machinery.

The term "single row" refers to the arrangement of the steel deep groove balls in the bearing. In a single row deep groove ball bearing, the balls are arranged in a single row between the inner and outer rings. This design allows for radial load (perpendicular to the shaft) and axial load (parallel to the shaft) to be supported.

The "deep groove" in the name refers to the shape of the raceways on the inner and outer rings. The raceways are curved, forming a deep groove that enables the bearing to accommodate both radial and axial loads. This design also provides high-speed capabilities and low friction.

The cage, typically made of steel or synthetic materials, holds the balls in position and prevents them from rubbing against each other. It also ensures proper spacing between the balls for optimal load distribution.

Single row deep groove ball bearings are available in various sizes and configurations, and they can operate in a wide range of speeds and temperatures. They are known for their simplicity, durability, and versatility, making them suitable for many different industrial and automotive applications.
