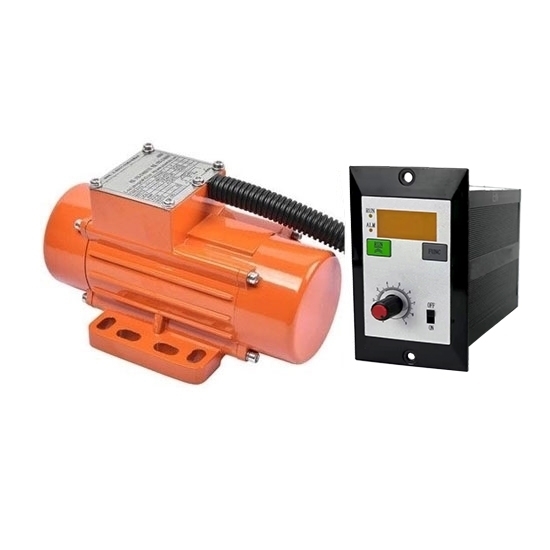

100W 24 Volt DC Brushless Vibrating Electric Motor with Controller

5 out of 5 based on 1 reviews | Write a review
$610.31
High power 100W brushless vibration electric motor with speed controller, operates at 24 volt DC, rated speed 7000rpm and current 3A, suitable for concrete mixer trucks, construction site vibrating rulers, highway snowplows, small vibrating screens, vegetable washers and other equipment.
SKU: ATO-100DCBVM-2414
30-day Returns
Free Shipping
Delivery date: 6-12 days

Buy a small vibration motor online. It is a brushless vibrating electric motor that provides 100W power, 24 volt DC voltage, 7000rpm rated speed, 2.6kN force and 3A current, widely used in the industrial, chemical industry, and food machinery.

Features

  • 100W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
  • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
  • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
  • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
  • Special voltage and speed can be customized, please contact us.

Specifications

Model ATO-100DCBVM-2414
Voltage 24V
Rated Speed 7000rpm
Current 3A
Power 100W
Force 2.6 KN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection Rank IP65 (Dustproof and Waterproof)
Insulation Grade F (The Highest Heat Resistant Temperature is 155°)
Cooling Mode Natural Cooling (IC410)
Working System S1 (Continuous Duty)
Weight 2.6 kg
Dimensions 176mm x 110mm x 99mm
Frame No 14

Notes

  1. +/- 20% voltage tolerance.
  2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.
  3. The brushless DC vibration motor requires a controller to operate. If you have not purchased our controller before, it is recommended to place an order with the controller.

Dimension (Unit: mm)

80W-100W dc brushless vibration motor dimension

Frame No A B C D E F G H I J K L M N O
14 176 110 99 12 68 25 91.5 85 82 63.5 26.5 15 8.5 8.5 16.5


Applications

ATO 100W 24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

DC brushless vibration motor applications

Tips: What does the speed display controller do?

The speed display controller is an integral part of the DC vibration motor system, allowing users to both monitor and control the motor’s speed. It provides a real-time digital display of the motor's rotational speed (RPM), which is essential for ensuring precise and consistent vibration levels in applications like sorting, compaction, or testing. The display gives instant feedback, enabling users to assess whether the motor is running within the desired parameters and make any necessary adjustments.

In addition to displaying speed, the controller typically features controls (such as a dial or buttons) for adjusting the motor’s RPM. By changing the speed, the vibration intensity can be varied, making it versatile for different tasks. The controller ensures that the motor operates at optimal efficiency by allowing fine-tuned speed adjustments while preventing issues like over-speeding or under-performance. This control over speed is crucial for applications where vibration frequency needs to be precisely managed.

Existing reviews of 100W 24 Volt DC Brushless Vibrating Electric Motor with Controller
I am in need of a vibratory motor with a speed controller
I am in need of a vibratory motor with a speed controller for a screening operation. I found this 100W 24V 7000rpm DC brushless vibration motor is suitable for my application. Could you please let me know what I would need to be able to use this on a regular 110V outlet.
From: Santos | Date: 08/04/2024
Was this review helpful? Yes No (0/0)
ATO Responded
In this case, you need to purchase a 24V switching power supply that supports 110V voltage input and outputs 24VDC. We recommend 24V DC 12.5A 300W Switching Power Supply, SKU: ATO-SMPS-300-24.
