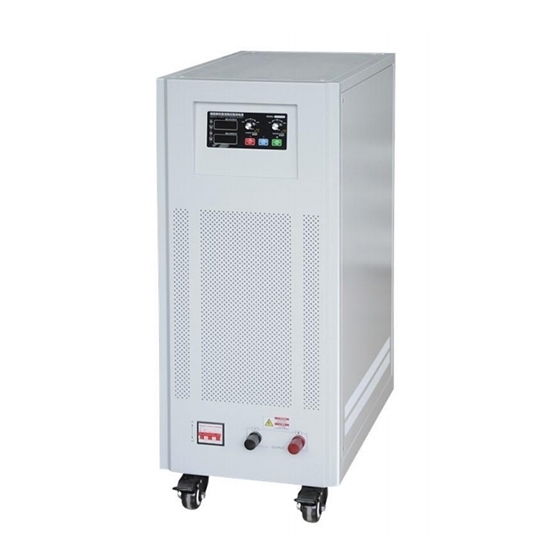

    100A 100V 10000W Variable Linear DC Power Supply

    5 out of 5 based on 1 reviews | Write a review
    $8,581.39
    Shop 0 to 100 volt, 0 to 100 amp variable linear DC power supply with selectable three phase 380V-480V±10% AC input, 3 digit LED display, 10000W power, CC/CV mode automatic switch. This adjustable linear power supply can deliver a variable output voltage or current. Using a variable DC power supply allows digital or analog control of the power supply output by a control system.
    *
    SKU: ATO-DCPS100100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    100A 100V variable linear DC power supply provides an adjustable and regulated power source, allowing users to tailor voltage and current outputs to meet specific electronic device requirements. With digital control features, it offers precise adjustments for voltage and amperage settings, ensuring optimal performance and safety for connected devices.

    Specification

    Model ATO-JK100100S
    Input Voltage 3-phase 380V±10% (other voltage can be customized)
    Output Voltage Range 0-100V
    Output Current Range 0-100A
    Output Power 10000W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.4%+3d
    Voltage Display Resolution 10mV
    Current Display Resolution 10mA
    Efficiency >60%
    Voltage Regulation
    Load Regulation (CV) 1×10-4+8mV
    Line Regulation (CV) 1×10-4+3mV
    Ripple & Noise (P-P) 0.8mV
    Temperature Coefficient 300PPm/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-4+3mV
    Temperature Coefficient 500PPm/℃
    Others
    Protection Over Load and Over Voltage Protection
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Certification CE, RoSH
    Warranty 12 Months
    Size 400 (W) x 650 (H) x 1000 (D) mm
    Weight 250kg
    Package List 1 x DC Power Supply Host, 1 x User Manual

    Tips: What are the advantages of using a linear power supply?

    Linear power supplies offer several advantages, including stable and low-noise output voltage, making them suitable for sensitive electronic devices. They exhibit better regulation, providing a constant output even with varying input voltage or load conditions. Linear power supplies have a simple design, resulting in ease of use and lower electromagnetic interference. They also offer a straightforward circuit topology, making them reliable and robust. Linear power supplies are generally more cost-effective for low-power applications and are preferred in scenarios where precise voltage regulation and minimal output noise are critical, such as in audio equipment and analog electronics. Despite the efficiency limitations compared to switching power supplies, linear power supplies remain popular in applications where their inherent advantages outweigh their drawbacks.

    Existing reviews of 100A 100V 10000W Variable Linear DC Power Supply
    About the Output Capacitance
    We are interested in the 100A 100V 10000W Variable Linear DC Power Supply for testing our BMS board, particularly for short circuit tests. Could you provide information about the output capacitance?
    From: Gloria | Date: 07/05/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If using this unit as a short circuit test, we suggest that it may be better to use a switching power supply. What are the battery voltage range and short circuit current range you want to test? Also, what input voltages are available with this unit?
