10A 100V 1000W Variable Linear DC Power Supply

Write a review

$958.29

Economical price 1000W power rating variable DC power supply with 3 digit LED display, designed to regulate adjustable 0 to 10 amp and 0 to 100 volt outputs. Features high accuracy, low ripple, low noise, This adjustable DC power supply can be used in dual input voltage 110V or 220V AC (+/- 10%). With digital control capabilities, it ensures precision and ease of operation.

Input Voltage *

SKU: ATO-DCPS10010

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

An adjustable linear DC power supply is a regulated unit designed for electronics, providing variable voltage and current outputs. This power source is instrumental in testing and powering various electronic devices. Engineered with precision, it offers adjustable voltage and current settings, enabling users to fine-tune power parameters to suit specific requirements. The regulated nature ensures a stable output regardless of input fluctuations or load variations.

Specification

Model	ATO-JK10010S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-100V
Output Current Range	0-10A
Output Power	1000W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	10mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-5+8mV
Line Regulation (CV)	1×10^-5+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-5+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Detail

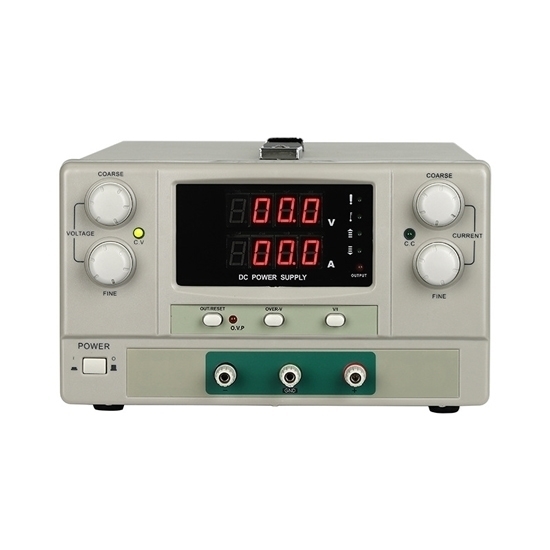

10A 100V variable linear DC power supply detail

Tips: Can I use a variable linear DC power supply for sensitive electronic components?

Yes, you can use a variable linear DC power supply for sensitive electronic components. Linear power supplies provide stable and low-noise output, making them suitable for applications requiring precise voltage regulation and minimal electrical noise. The variable feature allows you to adjust the output voltage to match the requirements of your sensitive components. However, be cautious of potential heat dissipation, as linear power supplies can generate more heat compared to switch-mode power supplies. Ensure the power supply's maximum current and voltage ratings align with the specifications of your components. Additionally, consider features like short-circuit protection to prevent accidental damage. Overall, a well-regulated linear power supply can be a reliable choice for powering sensitive electronic devices.
