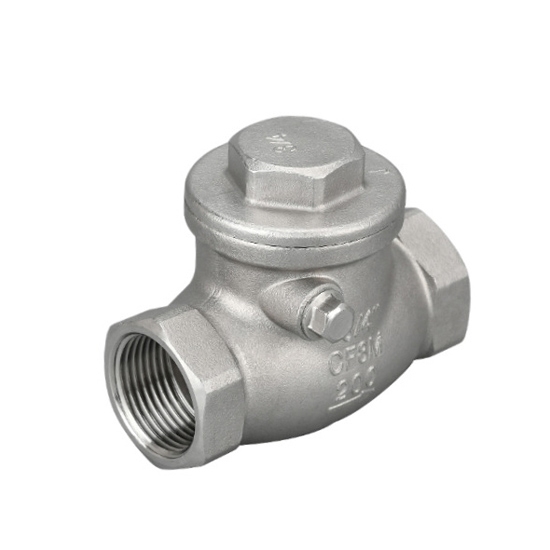

    1" Stainless Steel Swing Check Valve, Horizontal

    $51.61
    Buy a stainless steel swing check valve for regulating the flow of water, oil or gas in pipelines. 1 inch horizontal check valve offers 200 WOG, DN25 and optional BSP/BSPT/NPT thread. 304/316 materials can withstand high temperatures and high pressure.
    *
    *
    SKU: ATO-SSSCV-01
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The provided 304/316 stainless steel swing check valve can resist corrosion, high temperature and high pressure. 1"(DN25) horizontal check valve with 200WOG and BSP/BSPT/NPT thread, suitable for applications where backflow prevention is required.

    Specifications

    • Model: ATO-H14W
    • Check Valve Type: Swing
    • Shape: Horizontal
    • Nominal Diameter: 1 inch (25mm)
    • Working Pressure: 200 WOG
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Thread
    • Thread Standard: BSP, BSPT, NPT
    • Temperature Range: -20°C~300°C
    • Weight: 0.47kg
    • Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

    Details

    Swing check valve dimension

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 DISC CF8/CF8M 1
    3 HANGGER PIN SS304/SS316 1
    4 JOINT GASKET PTRE/RPTFE 1
    5 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    DN D L±1.5 H
    25 24.7 84 49


    Applications

    A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

    Swing check valve applications

    Tips: Advantages of Stainless Steel Swing Check Valves in a Piping System

    Stainless steel swing check valves offer several advantages when used in a piping system, including:

    • Corrosion resistance: Stainless steel is highly resistant to corrosion, making it an ideal material for use in harsh or corrosive environments. Stainless steel swing check valves can withstand exposure to a wide range of chemicals and fluids without corroding, which helps to ensure the integrity and longevity of the valve.
    • High temperature and pressure capability: Stainless steel can withstand high temperatures and pressures, making it suitable for use in a wide range of industrial applications. Stainless steel swing check valves are designed to handle high-pressure systems and high-temperature fluids and gases.
    • Low-pressure drop: Stainless steel swing check valves are designed to operate with minimal pressure drop, which helps to maintain the efficiency of the piping system and minimize energy consumption.
    • Automatic operation: Stainless steel swing check valves operate automatically, without the need for external
      power, which makes them a reliable and efficient option for backflow prevention.
    • Versatility: Stainless steel swing check valves are available in a range of sizes, pressure ratings, and materials to suit different applications and operating conditions, making them a versatile option for a wide range of industrial applications.
    • Easy maintenance: Stainless steel swing check valves are relatively easy to maintain and repair, which helps to reduce downtime and maintenance costs over the life of the valve.
