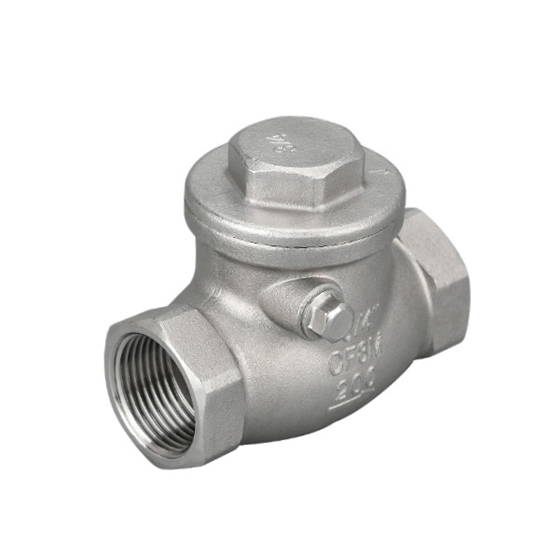

2 inch stainless steel check valve is a horizontal check valve used to regulate the flow of fluid or gas in the pipeline, with DN50, SS304/316, BSP/BSPT/NPT three thread standard. 200WOG swing check valve can withstand high temperature and high pressure, suitable for wastewater treatment plants, oil and gas refineries, and chemical processing facilities.
Specifications
- Model: ATO-H14W
- Check Valve Type: Swing
- Shape: Horizontal
- Nominal Diameter: 2 inch (50mm)
- Working Pressure: 200 WOG
- Product Material: 304/316 Stainless Steel
- Connection Form: Thread
- Thread Standard: BSP, BSPT, NPT
- Temperature Range: -20°C~300°C
- Weight: 1.31kg
- Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid
Details
Main Part Materials |
NO. |
Part Name |
Materials |
QTY |
1 |
BODY |
CF8/CF8M |
1 |
2 |
DISC |
CF8/CF8M |
1 |
3 |
HANGGER PIN |
SS304/SS316 |
1 |
4 |
JOINT GASKET |
PTRE/RPTFE |
1 |
5 |
CAP |
CF8/CF8M |
1 |

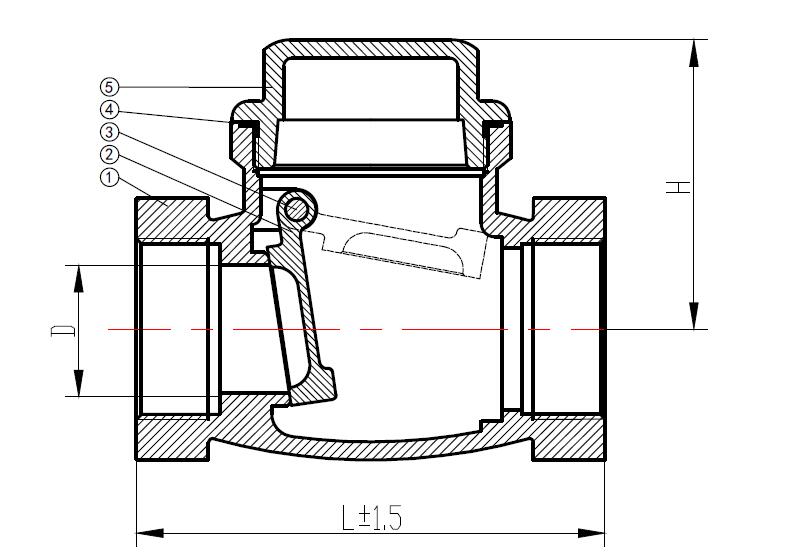

Dimension (Unit: mm) |
DN |
D |
L±1.5 |
H |
50 |
47.6 |
134 |
71 |
Applications
A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.
Tips: Stainless Steel Swing Check Valve Applications in HVAC Systems
Stainless steel swing check valves are commonly used in HVAC (Heating, Ventilation, and Air Conditioning) systems to prevent the backflow of fluids and gases. These valves are typically used in applications such as chilled water systems, hot water systems, and air handling units.
One of the primary advantages of using stainless steel swing check valves in HVAC systems is their corrosion resistance. HVAC systems often use water, which can contain minerals and other impurities that can cause corrosion over time. Stainless steel is highly resistant to corrosion and can withstand the harsh conditions often found in HVAC systems.
Another advantage of stainless steel swing check valves in HVAC systems is their low-pressure drop. These valves are designed to allow for high flow rates while minimizing turbulence and pressure loss. This is important in HVAC systems, where energy efficiency is a key concern. Stainless steel swing check valves are also easy to install and maintain. They typically require minimal maintenance and can be easily accessed for inspection or repair.
