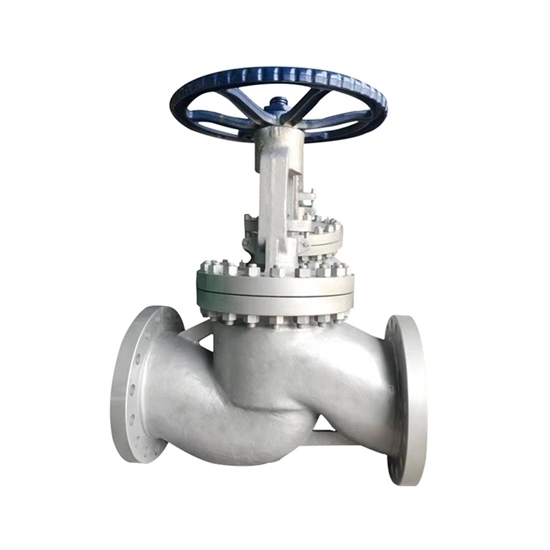

1" Flanged Globe Valve

The performance of flange globe valve is stable. The structure of the globe valve is straight through. The flow direction of 1 inch globe stop valve is one-way flow.

Features:

• Streanline, outside screw and yoke.
• Loose disc, rising stem and handwheel.
• Yoke integral with bonnet, available with gear operator.

Specification:

• Model: ATO-J41H-16/25C-DN25
• Port Size: 1 inch (DN25)
• Material: carbon steel
• Structural Style: straight through form
• Connection Type: flange connection
• Medium: water, oil, steam
• Pressure: 1.6Mpa/2.5Mpa
• Direction of Flow: one way flow
• Drive Mode: manual
• Working Temperature: -29 ℃ ~ 425 ℃
• Net Weight: 11kg

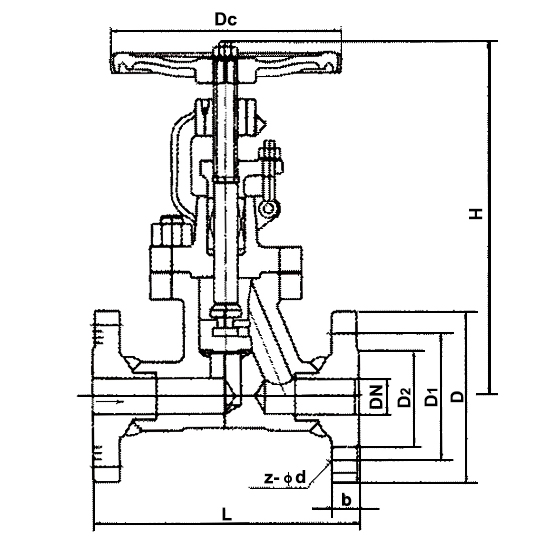

Dimension (Unit: mm)

Tips: Disadvantages of Flanged Globe Valve

• Fluid resistance, open and close when the required force is larger.
• It is not suitable for medium with particles, high viscosity and easy coking.
• Poor adjustment performance.
