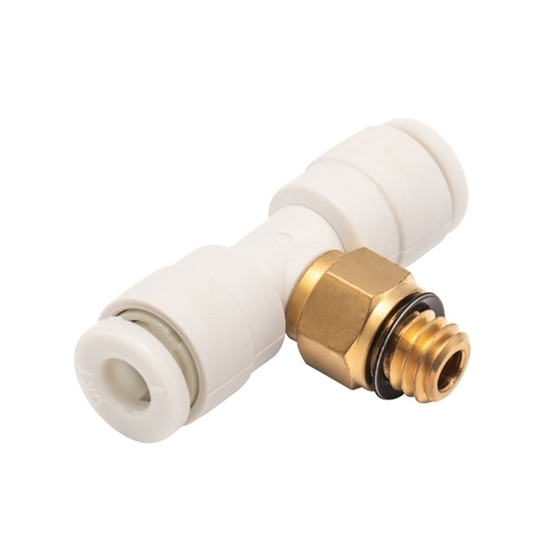

Water Hose Quick Connector, M Type

5 out of 5 based on 5 reviews | Write a review

$6.15

Buy a well-made water hose quick connector online. It is easy to install, and can quickly connect to the end of hoses. Faster connector features 03/04/06 mm input cannula diameters to use for various watering devices and garden accessories.

Input Cannula Diameter *
Output Cannula/Thread Diameter (03) *
Output Cannula/Thread Diameter (04) *
Output Cannula/Thread Diameter (06) *

SKU: ATO-QC-M03

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

M type quick connector adopts a wear-resistant and brass construction for longer service life. No tools are required to connect or detach the quick connect fitting, providing significant advantages to the user. 03/04/06 mm water hose quick connector is suitable for various watering devices such as nozzle, sprayer, sprinkler, etc.

Specifications

Model	ATO-KJT
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ3	ATO-KJT03-M3	2.8
	ATO-KJT03-M5	3.2
	ATO-KJT03-M6	3.4
	ATO-KJT03-01S	7.4
Φ3.2	ATO-KJT23-M3	2.8
	ATO-KJT23-M5	3.2
	ATO-KJT23-M6	3.4
	ATO-KJT23-01S	7.4
Φ4	ATO-KJT04-M3	3.1
	ATO-KJT04-M5	3.5
	ATO-KJT04-M6	3.7
	ATO-KJT04-01S	7.7
Φ6	ATO-KJT06-M5	4.4
	ATO-KJT06-M6	4.6
	ATO-KJT06-01S	7.6

Tips: How to select the right quick connector?

Determine the workpiece tube type of the quick connector: commonly used are straight pipe or hole, threaded, flange tube, progressive expansion tube, pagoda head, turn over a tube, fuel pipe, etc., according to the different tube types to determine the connector type.
Determine the use of the environment: to understand the ambient temperature, humidity and corrosion of the quick connector.
Know the test requirements: blocked or connected, pressure size, ventilation, liquid, over water or dry, manual or pneumatic, automated, etc.
Determine the pipe diameter of the quick connector: the inner diameter and outer diameter program to distinguish, according to the model table to choose the right model on it, such as no standard model, you can contact the staff to customize.
Determine the model specifications reported to the rapid contactor staff to verify the applicability of the specifications model.

Quick Connector Dimensions
