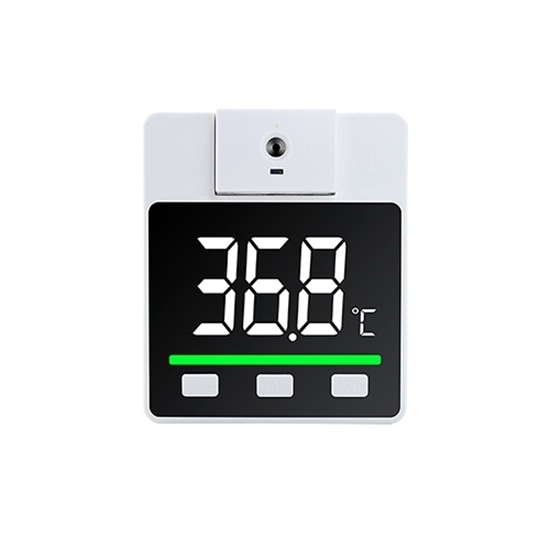

Wall Mounted Digital Infrared Thermometer

Wall mounted digital infrared thermometer with 180°rotatable probe and led display. Work in 10°C~40°C, equipped with abnormal automatic alarm and supports voice broadcast. Non-contact thermometer easy to use.

Specification

Feature

1. Infrared thermometer can auto-sensing fast measurement and adopt laser sensor to realize.
2. Non-contact thermometer with led large screen display, energy saving and environmental protection, clear reading.

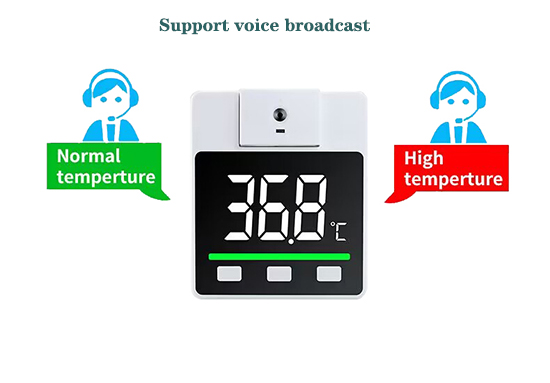

3. The probe of digital infrared thermometer can be rotated 180° to adapt to different usage scenarios, support multi-country and multi-language voice broadcast, which can be customizable.

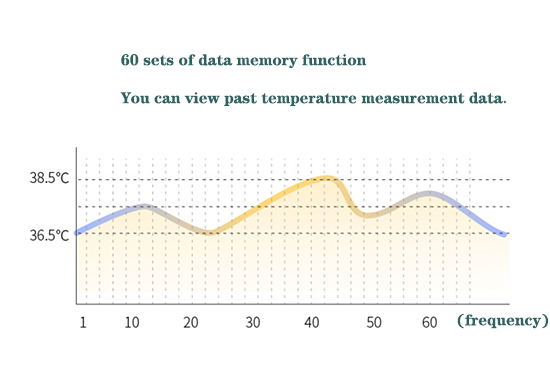

4. One key to witch temperature measurement mode and temperature unit, convenient and fast 60 sets of data memory function.
5. Best infrared thermometer can view past temperature measurement data, flexible installation methods, applicable to various usage scenarios.
6. Infrared laser thermometer can be bracket installation and magnetic adsorption installation.
7. Wall mounted thermometer is suitable for the entrance of various public places, guarding safety, convenient and fast.
8. Operation temperature 10°C~40°C (recommended 15°C~35°C).
9. Infrared laser thermometer support USB charging or battery.

Details

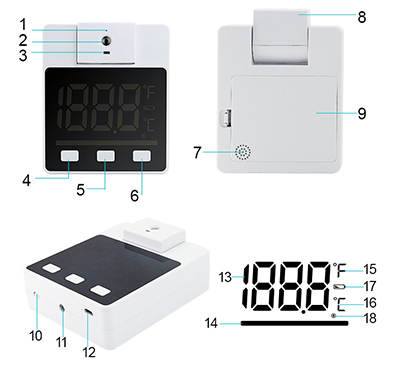

Wall mounted thermometer structure

Tips: What is Infrared thermometer working principle?

1. The infrared thermometer is composed of optical system, photoelectric detector, signal amplifier, signal processing, display output and other parts.
2. The optical system gathers the target infrared radiation energy in its field of view, and the size of the field of view is determined by the optical parts of the thermometer and its position. Infrared energy is focused on a photodetector and converted into a corresponding electrical signal.
3. The signal passes through the amplifier and signal processing circuit, and is converted into the temperature value of the measured target after being corrected according to the algorithm of the internal treatment of the instrument and the emissivity of the target.
4. In addition, the environmental conditions of the target and the thermometer should also be considered, such as the influence of factors such as temperature, atmosphere, pollution and interference on the performance indicators and the correction method.
