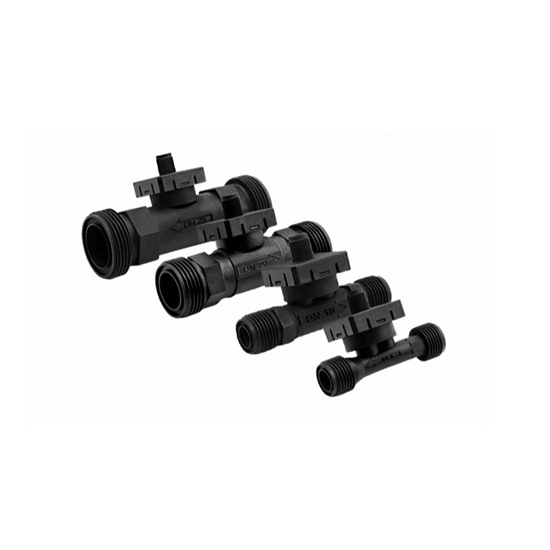

Vortex Flow Sensor, 0.5-150 L/min, DN6/DN10/DN20/DN25

The vortex flow sensor, available in DN6, DN10, DN20, and DN25 sizes, offers measurement ranges from 0.5 to 150 L/min and operates at 11.4~25.2V. It withstands up to 1 MPa pressure and is widely used in water heaters, HVAC systems, heat recovery, and medical fluid detection.

Specification

Feature

• Low pressure loss and contamination resistance: The sensor is designed to operate efficiently even in harsh conditions without significant pressure drop or susceptibility to dirt or impurities.
• Outstanding repeatability and high accuracy: Ensures consistent and precise measurements for reliable performance.
• Vortex measurement principle: Utilizes the Kármán vortex street principle for flow measurement, providing stability and accuracy.
• Insensitive to temperature variations: Maintains accurate flow measurements regardless of changes in temperature.
• Durable construction with no moving parts: Long service life with minimal maintenance requirements due to the absence of internal mechanical components.
• Ideal for OEM applications: Offers high performance, cost-efficiency, and reliability, making it an excellent choice for stringent OEM requirements.

Size (Unit:mm)

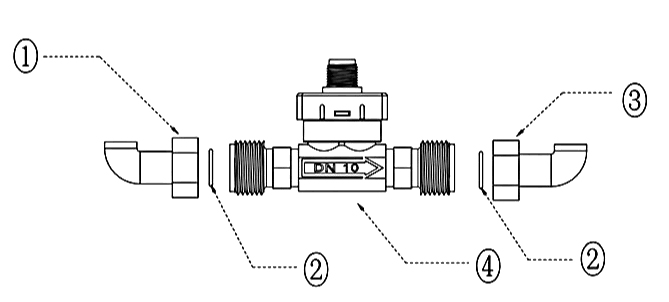

Installation Instructions

Application

Tips: How does the vortex flow sensor measure flow rates?

Vortex flow sensors use the Kamen vortex principle to measure flow. When fluid passes through the sensor's bluff body, alternating vortices are generated downstream. These vortices create pressure fluctuations that are detected by the sensor's internal sensing element. The frequency of these fluctuations is proportional to the flow rate, allowing precise measurement of the fluid's velocity and volume. This design ensures high accuracy and repeatability, making it suitable for a wide range of applications.
