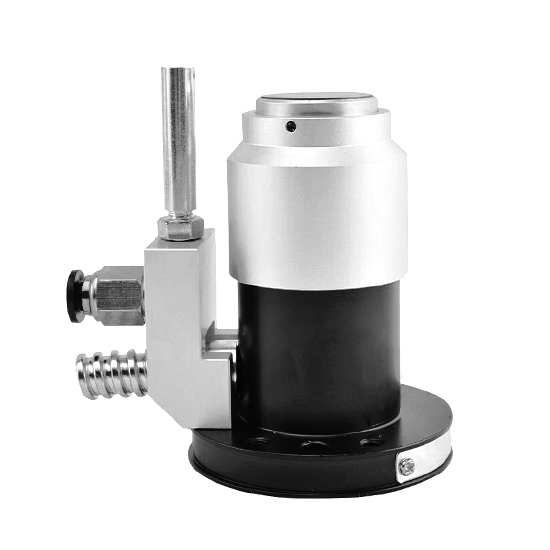

    CNC Tool Setter for Z Axis Setting, Height 65mm

    5 out of 5 based on 1 reviews | Write a review
    $279.37
    Tool setter for CNC machine centers z axis setting has contact surface diameter 20mm, accuracy 0.001mm, 65mm height and tool speed 50-200mm/min. The rated voltage of tool height setter is 24VDC. CNC tool setter has optional contact type NC (4 wire) or NO (6 wire) can be used for machine systems of Siemens, Mitsubishi, Syntec, LNC, Fagor, etc.
    *
    SKU: ATO-TOSE-65
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Tool setter with height 65mm and optional contact type NC (4 wire) or NO (6 wire) can be used for CNC machine centers tool height setting.

    Specification:

    Model ATO-TOSE-GZ66NC ATO-TOSE-GZ66NO
    Shipping weight 1kg
    Height 65mm
    Contact type * NC NO
    Wire 4 wire
    Setting signal:
    1. green-24V
    2. white-setting signal
    Over-travel signal:
    3. red
    4. yellow
    6 wire
    Setting signal:
    1. green-24V
    2. white-setting signal
    3. black- NPN: 0V, PNP: 24V
    4. blue-0V
    Over-travel signal:
    5. red
    6. yellow
    Cable Cable diameter: Ф5mm
    Cable length: 1.5m
    Tension protection sleeve length: 1.0m
    Contact force 2.5N
    Contact material Tungsten steel alloy
    Repetition time 2 million times
    Contact surface diameter 20mm
    Tool setter travel 5.0mm
    Tool speed 50-200mm/min
    Parallelism 0.005/10mm
    Accuracy 0.001mm
    Power supply DC 10-30V, 10-20mA
    Rated voltage DC 24V
    Working temperature -25~+70℃ (-13~+158℉)
    Protection class IP67
    Application system Siemens, Mitsubishi, Syntec, LNC, Fagor, etc.
    Warranty 1 year

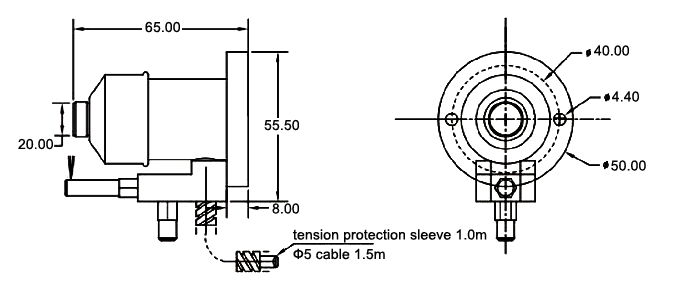

    Dimension (unit: mm):
    CNC tool setter for z axis setting height 65mm dimension
    Wiring diagram:
    CNC tool setter for z axis setting height 65mm wiring diagram
    Tips: How to select the right tool setter?

    1. According to the wiring of the tool setter, a 4 wire setting device is required for a 4 wire tool setter, and a 6 wire CNC machine setting device is required for a 6 wire tool setter. Or according to the control system's tool setting contact type. There are two contact types: normally open (NO) and normally closed (NC).
    2. Select based on the exact diameter of the tool setter contact surface. The diameter of the tool setter contact surface must be larger than the diameter of the tool, generally ≥5mm.
    3. Select according to the distance of the tool from the mounting base. The height of the tool should be at least 3mm different from the height of the tool setter. For example, the distance of the tool from the mounting base is 62mm. When selecting a tool setter, choose the height is 65mm. As for some special ones that do not have suitable height and tool contact surface, customize a tool setter from the manufacturer.

    Basically, an applicable tool setter can be chosen based on the above points. The other parameters such as protection class and accuracy are of course the higher the better. However, the price of a different class is different. It mainly depends on the processing accuracy requirements of the product. If the accuracy requirements are not particularly high, choose a tool setter with a relatively low accuracy is ok.
