Duct Temperature Humidity Sensor/Transmitter with Display, 4-20mA

Write a review

$153.25

Duct temperature and humidity transmitter with LCD display adopts digital temp and humidity sensor AM2305 and convert the air temp and humidity into 4-20mA standard signal. It has dust protection probe and metal filter screen, measuring range from -40 to +100℃, stable and reliable.

SKU: ATO-TAHT-AF3020A

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents

Temperature and humidity transmitter with LCD display adopts digital temp and humidity sensor AM2305, and mounts in duct without air leakage.

Application: Temperature and humidity transmitter is widely used in meteorology, tobacco, chemicals, medical and health, food industry and other occasions that need air temperature and humidity measurement and control.

Specification

Model	ATO-TAHT-AF3020A
Weight	130g
Dimension (LWH)	2458533mm
Output signal	4-20mA
Supply voltage	DC 20-36V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+100℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Power consumption	＜50mA
Response time	8s
Power-on time	3s
Housing material	PC
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH
Product packing list	1ATO-TAHT-AF3020A with 50cm four-core shield wire, 1flange (duct mounted), 2*mounting screw
Wiring	Red: V+, black: GND, yellow: RH (humidity output 4-20mA), white: T (temperature output 4-20mA)

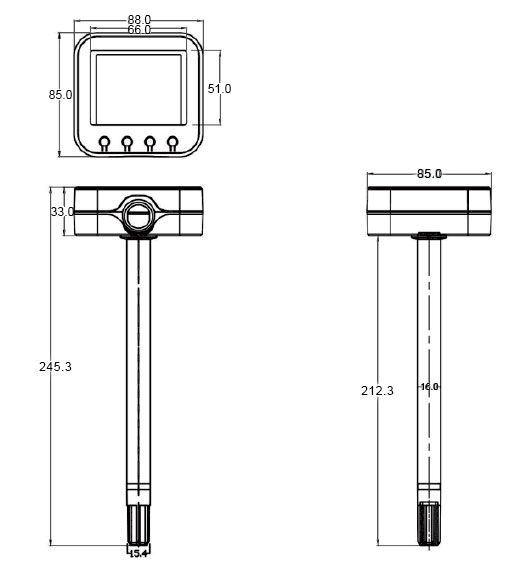

Dimensional drawing (unit: mm):

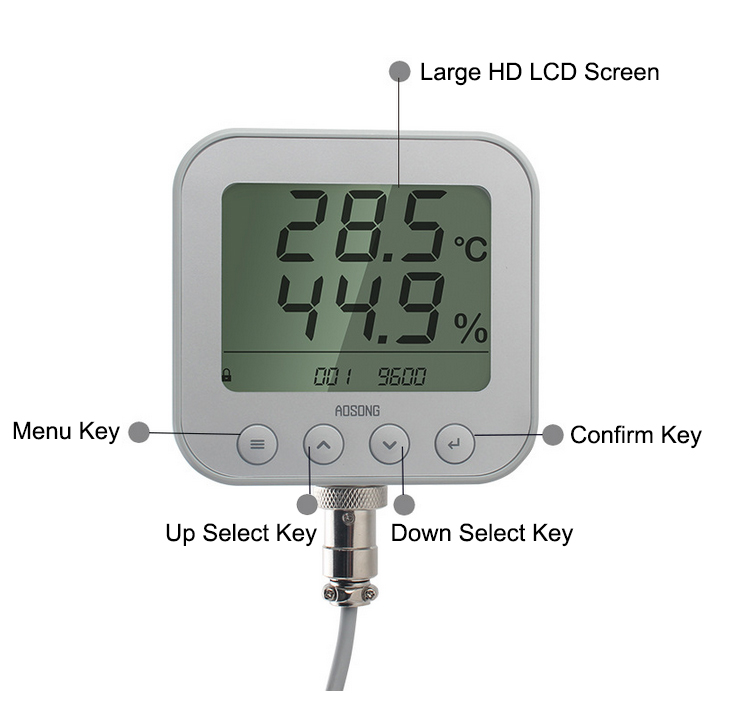

Details

Tips: Advantages of temperature and humidity sensor/transmitter

Temperature and humidity sensor/transmitter is extremely accurate, which can achieve accurate measurement and control of temperature and humidity, so as to ensure product quality, improve production efficiency, save energy, production safety and play other roles.
It can automatically alarm. When the measured value exceeds the upper limit alarm value, the temp and humidity monitoring machine will automatically alarm. In addition, you can also use the mobile phone remote real-time query temperature and humidity values, which is easy to achieve unattended.
Its shell is waterproof and anti-condensation, which can work normally in bad environment.

AF3020A Temperature and Humidity Transmitter User Manual.pdf
