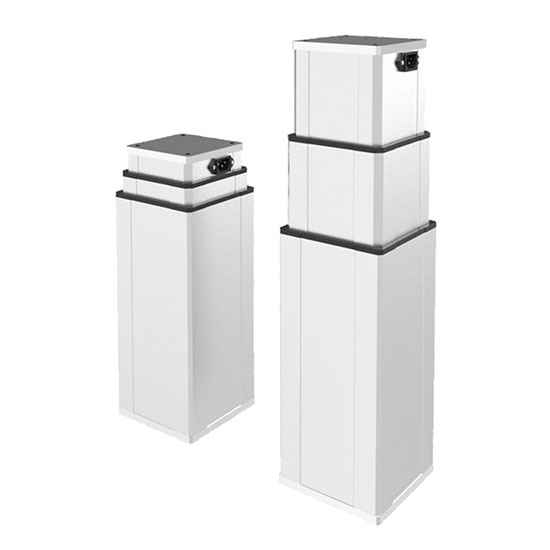

Tatami Electric Lifting Column, 12V/ 24VDC, 2000N

The electric lifting column with 4 mm/ s max. speed at load 2000N, CE certificate. The 3-stage lifting coulumn is a very powerful and versatile control box and controller.

Specification

• Model: ATO-LC-HTJC600-3S
• Rated voltage: 12V/ 24VDC
• Rated speed: 4500 rpm
• Maximum thrust: 2000N
• Maximum pulling force: 500N
• Maximum speed at full load: 4 mm/s (load 2000N)
• IP rating: IP54
• Operating temperature range: -25°C ~ +65°C
• Certificate: CE

Lifting Column Load and Speed Selection

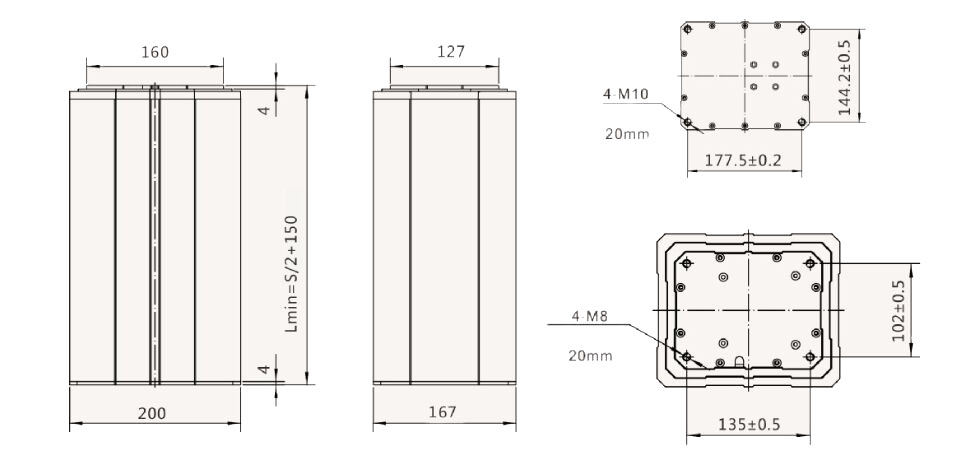

Dimension (mm)

• S: Stroke
• L: Retracted length
• L=stroke/ 2 + 150mm

Lifting Column Stroke and Size Selection

Tips: Tatami Electric Lifting Column Troubleshooting.

1. The remote control does not work
   There are generally two situations when the remote control does not work: First, the battery of the remote control is depleted, and the battery of the remote control needs to be replaced. Second, the remote control is broken or the antenna is loose.
2. The lifting column slides down
   There are generally three solutions to this situation:
   First, judge whether the lifting operation has not been carried out for more than 2 consecutive days? Is it normal after lifting operation? This reminds us that lifting and lowering operations should be performed once a day. Secondly, think about whether the remote control is operated by mistake? In this regard, it is necessary to check the remote control and operate the remote control correctly. Finally, if the lifting column still slides under normal operation, please contact us in time.
3. The lifting column does not rise or does not rise in place
   There are several reasons for this situation: sundries around the column block the lifting column, improper operation of the remote control, tripping of the electric control box, etc. Solution: Clean up the debris, check the remote control, close the switch and try again.
