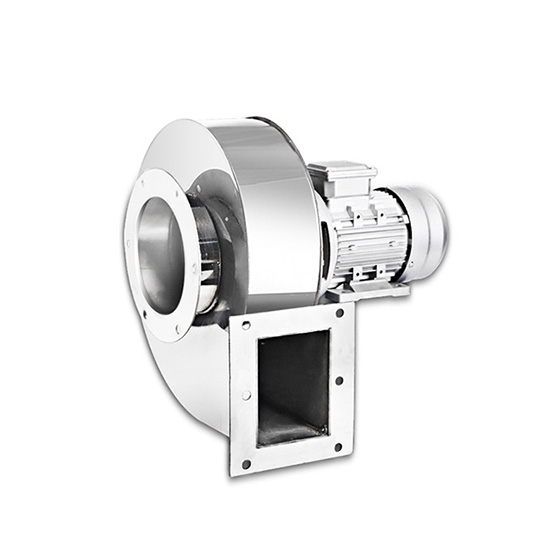

Stainless-Steel Centrifugal Fan, 180W/750W/2200W, 2800 rpm

5 out of 5 based on 1 reviews | Write a review

$448.62

Economical price stainless steel centrifugal fan is made of high-quality stainless steel, which is rust-proof, moisture-proof and anti-oxidation. The power can be selected from 180W to 2200W, the operating speed is up to 2800 rpm, and it supports 220V and 380V voltages, with strong wind and efficient air circulation.

Power *
Voltage *
Voltage *
Voltage *
Voltage *
Voltage *
Voltage *
Voltage *
Voltage *

SKU: ATO-CF-Y547

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview

The fan is mainly composed of motor, impeller, bearing, main shaft and bearing seat. It adopts high-quality plates, full of materials, advanced cutting and accurate molding, smooth and flat surface, beautiful appearance, high hardness and long service life.

Features

The stainless-steel housing is rust-proof, moisture-proof and anti-oxidation, and has a long service life.
The stainless-steel fan adopts a large-diameter air outlet design with high hardness, which can provide high wind pressure and wide-angle suction effect.
Its straight-wing impeller structure is stable, which can ensure stronger wind output.
The pure copper motor of the centrifugal fan has a speed of up to 2800 times/min, which is powerful and stable.
The aluminum alloy fan effectively isolates the heat between the impeller and the motor, improving the overall heat dissipation effect.

Specification

Model	ATO-Y5-47-180	ATO-Y5-47-250	ATO-Y5-47-370	ATO-Y5-47-550	ATO-Y5-47-750	ATO-Y5-47-1100	ATO-Y5-47-1500	ATO-Y5-47-2200
Power (W)	180	250	370	550	750	1100	1500	2200
Voltage (V)	220/380						380
Rotating speed	2800 (r/min)
Frequency (Hz)	50
Air volume (m³/h)	650	860	1100	1450	1810	2250	2800	3100
Total pressure (Pa)	510	580	650	680	790	940	1140	1280

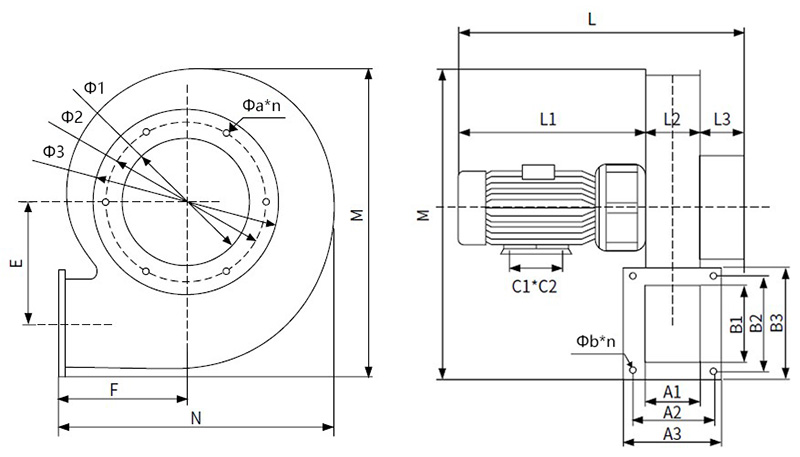

Dimension (mm)

Model	Air outlet flange size							Air outlet flange size
Model	A1	A2	A3	B1	B2	B3	Φb*n	Φ1	Φ2	Φ3	Φa*n
ATO-Y5-47-180	60	92	138	110	150	176	10*4	108	146	166	10*6
ATO-Y5-47-250	62	93	139	121	160	186	11*4	128	180	207	11*6
ATO-Y5-47-370	78	109	155	121	160	186	11*4	128	180	207	11*6
ATO-Y5-47-550	85	116	165	136	176	202	11*4	150	200	224	11*6
ATO-Y5-47-750	102	133	179	136	176	202	11*6	150	200	224	11*6
ATO-Y5-47-1100	120	151	197	156	196	222	11*6	160	200	228	11*6
ATO-Y5-47-1500	131	162	208	176	216	242	11*6	160	200	228	11*6
ATO-Y5-47-2200	130	161	206	206	246	272	11*6	186	230	254	11*6

Model	Overall dimension
Model	C1	C2	L1	L2	L3	L	M	N	E	F
ATO-Y5-47-180	70	90	192	64	41	297	325	281	107	131
ATO-Y5-47-250	80	100	220	67	47	334	370	320	127	148
ATO-Y5-47-370	80	100	220	83	47	350	370	320	127	148
ATO-Y5-47-550	90	112	275	90	43	408	420	364	148	167
ATO-Y5-47-750	90	112	275	108	43	426	420	364	148	167
ATO-Y5-47-1100	100	125	300	125	44	467	470	408	166	185
ATO-Y5-47-1500	100	140	325	135	42	502	506	438	176	202
ATO-Y5-47-2200	125	140	345	135	45	525	549	478	186	202

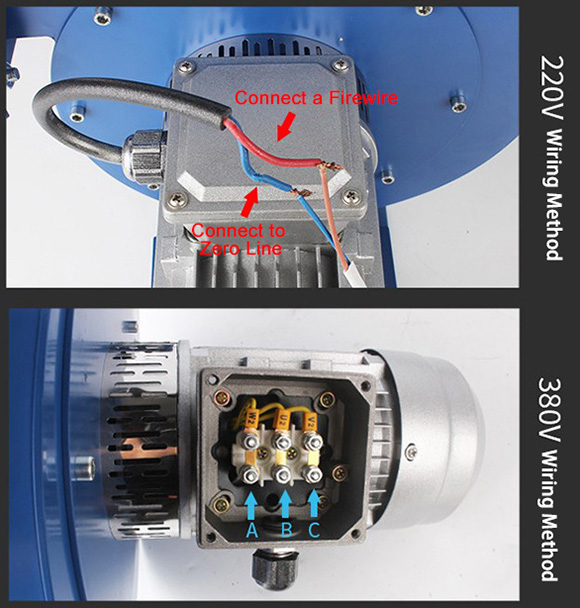

Wiring

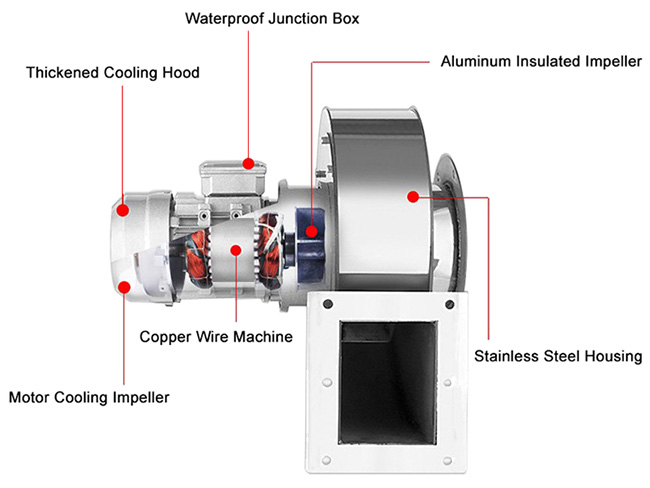

Detail

Tips: Advantages of stainless-steel centrifugal fans

The stainless-steel casing is rust-proof, moisture-proof and anti-oxidation, and can operate stably for a long time in a humid or corrosive environment, while conventional centrifugal fans usually use iron or carbon steel, which is prone to rust and corrosion.
Stainless steel centrifugal fans use large-diameter air inlets and straight-wing impellers to ensure higher wind pressure and wider-angle suction effects. Compared with conventional fans, the wind force is more stable and the coverage is wider.
Aluminum alloy fans effectively isolate the heat between the impeller and the motor, improve the heat dissipation effect, and maintain long-term efficient operation; conventional fans have weak heat dissipation effects and are prone to overheating when running for a long time.
Stainless steel materials are wear-resistant and corrosion-resistant. Combined with efficient heat dissipation design and pure copper motors, the overall service life is longer; conventional fans are usually short-lived due to material and heat dissipation limitations.
