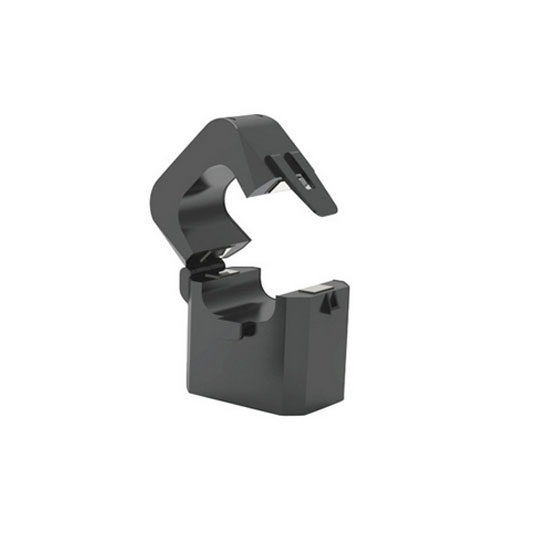

Split Core Current Transformer, 500/5A

A compact split core current transformer with a current ratio of 500/5A, safe enclosure, high flame retardant protection, can be easily installed on existing power lines without disconnecting lines or interrupting service.

Specification

• Model: ATO-SCT-CTKD36-500
• Current Ratio: 500/5A
• Accuracy Class: 0.5
• Working Frequency: 50/60Hz
• Measuring Range: 10%ln- 130%ln
• Rated Output: 0.333V(AC) or 0-500mA
• Ratio Difference: ≤±1.0%
• Phase Difference: ≤ soil 10 points
• Dielectric Strength: 2.5kV/1mA/1min
• Insulation Resistance: DC500V/1000mΩ/min
• Shell: ABS, Flame retardant grade 94-V0
• Skeleton: PBT
• Iron Core: Silicon steel
• Internal Structure: Buckle
• Construction Plan: Cable ties fixed
• Operating Temperature: -25°C~75°C
• Ambient Humidity: ≤85%
• Wiring: 1.5m Red and black wire

500A Split Core Current Transformer Dimension

Tips: What is the rated capacity of split core current transformer?

Rated capacity: The apparent power consumed by the rated secondary current through the secondary rated load. The rated capacity can be expressed in terms of apparent power V.A, or in terms of secondary rated load impedance Ω.
