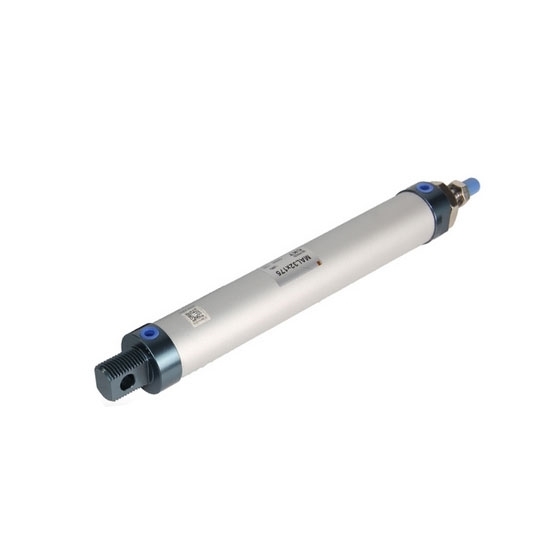

Small Pneumatic Cylinder, 20mm Bore, 300mm Stroke

5 out of 5 based on 1 reviews | Write a review

$101.98

Single acting small pneumatic cylinder stroke 300mm (11.81 inch), bore size 20mm (0.79), high temperature resistance up to 70℃, high working efficiency, the mini cylinder is compact in size and tightly connected.

Bore X Stroke *

SKU: ATO-PC-20300

Qty:

Overview

Small pneumatic cylinder adopts high-precision aluminum alloy cylinder body, high strength, no shape, no leakage, good corrosion resistance, long service life, piston rod with external thread and internal thread, good running performance.

Specification

Model: ATO-PC-CMAL
Bore Size: 20mm
Stroke: 300mm
Use Fluid: Air
Action Mode: Single acting
Working Pressure Range: 0.2 MPa ~ 1.0 MPa (28 ~ 145 psi)
Guaranteed Pressure Resistance: 1.5 MPa (215 psi)
Ambient & Fluid Temperature: -10~+60°C
Buffer: Cushioning on both sides
Pipe Diameter: PT 1/4
Stroke Length Tolerance: 0~150^+1.0₀
Use Piston Velocity: 50~500mm/s
Certificate: CE

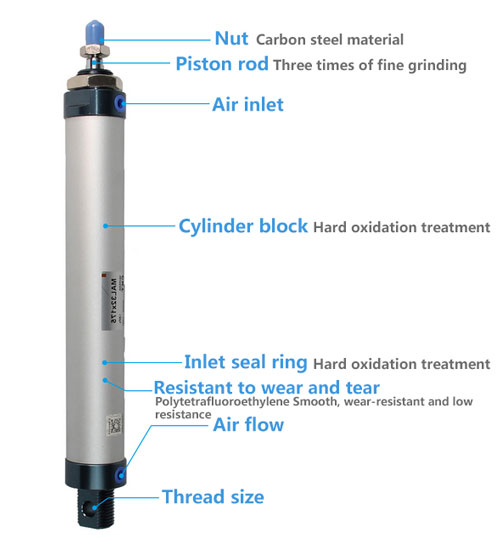

Small Pneumatic Cylinder Detail

Small pneumatic cylinder detail

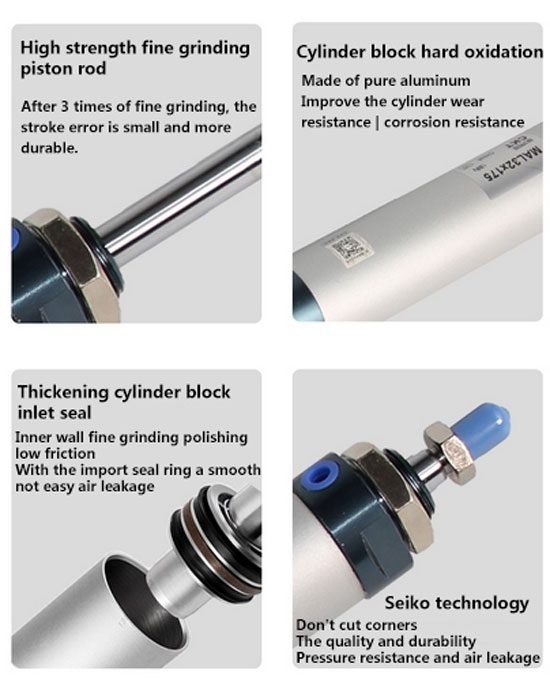

Single acting small pneumatic cylinder

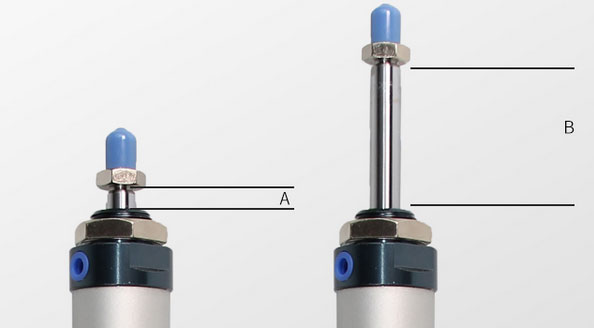

Tips: How to measure cylinder stroke?

Pneumatic cylinder stroke

Push the cylinder piston to the bottom volume data A
Press all cylinder pistons out of measurement data B
The value obtained by B-A is the stroke of the cylinder)

Existing reviews of Small Pneumatic Cylinder, 20mm Bore, 300mm Stroke

Small pneumatic cylinder good quality and price

Small cylinders are well made with smooth action and good machining/finish. Useful accessories and rod ends are included, which may save you a few dollars if you don't already have them, and are worth every penny.

From: rayparker | Date: 25/10/2022
