    Shear Beam Load Cell, 1 ton/2 ton/5 ton/10 ton/20 ton to 30 ton

    Shear Beam Load Cell, 1 ton/2 ton/5 ton/10 ton/20 ton to 30 ton

    5 out of 5 based on 2 reviews | Write a review
    $357.14

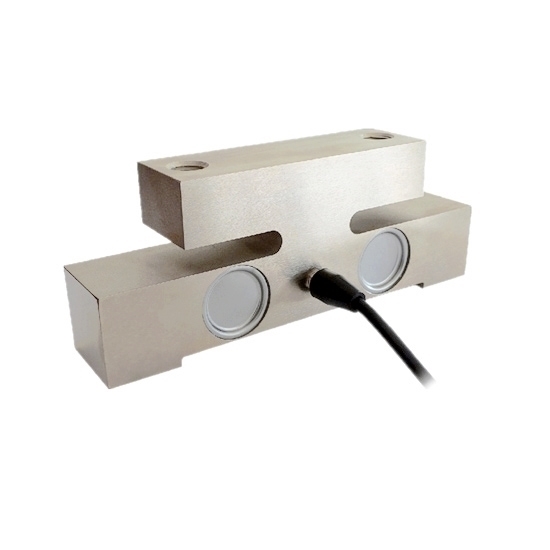

    Shear beam load cell can bear both tension and pressure, with high accuracy, easy to install, easy to use. Strain gauge load cell can has customizable working temperature 200℃ (392℉). Shear beam load cell can be applied for vehicle-specific scales, bridge crane scales, vehicle wheel force or axial force measurement.
    *
    *
    SKU: ATO-LC-SB02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Shear beam load cells have capacity range from 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton to 30 ton. Load cell capacity can be customized according to customer requirements.
    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 0~±10V, or 4-20mA.

    Specification:

    Model ATO-LCB-TJH-6C
    Shipping weight 1.1~5kg
    Capacity range * 1 ton~30 ton
    Matched Display Controller ATO-TY5DA3
    Accuracy 0.02~0.05%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.02%F.S/30min
    Zero output ±1%F.S
    Temperature effect on zero ±0.02%F.S/10℃
    Temperature effect on output ±0.02%F.S/10℃
    Operating temperature -20℃~+65℃ (-4℉~+149℉)
    Input impedance 750±15Ω
    Output impedance 700±5Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 10V
    Material Alloy steel
    Protection class IP67
    Cable length 3m (＜5 ton), 6m (≥5 ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

    Shear beam load cell dimension (*bottom plate need to be purchased separately):

    Capacity Dimension (mm)
    A B C D E F G H1 H2 Φ M
    1~5 ton 220 140 110 186 45 70 100 25 110 Φ13 M16
    10 ton 240 180 120 192 50 128 180 41 134 Φ22 M20
    20~30 ton 240 180 120 192 56 128 180 41 143 Φ22 M20

    Shear beam load cell 1 ton to 30 ton dimensional drawing
    Tips

    Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells
    Weighbridge load cells is a device used to measure force. It works by using a spring or other form of elastomer to withstand pressure. When an object is placed on the floor scale, it compresses the spring, thereby changing the spring's force. Deformation amount. This change in deformation can be converted into an electrical signal through a measuring device, which is then amplified and processed through a circuit to finally obtain the weight of the object. This type of equipment is usually used in industrial environments such as logistics, warehousing, construction, etc.

    Existing reviews of Shear Beam Load Cell, 1 ton/2 ton/5 ton/10 ton/20 ton to 30 ton
    I'm wondering if your load cell is affected by magnetic fields?
    I'm wondering if your load cell is affected by magnetic fields?
    From: Tiffyy | Date: 30/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the output voltage signal of the Load Cell will be affected by the magnetic field, it is proportional to strength of the magnetic field.
    Shear beam load cell accessories
    Does your shear beam load cell come with the wiring components? And does it include an amplifier with it?
    From: Jersey | Date: 01/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    After purchasing one ATO shear beam load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4 -20mA. We provide both transmitter and digital panel meter, but needs to order separetly.
