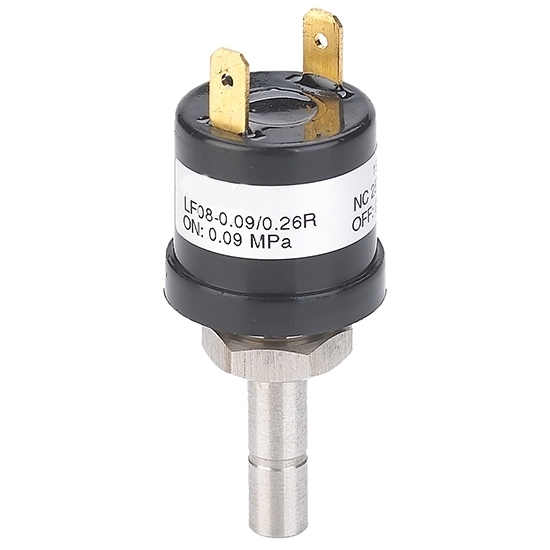

Air Pressure Switch, 0.2 to 45 Bar

$59.52

Cheap price air pressure switch online for sale, with NO/ NC/ NO+NC three contact forms can be chosen, 0.2-6 bar/ 6-10 bar/ 11-20 bar/ 21-30 bar/ 31-45 bar for selection, 10-30VDC pressure port. It is widely used in the fields of petroleum, chemical industry, electric power, water supply and other fields to measure and control the gauge pressure.

Contact Form *
Base Material *
Connection *
Electrical Connection *

SKU: ATO-PS-LF08

This product has a minimum quantity of 2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Mechanical pressure switch with 5000 psi burst pressure, 6.35*0.8, 4.8*0.8, 18AWG wire leads electrical connections and 1/8 NPT, 1/4 NPT, G1/8, G1/4, 1/4 copper tube connection threads.

Specification

Model	ATO-PS-LF08
Media	Air, water, motor oils, transmission oils, hydrocarbon media, refrigeration fluid
Pressure range/ tolerance/ proof pressure	Pressure range	Tolerance	Proof pressure
	0.2~6 bar (low pressure)	±0.5 bar	15 bar
	6~10 bar	±0.7 bar	35 bar
	11~20bar	±0.1 bar	45 bar
	21~30 bar	±1.5 bar
	31~45 bar	±1.5 bar
Contact forms	NO/ NC/ NO+NC
Base material	Brass/ plated steel
Burst pressure	5000 psi
Connection thread	1/8 NPT, 1/4 NPT, G1/8, G1/4, 1/4 copper tube
Electrical connections	6.350.8, 4.80.8, 18AWG wire leads
Operating temperature range	Environment temperature: low pressure: -30~65℃; High pressure: -35~120℃; Medium temperature: -50~120℃
Switch type	SPST (NC OR NO); SPDT
Electric rating	120VAC 6FLA, 40.2LRA; 240VAC 4FLA, 26LRA; 120/ 240VAC 375VA; 36VDC 3A
Endurance	100000
Pressure port	10-30VDC
Certificate	CE, RoHS, REACH
Warranty	12 months

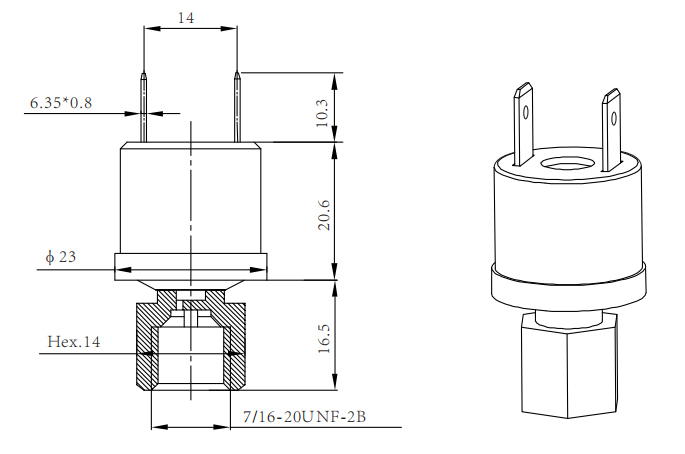

Dimensions (mm)

Tips: The features of Pressure Switch.
The main types of pressure switches include NO and NC. The main features are:
1. It adopts inch pipe thread quick joint or copper pipe welding type installation structure, which is flexible in installation and convenient to use, without special installation and fixation.
2. The plug-in wire type connection method can be selected by the user arbitrarily.
3. The sealed stainless steel sensor is safe and reliable.
4. The pressure range can be manufactured according to the pressure value arbitrarily selected by the user.
