This 40/50/ 60 meter Bluetooth laser distance meter has enhanced measurement functions including area, volume, perimeter and collinearity measurements. Its accuracy is maintained at ± (2mm+d*1/10,000) for professional tasks. The measure distance device includes an automatic laser cut-off after 20 seconds and an automatic shut-off after 150 seconds to save energy. Weighing only 65 grams, it is small and portable, fitting easily into a pocket for field work and everyday use.
Specification
Model |
ATO-SW-24A |
ATO-SW-25A |
ATO-SW-26A |
Maximum Measurng Distance |
0.05-40m |
0.05m-50m |
0.05-60m |
Precision |
±(2mm+d*1/10000)* |
Continuous Measurement |
±90° |
MMetope Area Measurement |
Yes |
Area/Volume Measurement |
Yes |
Perimeter Measurement |
Yes |
Pythagorean Measurement |
Yes |
Min/Max Value |
Yes |
Laser Level |
Ⅱ |
Laser Type |
630-670nm, <1mW |
Automatically Cut off Laser |
20s (single measurement) |
Auto Power-off |
150s |
Battery |
3.7V 370mAh lithium battery |
Charging Specification |
DC5V 0.35A |
Full Charge Measurement Times |
3500 times for single measurement |
Storage Temperature |
-20℃~60℃ |
Working Temperature |
0℃~40℃ |
Storage Humidity |
20%-80%RH |
Dimension |
80*37*20mm |
Net Weight |
65g |
NOTE: "D" indicates the actual distance.
** In harsh environment, such as: strong sunlight, excessivelyfluctuated ambient temperature, weak reflection effect of theobject's surface and the low battery, a large error will occur inmeasurement results, so a reflecting plate is needed.
Features
- Low aberration optical lens can significantly reduce the impact of ambient light, to 99.9% repeatable measurement stability.
- One-piece mirror display, the current measurement distance before/after the benchmark, power, Bluetooth connection status, etc. know it like the back of your hand.
- ST STEI quick calculation chip can almost instantly complete the data operation, 0.1s measurement response speed.
- Minimalist style, operation without complex settings, interactive experience, a hand to hold.
- Type-C interface can be recharged to accelerate, 370mAh lithium battery life is more durable, full power can be measured about 8000 times
- Portable distance meter body is only 20mm thickness, 65g weight, small and exquisite novel design just for you will be elegant and easy to pinpoint the proportion.
Details

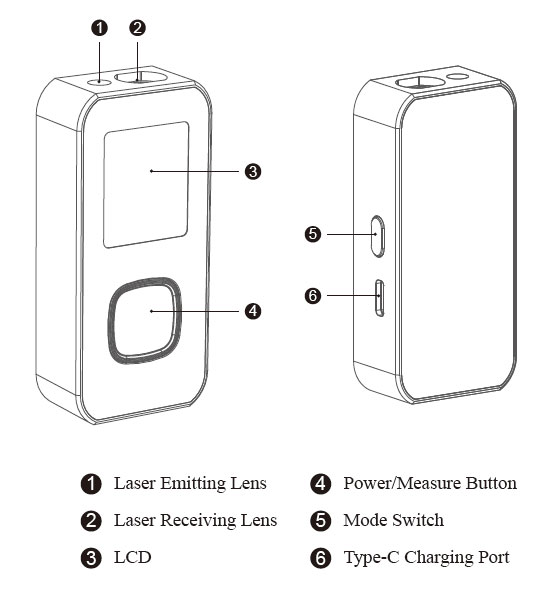

Display

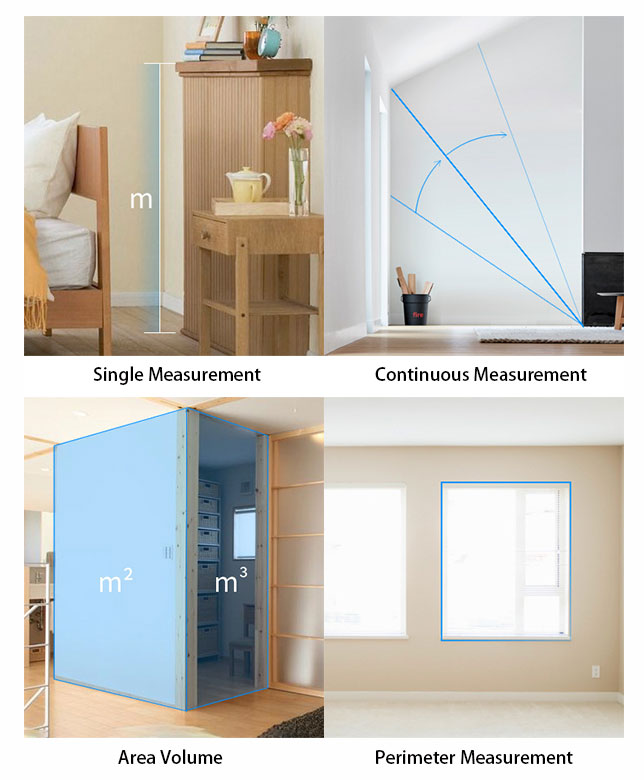

Measurement Methods
Tips: What is the Bluetooth function of the laser distance meter for?
The Bluetooth function allows the handheld laser distance meter to connect wirelessly to a smartphone or tablet, and users can easily export measurement data to their mobile device via the accompanying APP. This allows you to save, analyze and share measurements in real time, greatly improving your work efficiency, and is particularly suitable for situations where you need to quickly record or share data with your team.
