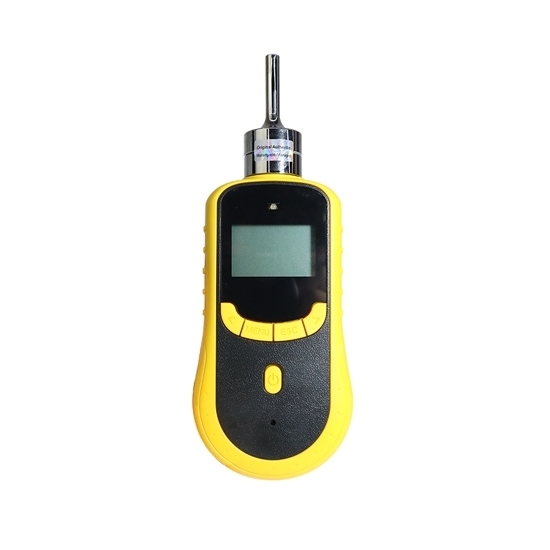

Portable Ethylene (C2H4) Gas Detector, 0 to 10/20/100/500/1000 ppm

Low cost handheld gas detector provides C2H4 ethylene gas monitoring with high accuracy sensor, LCD display, easy readout, small & portable design, convenient to carry.

Specification

• Model: GD200-C2H4
• Gas: Ethylene C₂H₄
• Sampling: With internal sampling pump, flow rate is up to 1L/min
• Data logging: Data logging with adjustable interval, and available for data downloading to PC through USB cable.
• Measure Range: 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm
• Resolution: 0.001ppm(0-10/20ppm), 0.01ppm (0-50ppm), 0.1ppm (0-100ppm), 1ppm (0-500/1000/2000ppm)
• Precision: ≤±2%F.S. (higher precision is available)
• Response Time: ≤10S
• Zero Shift: ≤±1%（F.S./year）
• Display: LCD dot matrix display, with display of gas type, real time gas concentration, battery power, time, gas unit.
• Temperature: -20℃～50℃
• Humidity: 0-95%RH (non-condensing)
• Explosion-Proof: ExibllCT4
• Degree of Protection: IP65
• Alarm: Sound: 85dB, Light: LED, low alarm: blue, high alarm: red, Vibration: the detector will vibrate when powered on (Alarm point is settable according to customer requirement.)
• Battery: 3.6V 2300mAh lithium polymer rechargeable battery, operate time is about 12h continuously, charging time: 4-6h
• Dimension: 205x75x32mm
• Weight: 300g
• Approval: CE, CNEX explosion proof certificate, CMC (China Metrology Certification)
• Warranty: 12 months
• Extension Probe: About 480mm (Total Length), About 300mm (Probe Head)

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Details

Features

Fast response & high accuracy

• With internal sampling pump, response time ≤30s.
• Using world top brand sensors, high precision, the detection result is approved by the third testing organization.

Comprehensive functions

• Gas concentration unit PPM and mg/m3 can be shifted by one press.
• With Self-calibration and zero calibration functions, making the detection more accurate and reliable.
  One press to restore factory setting, free from the bother of mis-operation.

Alarm mode

• Alarm with light, sound and vibration, ensuring the safety of the users.
• Alarm point is settable according to the specific requirements.

Data logging

• Storage capacity of over 100000 sets, the historical detected data can be read on the detector quickly.
• High-speed data transmission by USB, available for data downloading to PC.

Long operation time

• High capacity of lithium polymer rechargeable battery, for toxic gas: 14h continuously. For combustible gas: 10h continuously.

High quality case

• Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.
• IP65 protection degree, water-proof, dust-proof, explosion-proof.

Application

Tips: Why you need ATO gas detectors?

ATO portable gas detectors can be widely used in natural gas, petroleum, chemical, metallurgical coking and other industries to detect gas or toxic gas production and use sites, as well as gas storage and transmission and distribution. A must-have safety instrument for inspection maintenance personnel.
