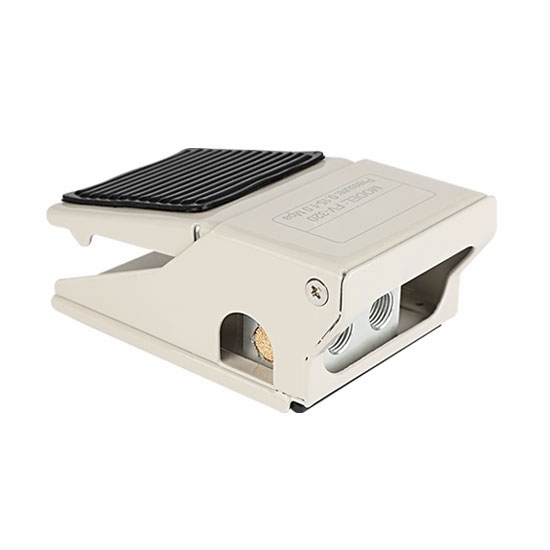

Pneumatic Foot Pedal, 3 Way 2 Position

The pneumatic air foot pedal is made of high-quality aluminum alloy, which is resistant to high pressure and does not rust surface polishing treatment, no burrs and not easy to leak, widely used in automobiles, automobiles, and various pneumatic systems.

Specification

• Model: ATO-FV320
• Working Medium: Air
• Action Mode: Foot control direct action
• Port Size: PT 1/8
• Number of Positions: 3 Way 2 position
• Operating Pressure Range: 0~0.8 MPa (0~114 psi)
• Pressure Resistance: 1.5 MPa (215 psi)
• Working Temperature: -20~70℃
• Material: Aluminum alloy
• Weight: 490g

Features

• Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
• Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
• The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
• Bold spring, good quality and durable, not easy to rust.

3 Way 2 Position Pneumatic Foot Pedal Dimension

Tips: What is a pneumatic foot pedal?

Pneumatic foot pedals are often used in wet environments. Instead of using electricity, the foot pedal is compressed by "blowing" a stream of air through some PVC tubing to an air switch. The activation of the air switch will operate the device to which the switch is connected.

The main reason for using a pneumatic foot pedal is to keep the user away from electricity. In a humid environment, this is extremely important for the safety of the user.
