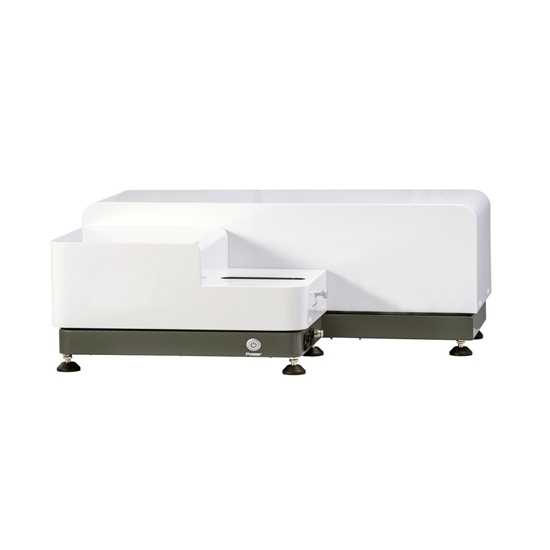

Laser Diffraction Particle Size Analyzer, 0.1μm~800μm

ATO laser diffraction particle size analyzer uses a highly stable, high-power fiber output laser. The excellent configuration gives it super stability. The fully enclosed design ensures that the particle size analyzer can be tested in complex environments for a long time.

Specification

• Model: ATO-BOS2020-L
• Measuring Range: 0.1μm~800μm
• Number of Detector Channels: 76
• Accuracy Error: <1%
• Repeatability Error: <1%
• Feeding Method: Mechanical stepless speed-adjustable vibration feeding, software control
• Oil-Free Silent Air Compressor: With dust filtering function to ensure test accuracy
• Freeze Dryer: Filter moisture in the air to ensure the dispersion effect
• Misoperation protection: Prepare for misoperation self-protection function and will not respond to misoperation
• Laser Parameters: Imported fiber output high-power laser λ= 650nm, p>20mW
• Dispersion Method: High-pressure air dispersion
• Operation Mode: Software fully automatic operation
• Optical Path Alignment: Automatic optical path calibration
• Test Speed: <1min/time (Excluding sample dispersion time)
• Dimension: 980mm*410mm*450mm
• Weight: 35Kg

Software Function

• Analysis Modes: Including free distribution, R-R distribution, lognormal distribution, classification statistical mode by mesh, etc., to meet the requirements of different industries for the particle size statistics of the tested samples.
• Statistical Method: Volume distribution and quantity distribution to meet the different statistical methods of particle size distribution in different industries.
• Statistical Comparison: Statistical comparative analysis can be performed on multiple test results, and the differences in test results between different batches of samples, samples before and after processing, and at different times can be clearly compared, which has strong practical significance for quality control of industrial raw materials.
• DIY Template: Users can customize the data to be displayed, calculate the percentage based on particle size, calculate the particle size based on the percentage, or calculate the percentage based on the particle size interval to meet the characterization methods of particle size testing in different industries. Distance, consistency, interval accumulation, etc.
• Test Report: The test report can be exported to various forms of documents such as Word, Excel, Pictures (Bmp), and Text, allowing you to view test reports on any occasion and quote test results in scientific research articles.
• Multi-language Support: Chinese and English language interface support, other language interfaces can also be embedded according to user requirements.
• Intelligent Operation Mode: truly fully automatic operation without human intervention, without interference from human factors. You only need to follow the prompts to add the sample to be tested, and the repeatability of the test results is better.

Particle Size Analyzer Workflow Diagram

Dry Inspection

Air is used as the dispersion medium, and the high-precision feeding device and powder injection pump are used to ensure that the sample is fully dispersed. Suitable for testing dry powder materials, especially powders that are prone to chemical reactions with water and easy to change shape in liquids.

Tips: What is a particle size analyzer?

A particle size analyzer is a scientific instrument used to measure and characterize the size distribution of particles within a given sample. It plays a crucial role in various industries, including pharmaceuticals, food, environmental science, and materials research.

These analyzers employ different techniques, such as laser diffraction, dynamic light scattering, or sedimentation, to determine the size of particles in a sample. By measuring the range of particle sizes, from nanometers to millimeters, they provide valuable information about the sample's physical properties. This data can help researchers and industries optimize processes, ensure product quality, and comply with regulatory standards.

Particle size analysis is vital for diverse applications, from designing drug formulations with consistent performance to monitoring air quality by measuring particulate matter. In summary, particle size analyzers are essential tools for understanding and controlling particle characteristics in a wide array of scientific and industrial contexts.
