Paperless Recorder 1/4/8/12/18 Channel Output RS485

5 out of 5 based on 3 reviews | Write a review

$556.24

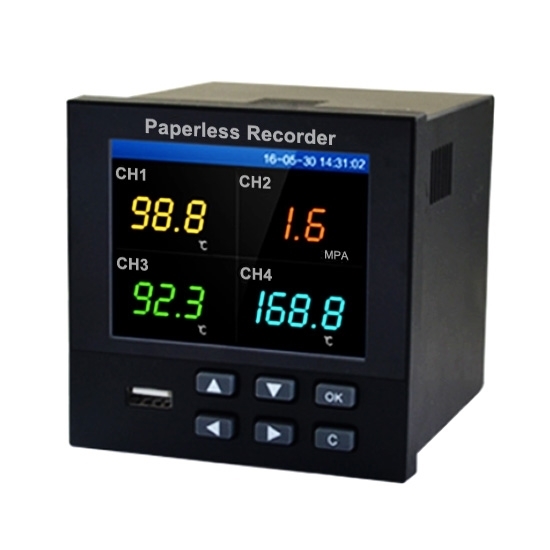

3.5 inches paperless recorder can collect, calculate, display, and record data such as temperature, pressure, current, voltage and other input signals. It has different data display forms: Digital Display, Bar Graph, Real-time Curve, Alarm, History, etc. Paperless recorder with 1 USB data interface has optional AC/DC power supply, 18 input channels, 4 alarm outputs and 1 RS485 communication output.

Power Supply *
Number of Channels *
Relay Alarm Output *
Communication Output *

SKU: ATO-PLR-CH18

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
PDF Catalog/User Manual

3.5 inches paperless recorder with optional 18 input channels can achieve temperature/ pressure/ current/ voltage online monitoring and U disk data download.

Specification:

Model	ATO-PLR-R9600
Shipping weight	1kg
Dimension (WHL)	9696101mm with hole size 92*92mm
Display	3.5 inches TFT true color LCD display, 320*240 resolution
Power supply *	1. AC power: AC 176~264V, 47~63Hz 2. DC power: DC 24V
Power dissipation	≤20W
External power supply	24VDC, 150mA (for external device)
Internal storage	48M bytes flash Note: All the data is stored in flash memory to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure.
External storage	U disk support (standard USB2.0 communication interface)
Number of Channel *	1, 2, 3, 4, 6, 8, 12, 16, 18
Input signal	1. Standard signal: 0-20mA, 4-20mA, 0-5V, 0-10V, 1-5V 2. mV signal: 0-20mV, -20~20mV, 0-100mV 3. Thermocouple signal: S, B, K, T, E, J, R, N type 4. RTD signal: Pt100, Cu50
Alarm output *	Up to 4 alarm outputs, relay parameter: NO, 2A / 250VAC
Communication output *	RS485
Communication protocol	Modbus communication protocol
Sampling period	1s
Recording interval	1s~60min (by parameter setting)
Functions	Different data display forms: Front Panel, Digital Display, Bar Graph, Real-time Curve, Power Off Safeguard, Alarm, History
Operating temperature	0~50℃ (32~122℉)
Relative humidity	10~85%RH (No condensation)
Storage temperature and humidity	Temperature: -20~+60℃ (-4~+140℉), Humidity: 5~95%RH (No condensation)
Warranty	3 years

Tips: Difference between paperless recorder and paper recorder

Size
Paperless recorder: Small size, lightweight, can be installed densely.
Paper recorder: Large and heavy, taking up a lot of space.
Usage
Paperless recorder: 0~50℃ working temperature, no consumables, optional printing function.
Paper recorder: Room temperature working condition, special paper is required for printing records.
Performance
Paperless recorder: Intelligent, diversified input signals, the sampling interval can be customized, can be connected to the upper computer for monitoring through RS485/232 communication output, or use the USB interface to store data to an external computer and select other software to analyze and print.
Paper recorder: Large external dependence, fixed input signal, fixed sampling interval, no communication and no data download functions.

Download ATO paperless recorder catalog (pdf).

Download ATO-PLR-CH18 paperless recorder user manual (pdf).

Download ATO-PLR-CH48 paperless recorder user manual (pdf).

Download ATO-PLR-CH40 paperless recorder user manual (pdf).

Existing reviews of Paperless Recorder 1/4/8/12/18 Channel Output RS485

Reliable and efficient recorder

The paperless recorder's user interface is simple and intuitive, making it easy to navigate and find the information I need. The data is stored securely and can be easily accessed from my computer or mobile device. I've been using the paperless recorder for several months now and I must say, I'm impressed.

From: Enoch | Date: 17/03/2023

Was this review helpful? Yes No (0/0)

Reliable paperless recorder equipment

As someone who has been in the industry for many years, I was skeptical about switching to a paperless recorder. However, after using this device, I was blown away by its capabilities. The ability to access data remotely is a huge time saver, and data visualization tools allow us to easily identify patterns and trends. The customer service is also excellent, any issues we had were quickly resolved.

From: Logan | Date: 20/02/2023

Was this review helpful? Yes No (0/0)

Ask a question

May I know if you have a Multi Parameter Paperless recorder?
that can display pressure, temperature, electrical and mass measurement? May I also know if the display can change into a graphical trend display.

From: Bever | Date: 10/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we have a multi-parameter paperless recorder that can display pressure, temperature, electrical and mass measurements simultaneously (electrical and mass should be in analog signal input form, such as 4-20mA.). Also, the display can be changed to graph trend for graph and histogram display.
