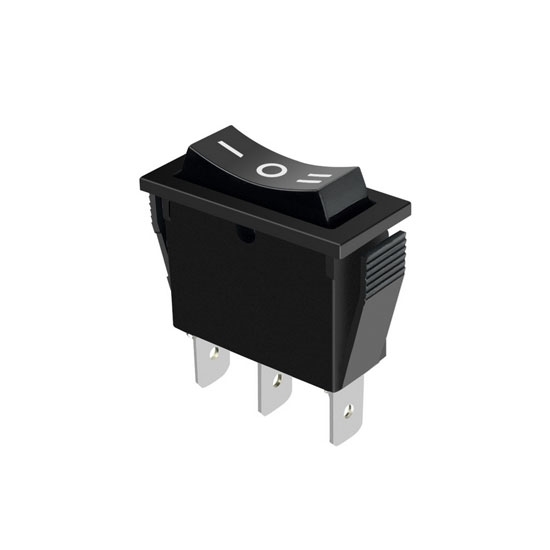

On Off On Rocker Switch, 3 Pin

5 out of 5 based on 1 reviews | Write a review

$6.87

On off on 3 position rocker switch, 3 pin, electrical life of 10,000 times, the shell of black rocker switch is made of flame-retardant material, with strong expansion and contraction performance, high temperature resistance.

SKU: ATO-RS-KCD02C

This product has a minimum quantity of 10

Qty:

Overview

Brand new black on off on rocker switch, terminals number 3 pins, rating 16V 250VAC, rocker switch is suitable for home appliances and office equipment.

Specification

Model	ATO-RS-KCD1102C
Rated Current	16A
Rated Voltage	220V
Terminals Number	3 Pin
Contact Resistance	≤50mΩ
Withstand Voltage	1500VAC 1 min
Rated Range	16A 250VAC
Relative Humidity	＜95%
Protection Level	IP40
Terminal Insertion Force	≥80N
Insulation Resistance	≥1000mΩ
Electrical Life Time	10,000 Cycles
Flame Retardant Requirements	UL94-V2
Operating Force	2N-8N
Welding	Welding temperature ≤320℃, welding time ≤3 seconds
Illuminated Voltage	Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
Certificate	UL, CE, ENEC
Warranty	12 Months

On Off On Rocker Switch Dimension

Why choose ATO rocker switch?

The ATO rocker switch has the characteristics of oxidation resistance, strong resistance, thick copper sheet, less riveting, and long service life.

The copper parts in the electronic switch socket are the key components to ensure smooth current flow and reduce heat generation. The thickness of the copper sheet improves the current flow capacity and reduces the resistance of the copper piece itself. Strong endurance, especially applied to the socket part of the socket, not easy to deform. Even if the socket is used for a long time, it can maintain a proper clamping force to ensure that the socket and the plug are tightly connected to reduce the arc. Anti-oxidation, no rust, reduce resistance increase and heat generation caused by rust. Less riveting, preferably a whole piece of copper, to further reduce the riveting part breakage and rivet heating.

Choose ATO boat rocker switch, we provide you with high-quality pre-sales and after-sales service.

Existing reviews of On Off On Rocker Switch, 3 Pin

The right switch for my project

Easy to install and works as expected, I needed to take the flash all the way off and desolder and re-solder the switch on the board, but that's what I had the soldering iron for. Low price, can buy more than one at a time.

From: Jaxton | Date: 06/05/2022

Was this review helpful? Yes No (0/0)
