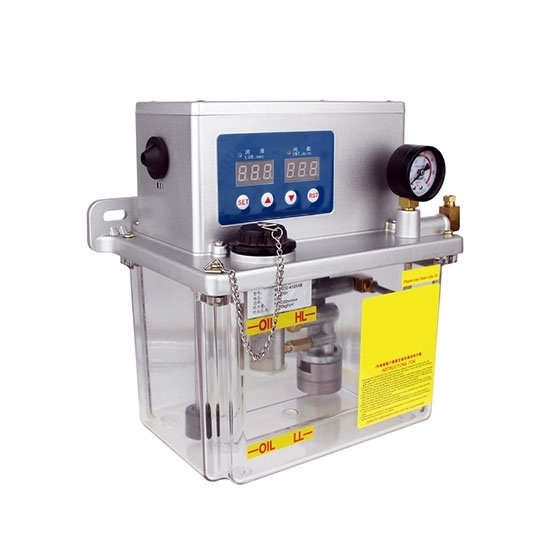

Automatic Oil Lubrication Pump with Motor

5 out of 5 based on 3 reviews | Write a review

$176.99

Automatic oil lubrication pump with 2 pole motor, 2L/ 3L/ 4L, single phase or three phase, selectable motor voltage 110V/220V/380V AC, 24V DC, 18W, alarm output 24V/220V DC, discharge capacity 150~200 ml/min, is an electric oil lubrication system for industrial machine.

Tank Capacity *
Voltage *
Voltage *
Voltage *
Operating Mode *
Distributor *
Level Switch *
Level Switch *
Pressure Switch *
Alarm Output *
Relay Alarm Output *
Alarm Output *
Alarm Output *
Alarm Output *
Alarm Output *
Alarm Output *
Alarm Output *
Alarm Output *
Alarm Output *
Buzzer *

SKU: ATO-OLP-MR

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low price automatic oil lubrication pump is an electric oil pump equipped with shade-pole motor, which can be used in the centralized lubrication system of light industry, forging automation and other mechanical equipment.

Specification

Model	ATO-OLP-MR
Operating Mode	Semi-automatic (without dual-timer module) Full-automatic (with dual-timer with digital display and press buttons)
Distributor	Resistance Distributor (without pressure take-off mechanism) Volumetric Distributor (Built-in pressure take-off mechanism)
Oil Tank Capacity	2L/ 3L/ 4L
Motor	Shade-pole Motor
Number of Motor Poles	2P
Motor Voltage	1 Phase 110V AC, 1 Phase 220V AC, 3 Phase 220V AC, 3 Phase 380V AC, 24V DC
Motor Power	18W
Frequency	50/60Hz
Rated Rotary Speed	2400 rpm
Current	0.12A
Level Pressure Alarm Output	24V DC/ 220V AC
Rated Pressure	18 kgf/cm²
Max Pressure	35 kgf/cm²
Discharge Capacity	150~200 ml/min
Oil Viscosity	30~1000 kgf/cm²
Weight	3/ 4/ 4.5 kg
User Manual

Dimensions (Units:mm)

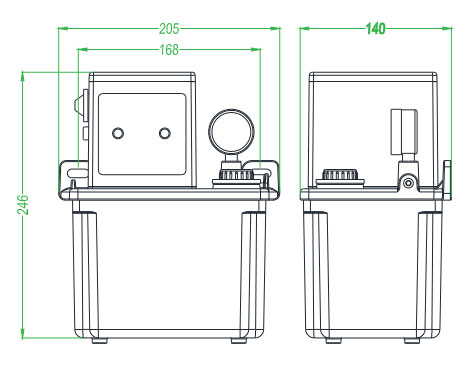

2L Oil Lubrication Pump

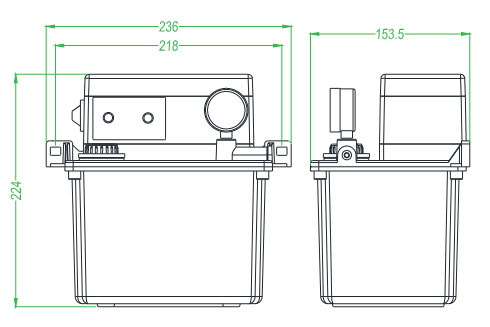

3L Oil Lubrication Pump

4L Oil Lubrication Pump

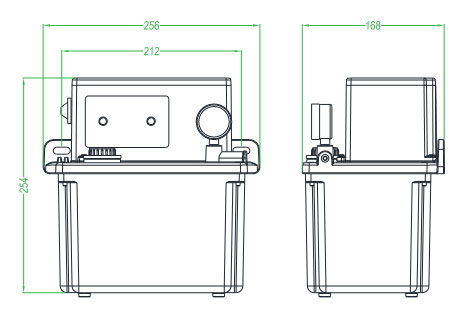

Dimensions of 4L Automatic Oil Lubrication Pump with Motor

Tips: What are functions of automatic oil lubrication pump?

Oil lubrication pump is an electric device that belongs to lubrication system. Automatic lube pump is commonly used for various industrial equipment, such as CNC machinery, milling machine, grinder, cutting machine, injection molding machine, etc. What are the functions of it?

It is semi-automatic or full-automatic to control and adjust oil supply, which has a wide range of standby and working time adjustment and is suitable for various industrial equipment.
It is designed with oil shortage alarm system, which can remind the operator to fill oil in time.
It is equipped with one-way control valve and resistance distributor or volumetric distributor, so that it can fully ensure the supply of lubricating oil at all points.
The two-stage filter can effectively prevent impurities from oil inlet to ensure oil cleaning and prevent mechanical wear.

Existing reviews of Automatic Oil Lubrication Pump with Motor

Fully Functional Motor

I purchased this automatic oil lubrication pump with a motor, but I don't know how to use it. Is this automatic oil lubrication pump with a motor a high-pressure switch or a low-pressure switch? And how does its pressure switch work?

From: Manuel | Date: 12/06/2024

Was this review helpful? Yes No (0/0)

ATO Responded

1. Application of pressure switch in lubrication pump:
The pressure switch is a very important accessory in the lubrication pump. It can monitor the pressure of the lubrication pump, cut off the power supply to the pump, and protect the mechanical equipment. When you use a lubrication pump, you should pay attention to the maintenance of the pressure switch and regularly check whether the pressure switch is working properly. If there is any problem, it should be replaced or repaired in time.
2. Pressure:
The pressure switch detects the pressure of the oil circuit. It opens when the pressure is 5Kg and closes when the pressure is 10Kg. After the oil pump works, when the oil line pressure is lower than 10kg, the pressure alarm will occur. The purpose is to detect whether the oil supply of the oil pump is normal and whether the oil pipe is broken and leaking oil. This model pressure switch is normally closed.

Lubrication Pump

how does the lubrication unit work set on a timer if so what settings sec, minutes?

From: Levis | Date: 05/02/2024

Was this review helpful? Yes No (0/0)

ATO Responded

The full-automatic option of this lubrication device comes with a timer after purchase. The time can be set in minutes or seconds. You can refer to the user manual in the attachment.

Awesome automatic oil lubrication pump!

The pump does exactly what it is suppose to do, it squirts more than you could ask for. For the price, the quality is fairly good. Handy and no complaints. Recommend it. You will not regret this purchase.

From: John | Date: 25/03/2022

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for Automatic Oil Lubrication Pump with Motor

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Customers who bought this item also bought

Automatic Oil and Grease Lubrication Pump

$230.59

SKU: ATO-OGLP-MRG

Industrial oil and grease lubrication pump, 2L/ 3L/ 4L, discharge capacity 200~300 ml/min, equipped with induction motor, single phase or three phase, selectable motor voltage 110V/220V/380V AC, 24V DC, alarm output 24V/220V DC. It is an automatic lubrication system for mechanical equipment.

Automatic Oil Lubrication Pump with Motor

Automatic Grease Lubrication Pump with Motor

Automatic Oil and Grease Lubrication Pump

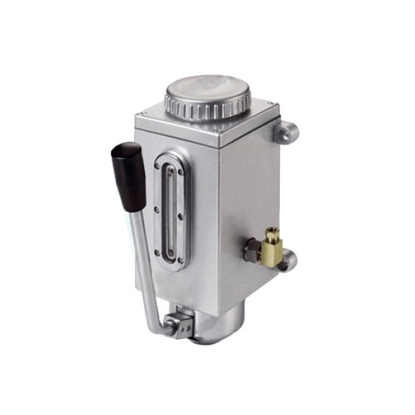

Hand Operated Oil Lubrication Pump
