Muting Light Curtain for Revolving Door

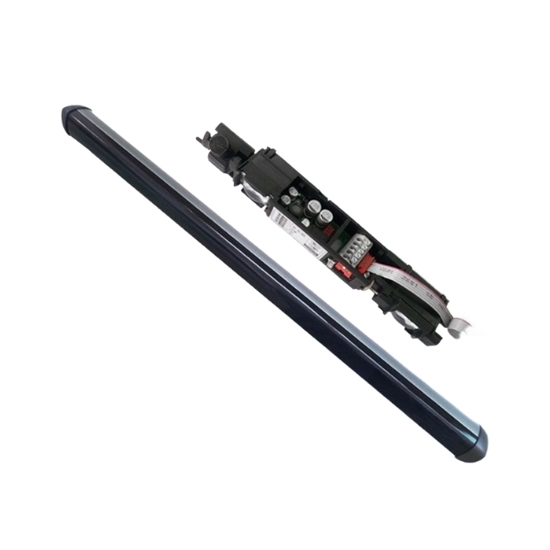

ATO door light curtain is a core safety protection accessory for automatic sliding doors and revolving doors. It adopts infrared detection technology with a light spot diameter of 75mm. The scanning range can be flexibly adjusted through mechanical wheels, and it supports both moving and static dual-mode detection. With a response speed of ≤100ms, it can accurately identify moving objects or human bodies to avoid collision risks. Moreover, it operates silently throughout the process without generating noisy sounds. Muting light curtain is compatible with AC/DC12-36V wide voltage, with stable relay signal output. The aluminum/ABS shell and IP52 protection level meet the requirements of daily environment use. At the same time, safety light curtain complies with the EN electromagnetic compatibility standard, ensuring more reliable operation and suitability for various application scenarios.

Specification

Features

• Fast & Precise Safety Protection: Reaction time ≤100ms with infrared detection, 75mm light spot diameter and 500-2800mm adjustable scanning range; supports moving/static dual modes to achieve accurate anti-pinch and anti-collision effect, suitable for automatic sliding doors and revolving doors in malls, hotels and other scenarios.
• Quiet & Low-Power Operation: Muting door light curtain runs silently without noisy operation; AC/DC12-36V wide voltage compatibility and current consumption <100mA, energy-saving and stable for long-term use.
• Durable & Environmentally Adaptable: Aluminum/ABS housing with IP52 protection rating; complies with EN61000 series EMC standards, ensuring reliable performance against electromagnetic interference in both commercial and light industrial environments.
• Flexible & Versatile Application:Multiple sensor dimensions (620mm, 750mm, 900mm, 1200mm) available to match different door types; stable relay signal output meets various installation requirements.

Dimension

Detail

Adjustment Instructions

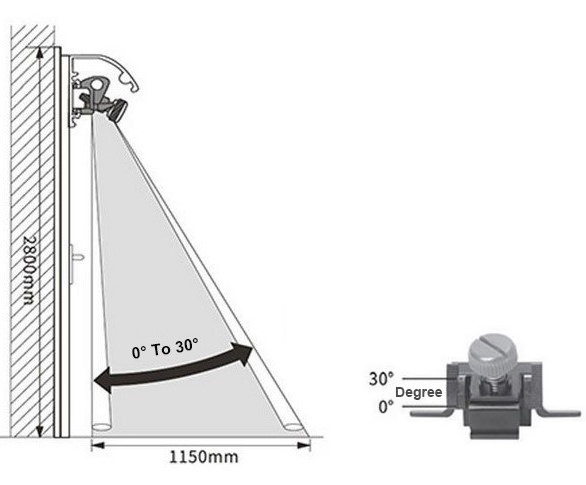

Use the wedge on the mounting bracket to set the tilt angle. Carefully adjust the angles on both sides to be the same (the angle can be read from the scale), otherwise the sensor inside the housing will be tilted, the same method applies to two or more groups.

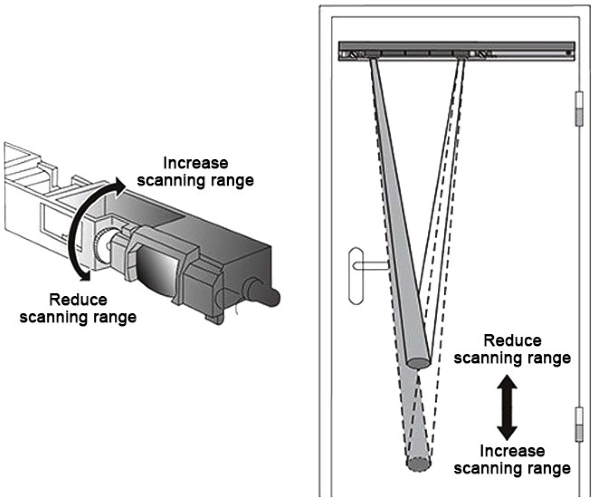

Use the adjustment wheel to adjust the scanning range. Set the scanning range to approximately 25 cm above the ground.

Tips: How to Maintain Muting Door Light Curtain?

• Regular cleaning: Wipe the surface of the safety light curtain with a dry cloth every week (avoid using a wet cloth or cleaning agent) to remove dust and oil stains, preventing the blocking of the infrared light path from affecting detection.
• Avoid sharp objects: The aluminum/ABS shell, if damaged by a hard object impact, must be replaced in a timely manner to prevent the failure of dustproof and moistureproof (IP52) capabilities.
• Check wiring: Check monthly whether the power supply/signal wiring is loose to avoid equipment failure caused by voltage fluctuations or poor contact.
• Avoid inappropriate environments: Do not install the door light curtain in areas with direct strong light, high temperature/high humidity (beyond the IP52 adaptation range) to reduce environmental damage to components.
• Function test: Test the detection response quarterly, quickly pass an obstruction through the detection area to confirm whether the door body responds in a timely manner (response delay requires troubleshooting).
