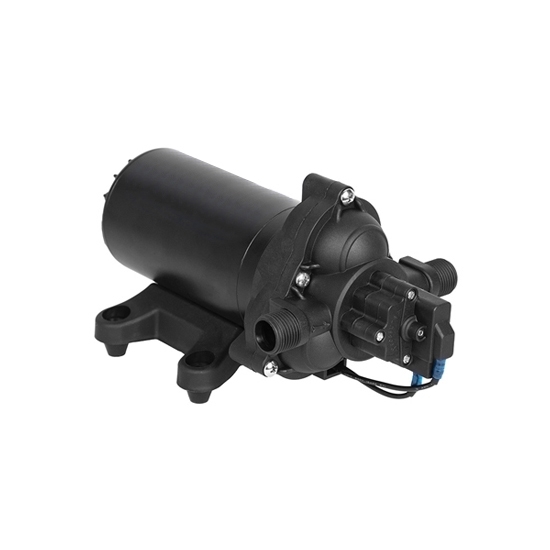

Micro Diaphragm Pump, 110V/220V AC, 3.5 GPM

Low price 110V/220V AC diaphragm water pump for sale online. ATO electric diaphragm pump provides 3.5 GPM/13.2 LPM flow, 45 PSI/3.1BAR stop pressure, threaded connection and 3m suction range, typically used in a variety of applications that require conveying or circulating water.

Specifications

• Model: ATO-STFDP3-132-010-043-3335
• Type: Electric Diaphragm Pump
• Voltage: 110V/220V AC
• Current: 1.3A/0.7A
• Lift: 30M
• Suction Distance: 3M
• Flow: 3.5 GPM/13.2 LPM
• Stop Pressure: 45 PSI/3.1BAR
• Control Method: Pressure Switch
• Interface Mode: 1/2" External Thread
• Weight: 2.98kg

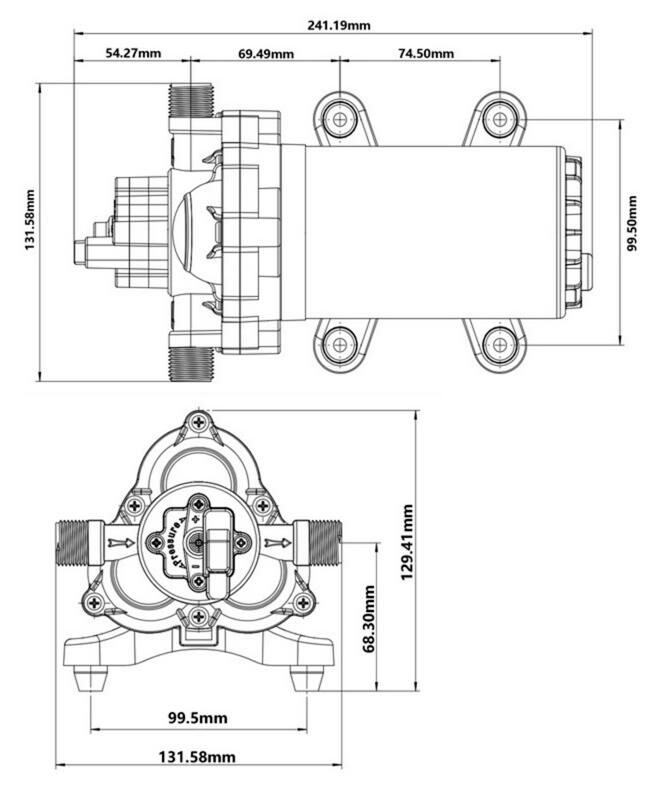

Dimension (Unit: mm)

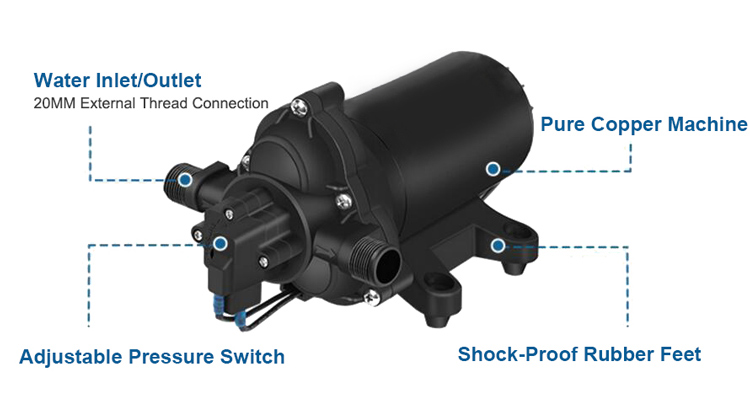

Details

Applications

Tips: What is an AC diaphragm pump?

An AC diaphragm pump is a type of positive displacement pump that operates using alternating current (AC) power. It is designed to move fluids by utilizing a flexible diaphragm, typically made of rubber or thermoplastic material. The pump consists of a chamber with an inlet and outlet, separated by the diaphragm. As the AC power supply cycles, the diaphragm undergoes reciprocating motion, creating a pulsating flow of the fluid.

The diaphragm pump is known for its ability to handle a variety of fluids, including abrasive and viscous substances, making it suitable for diverse applications such as chemical processing, water treatment, and industrial fluid transfer. The positive displacement mechanism ensures consistent and precise flow rates, making it particularly useful in situations where accurate dosing or metering is essential.

AC diaphragm pumps are favored for their reliability, self-priming capabilities, and the ability to handle varying pressures. They are commonly used in situations where a consistent and controlled fluid transfer is necessary, contributing to their widespread use in industrial and commercial settings.
