Mini-Pro OTDR Fiber Optic Tester

5 out of 5 based on 1 reviews | Write a review

$998.62

Mini pro OTDR fiber tester with dual-wavelength 1310/1550nm, dynamic range 22/20dB, can quickly and accurately detect the location and type of fiber optic cable fault points. The fiber optic tester has 6 functions including an optical time domain reflectometer optical power meter / visual fault location/stable light source/RJ45 line sequence measurement/flashlight, users can quickly and accurately measure without setting.

SKU: ATO-OTDR-2800D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

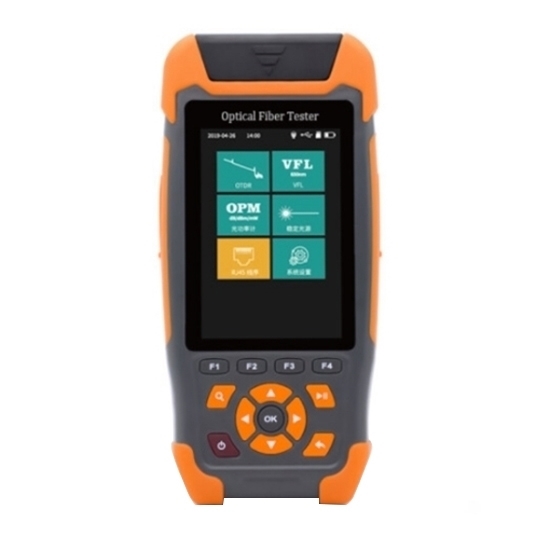

Mini pro OTDR fiber tester with 3.5-inch LCD display, measurement range up to 64km, wavelength 1310/1550nm, dynamic range of 22/20dB. OTDR fiber tester maximum use of 20 hours, ideal for long outdoor work.

Specification

Model	ATO-TP2800D
Function	OTDR/OPM/LS/VFL /RJ45 line sequence/Flashlight
Wavelength	1625nm
Dynamic Range	22/20dB
Event Blind Zone	3m
Fading Blind Area	8m
Measurement Range	500m~65km
Sampling Points	16k~256k
Sampling Resolution	0.05m~8m
Data Storage	Internal: ≥ 600, external: expandable TF card
Laser Safety Level	Class 2 level
File Format	SOR standard file format
Interface Type	FC/UPC (interchangeable SC, ST)
Optical Power Meter
Wavelength Range	800nm~1700nm
Connector	Universal connector FC/SC/ST
Measurement Range	- 50dBm ~ + 26dBm
Uncertainty	5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration Wavelength	850/980/1300/1310/1490/1550/1625/1650nm
Light Source
Laser Type	FP-LD
Output Wavelength	1310nm/1550nm± 20nm
Output Power	≥- 5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW, +0.5dB/15min (tested after 15min power on warm-up)
Interface Type	FC/UPC (interchangeable with SC, ST)
VFL Integrated Red Light
Working Wavelength	650nm±20nm
Output Power	≥10mW
Working Mode	CW/1Hz/2Hz
Whole Machine Index
Display	3.5-inch color LCD screen
Data Interface	Micro USB
Expandable Storage	TF card (optional)
Power Supply	Lithium polymer battery: 3.7V, 4000mAh power adapter: 5VDC, 2A
Battery Life	Standby>7.5 hours, measurement>4 hours.
Operating Temperature	-10°C~ +50°C
Storage Temperature	-20°C~ +70C
Relative Humidity	0~95% non-condensing
Overall Weight	Main unit weight 0.360kg; including packaging 0.760kg
Dimension	173mmx 82mmx37mm

Details

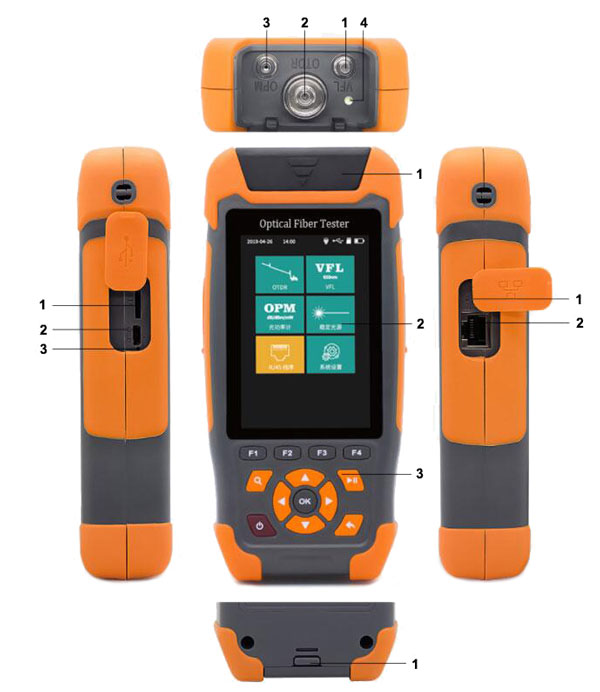

Top	Side Left	Main View
1. VFL (visual fault locator) interface	TF (Micro SD) card slot	1. Dustproof cover
2. OTDR/LS optical interface	Micro USB (charge/connect to a computer to copy data)	2. 3. 5-inch color LCD display
3. OPM (Optical Power Meter) interface	LED charging indicator	3. Function buttons
Side right	Back Bottom
1. Reset interface	1.RJ45 test distal
2. RJ45 test interface
3. Back bottom

Packing List

1 x Power Adapter
1 x Data Cable
1 x SC to Interface
1 x CD-ROM (with analysis software)
1 x Operation Manual
1 x Certificate of Conformity / Warranty Card
1 x Test Report
10 x Cleaning Swabs
1 x Instrument-Specific Bag

Features

High-performance test, 20dB dynamic range, optical time domain reflectometer, 20h ultra-long standby.
Multi-functional standard, optical time domain reflectometer/optical power meter/visual fault location/stable light source/RJ45 line sequence measurement/flashlight.
Simple operation, one key automatic test, automatic file saving, automatic analysis of test results.
Fast batch processing of SOR files, remote upgrade, and USB data file batch export.

Applications

OTDR-tester-applications

Tips: How to clean the connectors of the fiber optic tester?

Before the fiber or connector is connected to the OTDR, it must be carefully cleaned, including the output connector of the OTDR and the charged connector under test, otherwise, the insertion loss is too high, the measurement is unreliable, the curve is noisy, or even makes the measurement impossible, and the OTDR may be damaged. avoid using cleaning agents other than alcohol or refractive index matching solutions, as they can cause the adhesive inside the fiber connector to dissolve.
