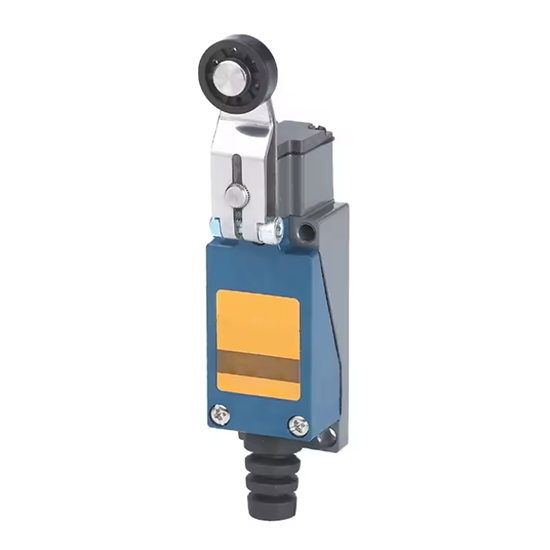

Micro Limit Switch, Coil Spring/Roller Lever/Plunger, 5A/250VAC

Write a review

$55.84

Micro limit switch for sale online, choosing from coil springs, roller levers, or plunger actuators to meet your specific application needs. The rated current of industrial limit switch is 5A, 250VAC, designed with an IP65 rating, providing normally open (NO) and normally closed (NC) contacts, providing flexibility for circuit design and application.

Actuator Type *

SKU: ATO-LS-LZ801

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Precision micro limit switches are highly suitable for use in mechanical, robotic, and automation systems, providing precise control and reliable operation.

Features

Compact design ensures space-saving efficiency and extended operational longevity.
Open terminals facilitate straightforward and hassle-free wiring.
IP65-rated dustproof, waterproof, and oil-proof structure ensures reliable performance in harsh environments.
Double circuit line design enhances reliability and safety in electrical connections.
Aluminum alloy body and plastic cover provide robust mechanical strength.
Widely utilized in transfer handling machinery, machine tool equipment, and automation systems.
CE and CCC certifications guarantee compliance with international standards for quality and safety.

Specification

Model		ATO-LZ8
Rating		5A 250VAC 0.3A 220VDC
lnitial contact resistance		25mΩ max.
lnitial insulation resistance		100 mΩ min. (at 500VDC)
Dielectric strength	Between non-consecutive terminals	1000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	1500Vrms, 50/60Hz for 1 min
	Between ground and each terminal	1500Vrms, 50/60Hz for 1 min
Shock resistance	Mechanical durable	1000m/s² max.
	Malfunction	300m/s² max.
Vibration resistance		10-55Hz, 1.5mm double amplitude
Operating life	Mechanical life	1,000,000 times min.
	Electrical life	200,000 times min.
Ambient temperature		-25℃ to +85℃
Ambient humidity		95%RH max.
Operating frequency	Mechanical	120 times/min
	Electrical	30 times/min
Operating speed		5mm-0.5cm/s
Protection degree		IP65
Weight		80g

Actuator Operating Characteristic

Model	LZ8104 (Plastic roller lever)	Model	LZ8112 (Roller plunger)
O.F. max.	750g (7.35N)	O.F. max.	900g (8.82N)
R.F. min.	100g (0.98N)	R.F. min.	150g (1.47N)
P.T. max.	20°	P.T. max.	1.5mm
O.T. min.	50°	O.T. min.	4.0mm
M.D. max.	10°	M.D. max.	1.0mm
---	---	O.P.	37±0.8mm
Model	LZ8167 (Coil spring rod)	Model	LZ8169 (Coil spring wire)
O.F. max.	150g (1.47N)	O.F. max.	150g
P.T. max.	30mm	P.T. max.	30mm

OF: Operating Force
RF: Release Force
PT: Pre-Travel
OT: Over Travel
MD: Movement Differential
OP: Operating Position
FP: Free Position

Contact Form

Actuators

Micro limit switch plastic roller lever

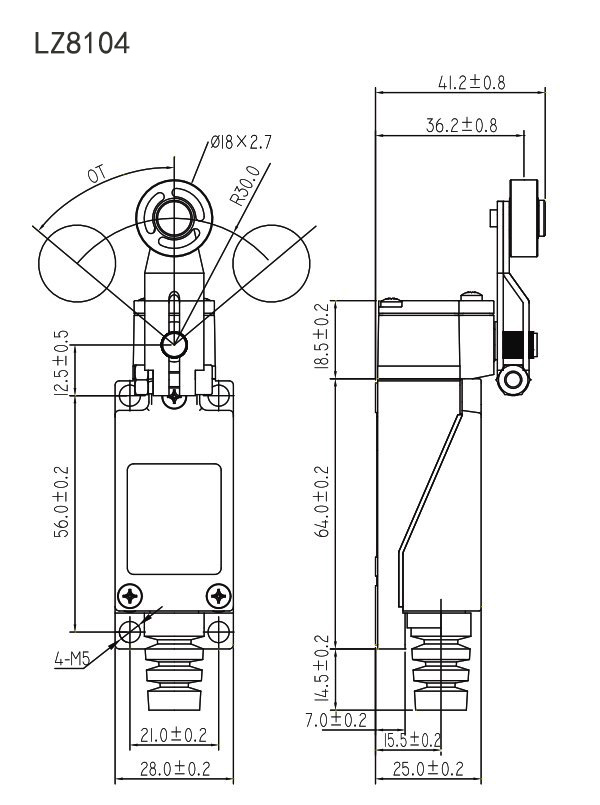

LZ8104 (Plastic roller lever)

Micro limit switch roller plunger

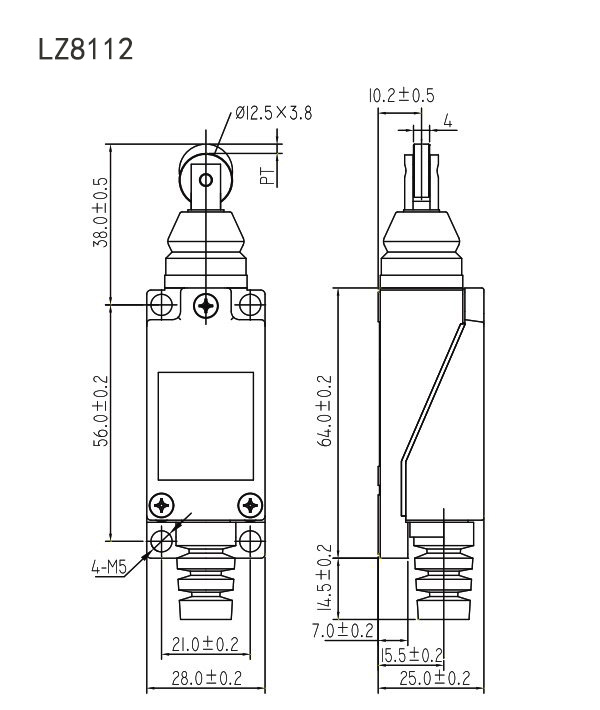

LZ8112 (Roller plunger)

Micro limit switch coil spring rod

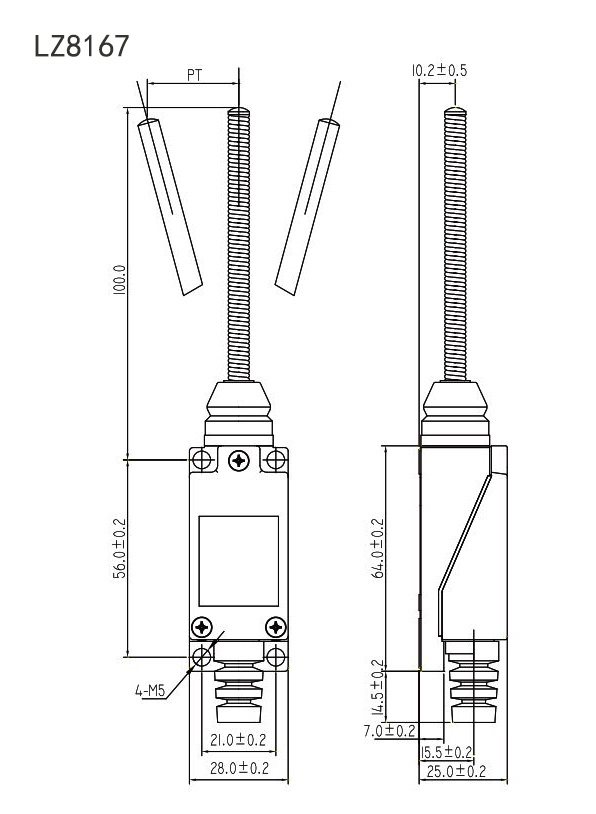

LZ8167 (Coil spring rod)

Micro limit switch coil spring wire

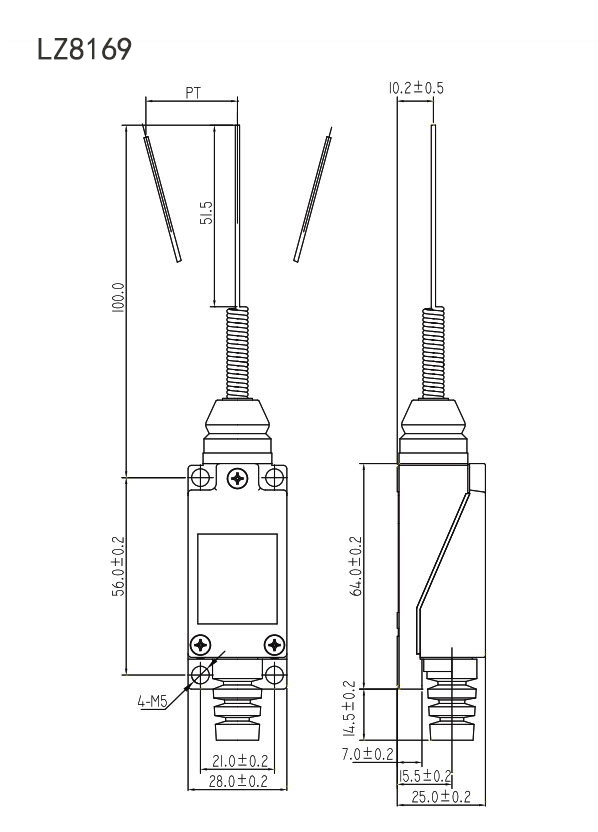

LZ8169 (Coil spring wire)

Tips: Wiring steps of micro limit switch

Loosen the cover screws and remove the cover.
Crossing the lead wire through rubber connector on the cover.
Loosen the switch terminal screws and insert terminals on lead wire side into the right switch terminals and fasten the terminal screws.
Installing the rubber connector into the cover and then install the cover. Make sure the rubber sealing strip around the cover on the right position.
Fasten the cover screws.

VFD Emergency Stop with Limit Switches

In this video, you will learn about the setup and operation of emergency stopping a motor by using limit switches and a variable frequency drive (VFD). By combining the limit switches of the emergency stop function with the VFD GK3000, a strong safety measure can be established that can quickly stop the motor operation in an emergency.
