Curved Jaw Coupling, 30 x 35mm

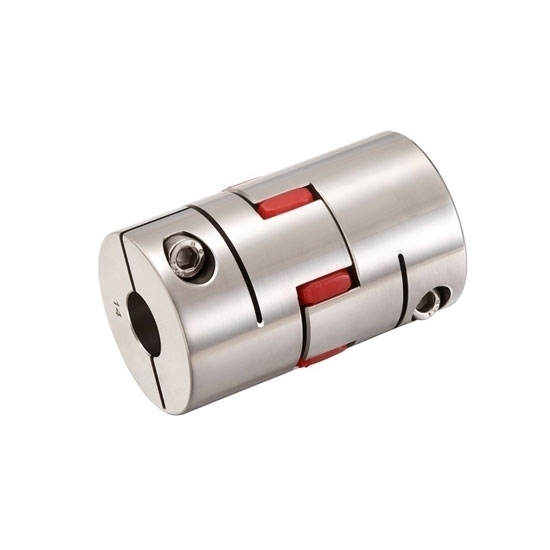

Curved plum coupling size 30mm x 35mm, bore 6mm to 16mm, jaw coupling has the performance of compensating the relative offset of the two axes, shock absorption, wear resistance and buffering.

Specification

• Model: ATO-SC-GFCG-3035
• Rated Torque: 9.8 Nm
• Eccentricity Allowed: 0.02mm
• Bore: 6 to 16mm
• Allowable Declination: 1∠°
• Allowable Axial Deviation: ±0.60mm
• Allowable Speed: 12000rpm
• Static Torsional Stiffness: 72 Nm/rad
• Moment of Inertia: 6.2 x 10^-6 Nm
• Bushing Material: 304 Stainless steel
• Rubber Block Material: Polyurethane imported from Germany
• Surface Treatment: Polished
• Weight: 114g
• Certificate: ISO9001, REACH, RoHS
• Warranty: 12 Months

Plum Flexible Shaft Coupling Dimension (unit: mm)

• d1/d2 Inner Diameter Size: 5-6-6.35-7-8-9-10-11-12-12.7-14-15-16
• ΦD: 30
• L: 35
• LF: 22.5
• LP: 10.9
• F: 5.9
• M: M4
• Tightening Torque: 3.5 Nm

Tips: What is plum coupling?

Plum coupling is a widely used coupling, also known as claw coupling, which consists of two metal claw discs and an elastic body. The two metal claw discs are usually 45 steel, but aluminum alloys are also useful where load sensitivity is required. Its elastomer is usually composed of engineering plastics or rubber. The life of the elastomer is the life of the coupling. The life of the elastomer is 10 years. Since elastomers have the function of buffering and reducing vibrations, they are widely used in the case of strong vibrations. The ultimate temperature of the elastomer determines the operating temperature of the coupling, usually -35 to +80 degrees.
