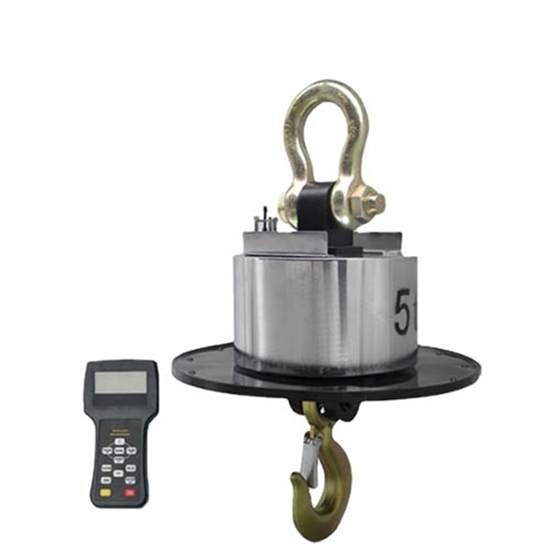

Industrial Crane Scale 5 ton/ 10 ton/ 15 ton to 50 ton

5 out of 5 based on 1 reviews | Write a review
$2,103.69
Industrial crane scale with wireless control and high temperature resistant function, capacity from 5 ton/ 10 ton/ 15 ton to 50 ton, seamless steel pipe welding, high temperature resistant material inside the heat shield, good heat insulation performance. Standard RS232 output port, wireless connection to large screen. Crane weight scale with menu-based operation method, automatic data storage, data storage can reach 99 and radio frequency up to 433MHz.
SKU: ATO-GWD800
30-day Returns
Free Shipping
Delivery date: 6-12 days

Industrial crane scale with remote control capacity from 5 ton/ 10 ton/ 15 ton to 50 ton, equipped with seamless steel pipe welding and heat shield, good heat insulation performance. Heavy duty crane weight scale with radio frequency up to 433MHz and automatic data storage can reach 99.

Specification

Model ATO-GWD800-1 ATO-GWD800-2 ATO-GWD800-3 ATO-GWD800-5 ATO-GWD800-10 ATO-GWD800-15 ATO-GWD800-20 ATO-GWD800-30 ATO-GWD800-50
Capacity (kg) 1000 kg (1 ton) 2000 kg (2 ton) 3000 kg (3 ton) 5000 kg (5 ton) 10000 kg (10 ton) 15000 kg (15 ton) 20000 kg (20 ton) 30000 kg (30 ton) 50000 kg (50 ton)
Resolution (kg) 0.5 kg 1 kg 1 kg 2 kg 5 kg 5 kg 10 kg 10 kg 20 kg
G.W. (kg) 45 kg 47 kg 53 kg 62 kg 87 kg 100 kg 130 kg 210 kg 575 kg
Accuracy class National Standard GB/T11883-2002 "Electronic Crane Scale"
Display show LCD with backlight
Wireless distance Open area 200 meters
Filtering Low, medium, high selectable
Division value Standard 2000 to 3000 divisions (up to 30000 divisions)
Zero range Optional, from 4% to 100% of range
Tare range 100% F.S.
Overload display 100% F.S. + 9e
Safety load 125% F.S.
Ultimate load 700% F.S.
Scale battery 6V/4Ah Ni-MH rechargeable battery
Meter battery 1 x 18650 lithium battery
Charger Input: AC100-240V 50/60Hz
Output: 850mA
Working humidity ≤85% RH 20°C environment
Radio frequency 433MHz


Details

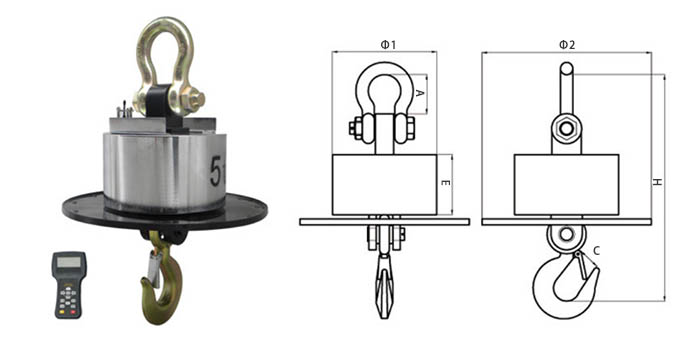

Industrial crane scale size

Capacity (kg) A (mm) C (mm) E (mm) H (mm) Φ1 (mm) Φ2 (mm) G.W. (kg)
1000 kg (1 ton) 67 35 160 450 270 400 45
2000 kg (2 ton) 95 45 160 510 270 400 47
3000 kg (3 ton) 113 55 185 625 270 520 53
5000 kg (5 ton) 122 65 185 710 325 520 62
10000 kg (10 ton) 144 70 185 835 325 520 87
15000 kg (15 ton) 166 85 185 900 325 520 100
20000 kg (20 ton) 260 90 200 1055 325 620 130
30000 kg (30 ton) 285 100 220 1140 375 620 210
50000 kg (50 ton) 360 160 280 1680 450 750 575


Feature

  1. Crane weight scale is welded by seamless steel pipe, which is strong and durable, and the heat insulation board is equipped with high temperature resistant material, which has good heat insulation performance.
  2. Capacity from 5 ton/ 10 ton/ 15 ton to 50 ton. The industrial hanging scale instrument adopts a hand-held design, which is convenient and easy to carry outdoors.
  3. Crane load cell adopt menu operation method, calibration, storage, data retrieval, peak value hold, data automatic storage, so as not to lose when power off, data storage can reach 99, simple and easy.
  4. The hanging crane scale instrument will automatically shut down after 30 minutes of no operation to achieve power-saving effects.
  5. The wireless system has 32 frequency points to choose from, to avoid mutual interference between multiple crane scales on the same occasion.
  6. Wireless crane scale with standard RS232 output port, which can be connected to a printer and wirelessly connected to a large screen.

Application

Hanging crane scale application

Tips: How to operate the crane scale correctly?

  1. Before using the wireless crane scale, we need to load the corresponding power supply battery into the scale body. When it is found that the weighing instrument has no voltage during weighing, the power supply battery should be replaced in time, and the replaced battery should be charged.
  2. When the power supply battery is not used for a long time, it should be charged regularly, and the charged power supply battery should be placed in a dry and ventilated place.
  3. When connecting the wireless electronic crane scale for weighing, it is necessary to ensure that the connected power supply is independent and cannot be used with other electronic devices. Before turning on the transmitter, make sure that the transmitting antenna and the feedback line are connected correctly to avoid damage to the transmitter.
  4. Do not collide with other objects during use. When in use, we should handle it with care to avoid collision between the scale body and falling objects.
