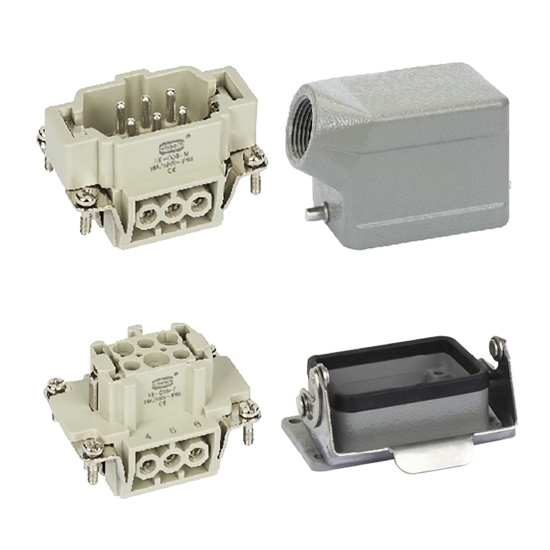

    Heavy Duty Connector, 6 Pin, AC 500V / 16A

    5 out of 5 based on 1 reviews | Write a review
    $81.43
    Heavy duty connector 6 pin has optional 4 shell items, working voltage 500VAC, working current 16A, insertion/withdrawal cycles 500 times, temperature range -40℃~+125℃ (-40℉~+257℉) and protection class IP65. The wiring form of 6 pin heavy duty connector is screw connection.
    *
    SKU: ATO-HDCN-6P
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    6 pin heavy duty connector with working voltage AC 500V and current 16A.

    Specification:

    Basic Model ATO-HDCN-HE-006-1 ATO-HDCN-HE-006-2 ATO-HDCN-HE-006-3 ATO-HDCN-HE-006-4
    Shipping weight 1kg
    Standard DIN EN 60 664-1, DIN EN 61 984
    Number of pins 6 pin + PE
    Certificate CCC, CE, ROHS, RU, CSA, TUV
    Inserts Item HE-006-M HE-006-M HE-006-M HE-006-M
    Working current 16A
    Working voltage 500V
    Rated pulse voltage urms 6kV
    Pollution degree 3 (C)
    Insulation resistance ≥1010Ω
    Material Polycarbonate
    Working temperature Range -40℃~+125℃ (-40℉~+257℉)
    Flammability according to UL94 V0
    Working voltage according to UL / CSA 600V
    Insertion / withdrawal cycles ≥500
    Contacts Item HE-006-F HE-006-F HE-006-F HE-006-F
    Material Copper alloy
    Surface treatment Silver/ Gold plating
    Contact resistance ≤1mΩ
    Wiring form Screw connection
    Wire specification 0.14-4.0mm2 AWG 26-12
    Tightening torque 0.5N·m
    Shell Hood item H6B-TS-R0-M20 H6B-TG-R0-M20 H6B-TS-R0-M20 H6B-TG-R0-M20
    Hood thread M20 M20 M20 M20
    Housing item H6B-AG H6B-AG H6B-SGR-2M20 H6B-SGR-2M20
    Housing thread - - M20 M20
    Material Cast aluminum
    Surface treatment Powder-coated, gray
    Interlocking element Interlocking method: metal elastic pressing, material: galvanized iron
    Sealing element NBR
    Applicable temperature range -40℃~+125℃ (-40℉~+257℉)
    Flammability class V0
    Protection class IP65

    Dimension (unit: mm):

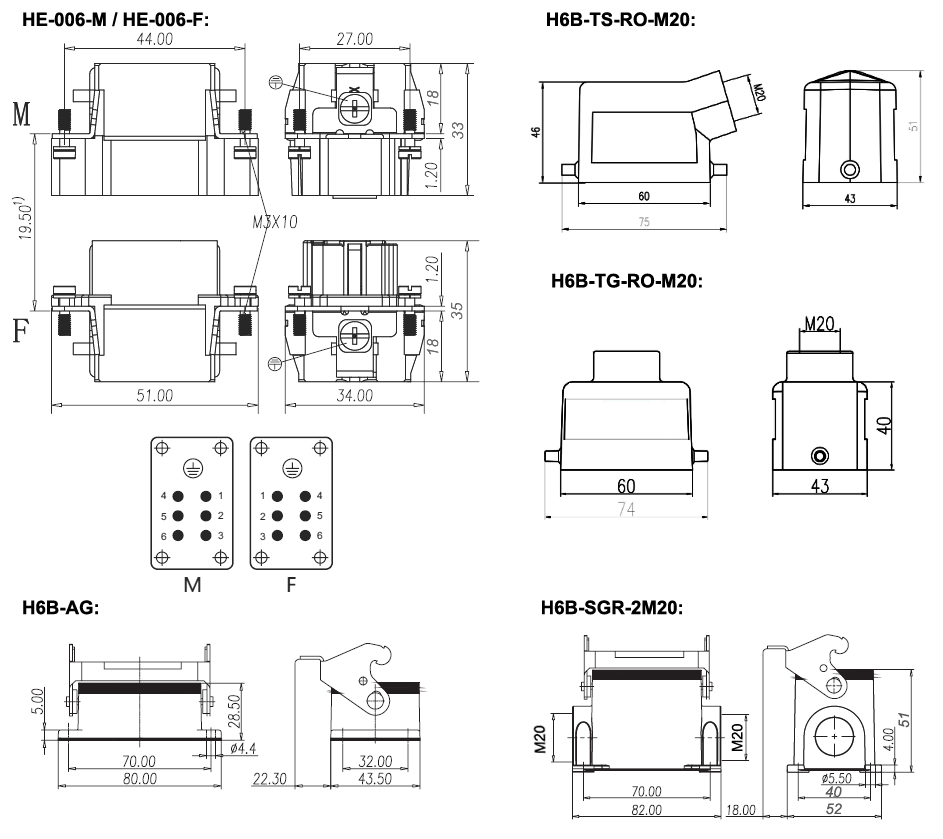

    6 pin AC 500 volt/ 16 amp heavy duty connector dimension
    Tips: 4 functions of the heavy duty connector shell

    1. Shell is the electrical insulation between connectors. It can avoid interference between signals.
    2. Fix the position of heavy duty connector, it is conducive to the insertion and removal and the stability of the position.
    3. Provide mechanical protection and support for inserts
    4. Separate the heavy duty connector from the application environment, reduce the pollution and corrosion of the environment to the connector, and extend the service life of the connector.
