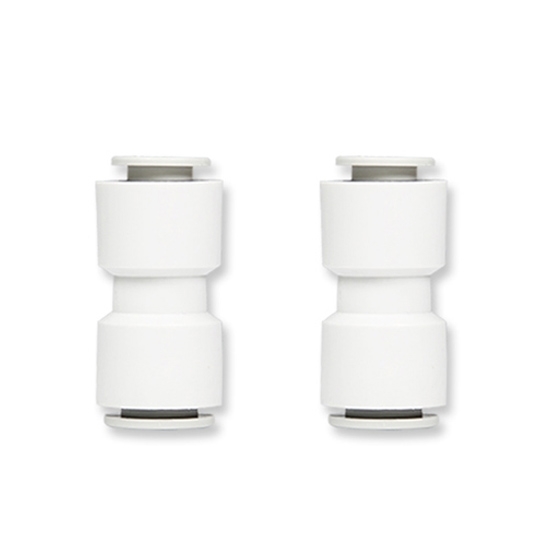

Garden Hose Quick Connector, Intubation Type

5 out of 5 based on 2 reviews | Write a review

$2.25

No tools are required for quick connector installation. Water/air quick connectors connect to hoses in seconds, reducing time and cost. Safe and pressure-resistant quick connectors have 04~16 mm input cannula diameters, suitable for RVs, campers, faucets, lawn sprinklers, spigots, taps, and other garden accessories.

Input/Output Cannula Diameter *

SKU: ATO-QC-I05

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

Get a perfect quick connector solution online. It can quickly connect to watering equipment and garden accessories. Well-made faster connectors feature 04~16 mm input cannula diameters and can connect and disconnect in seconds without tools.

Specifications

Model	ATO-KQ2H
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ4, Φ6, Φ8, Φ10, Φ12, Φ16

Quick Connector Details

Applicable tubing O.D (mm)		Model	Weight (g)
a	b	Model	Weight (g)
Ø4		ATO-KQ2H04-00	3
Ø6		ATO-KQ2H06-00	4
Ø8		ATO-KQ2H08-00	6
Ø10		ATO-KQ2H10-00	11
Ø12		ATO-KQ2H12-00	14
Ø16		ATO-KQ2H16-00	24
Ø4	Ø6	ATO-KQ2H04-06	5
Ø6	Ø8	ATO-KQ2H06-08	6
Ø8	Ø10	ATO-KQ2H08-10	11
Ø10	Ø12	ATO-KQ2H10-12	14
Ø12	Ø16	ATO-KQ2H12-16	47

Tips: What are the types of quick connectors?

Quick connectors are divided into air type, gas type,gas-liquid type, inert gas type, etc.

Air quick connectors are mainly used for quick installation of air pipelines, and connector fittings for pneumatic tools.
Gas quick connectors are mainly used for general fuse piping, with high flow, durability and corrosion resistance.
Quick connectors for gases and liquids are mainly used for piping of ion cooling devices, brewing devices, cutting oil piping of working machines, and car wash machines. It is connected by a simple lever operation and can convey liquids, gases, powders, etc.
The inert gas quick connector is to be used for evacuation piping and compressor pressure test. The sleeve and plug have built-in automatic switching valves suitable for vacuum use, and a vacuum of 1.3×10Pa can be maintained in the separated state.

Quick Connector Dimensions
