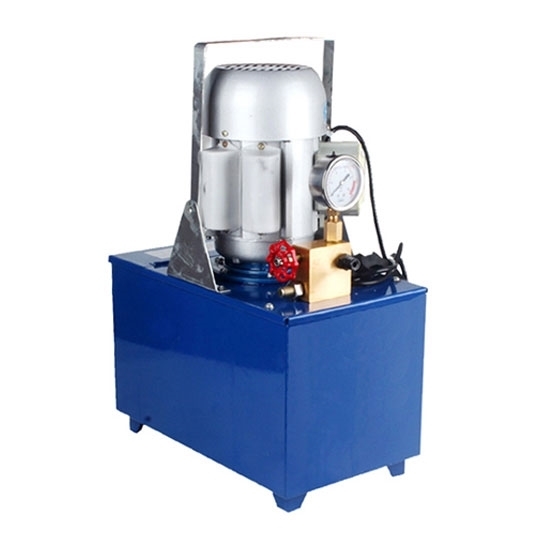

Electric Pressure Test Pump, 2.5-10MPa, 1.0/ 1.2 HP

4.5 out of 5 based on 2 reviews | Write a review

$492.15

Hot selling electric pressure test pump with cheap price for sale online. This type of hydraulic pump with 1 and 1.2 hp motor power. Working pressure has 2.5, 4, 6, 10 MPa, various pressures can be chosen. Electric test pump can be used to test pipes, pressure vessels, sprinkler systems in residential and commercial buildings.

Rated Voltage *
Working Pressure *

SKU: ATO-EPTP-3DSY

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Electric pressure test pump price is affordable. The pressure test pump is a hydraulic electric pump driven by a motor. 360 L/H folw rate and 2.5-10 MPa pressure with this hydraulic pump. It suitable for water or hydraulic oil.

Specification:

Model	ATO-3DSY-25	ATO-3DSY-40	ATO-3DSY-60	ATO-3DSY-100
Rated Voltage	220V, 380V
Working Pressure	2.5 MPa (363 psi)	4 MPa (580 psi)	6 MPa (870 psi)	10 MPa (1450 psi)
Motor Power	1 hp (750W)			1.2 hp (900W)
Flow Rate	360 L/H
Weight	18.4 kg
Hose Port	G1/2" (DN15, 20mm)
Dimension (LWH)	410270550mm

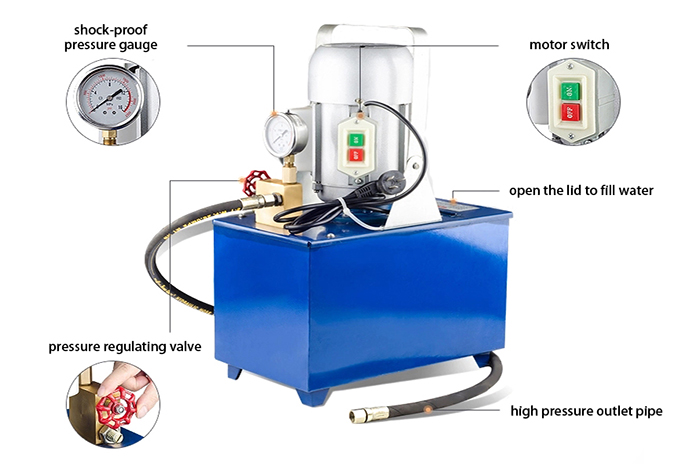

Electric Pressure Test Pump Structure Diagram:

Electric pressure test pump 10 mpa structure

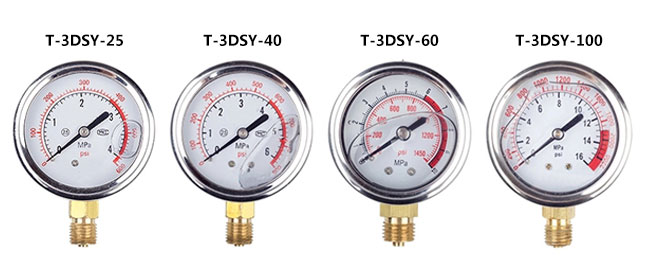

Pressure Gauge Diagram:

Electric pressure test pump pressure gauge diagram 1 hp

Tips: Applications of Electric Pressure Test Pump

Static and burst testing of valves, fittings, pressure vessels, etc.
Aerospace accessories static and dynamic testing.
Performance test and calibration of vehicle brake system and fuel injection nozzle test instruments.
Hydraulic test of building materials testing machine.
Water jet for high pressure cleaning and water cutting equipment.
Injection chemical.
Transport fluids in hazardous areas.
Refrigerant canning.
The lubrication system of mechanical equipment is oil-free.
Clamping, forming, drilling, cutting, stamping and other hydraulic equipment power.
Clamp power for valve test.
Overload protection for large presses, die buffering and lifting power.
Shaft, cylinder liner pressing in, pressing out side pressing tool power.
