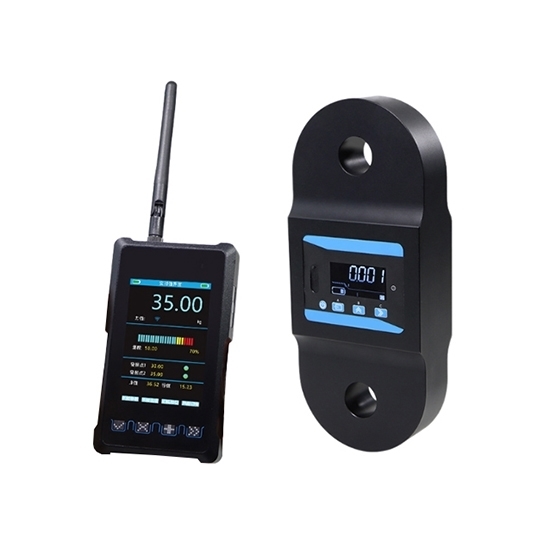

Digital Wireless Crane Scale, Heavy Duty, 25 ton/ 100 ton/ 200 ton

5 out of 5 based on 1 reviews | Write a review

$1,393.78

Powerful digital wireless crane scales for heavy duty lifting operations, offering different load ranges from 25/100 to 200 tons, equipped with a wireless handheld receiver with a transmission distance of up to 200 meters for easy operation. Rugged alloy steel casing and anti-interference wireless system, adaptable to extreme temperatures and harsh environments.

Capacity *

SKU: ATO-CRS-002

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Professional digital wireless weighing scales for heavy machinery and large lifting operations, offering a wide range of load-bearing options up to 25/35/50/70/100/200 tons, with precise measurements. Built-in wireless receiver for real-time monitoring of the lifting process, with high stability and low errors, especially suitable for lifting large weights of equipment.

Specification

Model	ATO-DST-BH-25T	ATO-DST-BH-35T	ATO-DST-BH-50T	ATO-DST-BH-70T	ATO-DST-BH-100T	ATO-DST-BH-200T
Capacity	25000kg (25 ton)	35000kg (35 ton)	50000kg (50 ton)	70000kg (70 ton)	100000kg (100 ton)	200000kg (200 ton)
Output Sensitivity	2.0 ± 0.05mV/V
Zero Output	±1% F.S.
Non-linearity	0.3% F.S.
Hysteresis	0.3% F.S.
Repeatability	0.1% F.S.
Creep	0.1% F.S. (30 minutes)
Temperature Sensitivity Drift	0.05% F.S./10°C
Zero Temperature Drift	0.05% F.S./10°C
Response Frequency	10kHz
Material	Alloy steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20°C~60°C
Safety Overload	1.5
Limit overload	3
Wireless Transmission Distance	200m (No Shade)
Endurance	6 hours
Handheld Wireless Receiver Parameters
Display indexing	-99999~999999
Wireless Communication Linear Distance	>100m
Battery Charge and Discharge	Can be performed about 1000 times
Temperature Drift	Less than 20ppm
Working	12 hours of continuous operation on a full charge
Battery Capacity	3200mAh
Environment	-20°C to 50°C
Meter Weight	Approx. 290g
Protection Class	IP65

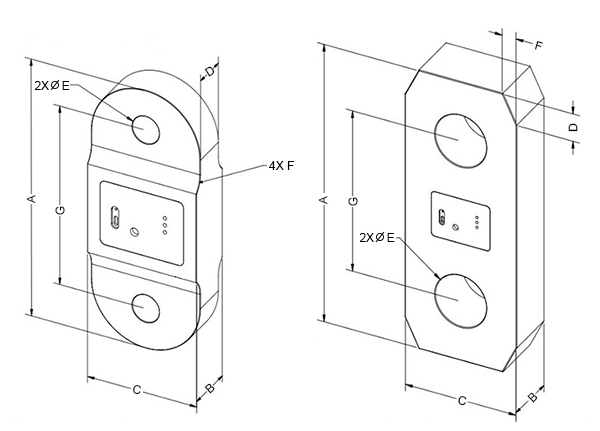

Dimensional Drawing (unit: mm)

Digital wireless crane scale size

Model	Rated Load	Dimension							Material	Net Weight
Model	Rated Load	øE	A	B	C	G	D	F	Material	Net Weight
ATO-DST-BH-25T	25T	53	340	60	125	215	40	20	Alloy steel	15KG
ATO-DST-BH-35T	35T	60	370	70	140	225	40	20	Alloy steel	22KG
ATO-DST-BH-50T	50T	73	400	75	160	230	40	20	Alloy steel	30KG
ATO-DST-BH-70T	70T	73	440	80	180	260	60	40	Alloy steel	39KG
ATO-DST-BH-100T	100T	99	540	100	220	320	60	40	Alloy steel	74KG
ATO-DST-BH-200T	200T	125	650	140	300	350	80	60	Alloy steel	173KG

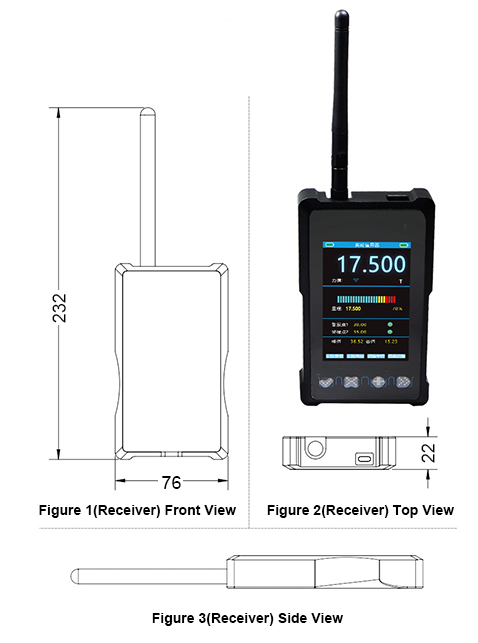

Handheld Wireless Receiver Dimensional Drawing (unit: mm)

Handheld wireless receiver size

Details

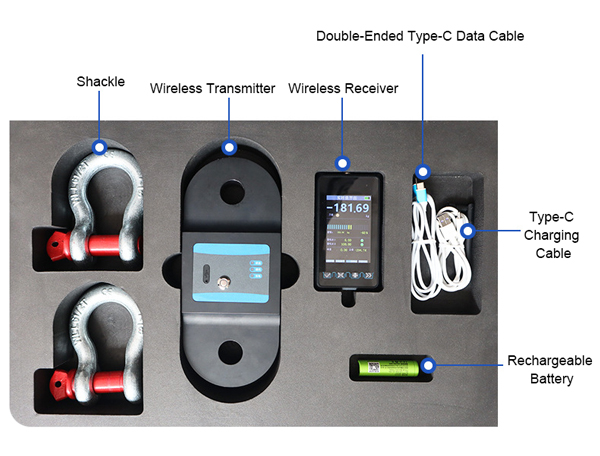

Digital wireless crane scale detail

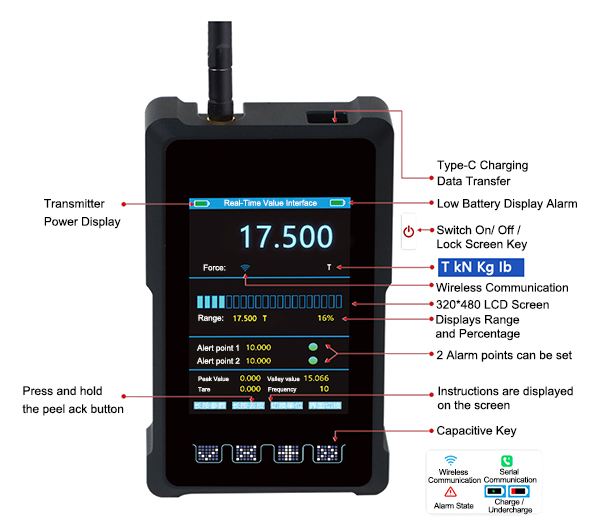

Handheld Wireless Receiver

Tips: Are wireless crane scales suitable for outdoor environments?

Most digital wireless crane scales are designed to be waterproof and dustproof and can be used in outdoor environments. For example, crane scales with IP65 or higher protection can withstand rain, dust and other harsh weather conditions. However, in extreme weather conditions (e.g. strong winds, extreme temperatures or heavy rain), appropriate protection is still recommended. When in use, it is also necessary to ensure that the wireless signal is not interfered with to ensure stable data transmission.
