Digital Pirani Gauge with Dual LCD Display, Pa/mBar/Torr, Analog Output

Write a review

$700.76

Single /dual digital Pirani vacuum gauge manufacturer direct sale. This vacuum and pressure gauge is specially designed for measuring in a low vacuum environment, available with analog output, Pa/mBar/Torr unit and 1.0x10^-1 ~ 1.0x10^5 Pa measuring range.

Model *

SKU: ATO-CX-PRN160

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
User Manual

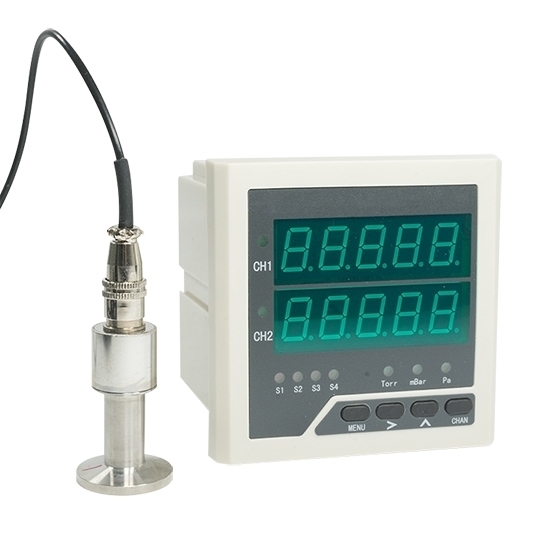

Digital Pirani vacuum gauge offers versatile vacuum measurement, available in two-way (D-type) or single-way (S-type) configurations with precise Pirani regulation. LCD can display Pa/mBar/Torr units. Single or dual-display Pirani vacuum gauge features analog output 0-10V DC, utilizing four single-pole double-throw relays with user-settable control points for flexible operation.

Specifications

Model	ATO-PRN160S	ATO-PRN160D
Display	Single Row of 5 Green LEDs	Dual Rows of 5 Green LEDs
Measuring Range	1.0x10^-1 ~ 1.0x10⁵ Pa
Measurement Accuracy	1.0x10⁴ ~ 1.0x10⁵ Pa: +/-50%; 1.0x10^-1 ~ 1.0x10⁴ Pa: +/-20%
Measurement Characteristics	Display Accuracy: +/-10%; Zero Offset: +/-5.0%
Data Acquisition	Reading Resolution: 1.0%; Response Time <100ms; Display Update Rate: 1s
Signal Input	Four Smart Buttons (Unit selection, atmospheric pressure and high vacuum calibration, degassing, control point setting, etc.)
Signal Output	Analog Voltage 0-10V DC Output. If you need RS485, switch output, or other outputs, please contact us.
Control Unit	4-way SNDT Relay; Load: 3A/220V AC, Non-inductive Load; Response Time <1s, Set Point Power-off Memory
Temperature	0~45℃ (Working Temperature ); -40~75℃(Storage Temperature)
Certificate	CE
Power Supply	84V AC~265V AC/0.5A; Total Power Consumption <10W
Weight	0.5Kg (Including 2 Probes + 3m Cable)
Size	Panel 96x96x15mm; Chassis: 89x89x75mm
Installation Method	Embedded Panel Opening: 90x90mm

Dimension (Unit: mm)

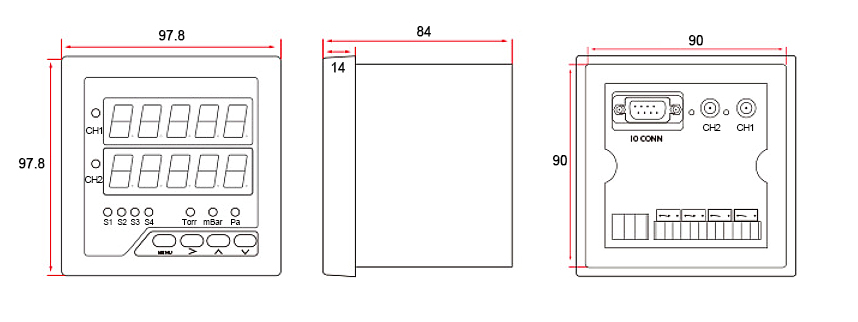

Digital Pirani gauge dimension

Applications

Tips: Does the vacuum gauge need to be calibrated?

Yes, vacuum gauges need to be calibrated to ensure accurate and reliable measurements. Calibration helps adjust for any drift or degradation in the sensor over time, ensuring the gauge provides consistent and accurate readings. Regular calibration is important for maintaining performance and meeting industry standards.

CX-PRN160D Pirani Gauge User Manual
