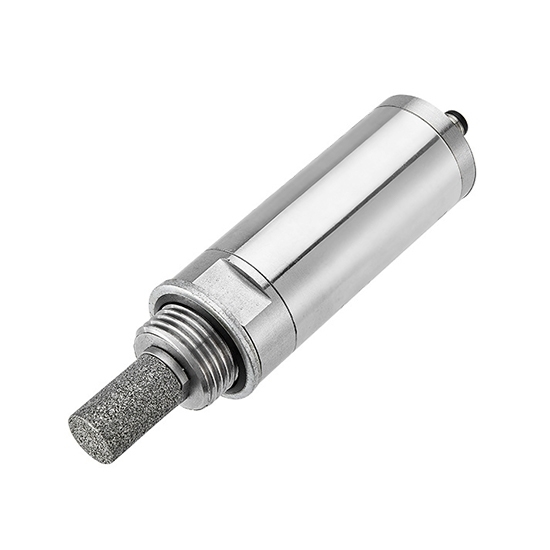

Dew Point Sensor for Air Dryer, -60~+20°C, 4-20mA/RS485

Ideal for compressed air drying systems, miniature dew point temperature sensor delivers accurate -60~+20°C monitoring. Featuring 4-20mA or RS485 outputs, the dew point transmitter ensures reliable data transmission. Essential for maintaining air quality in industrial dehydration processes.

Specification

Features

• Advanced sensor technology: Proprietary chip delivers 100x higher low-humidity sensitivity, a critical feature for any high-performance dew point sensor for air dryer.
• Robust housing design: Features corrosion-resistant stainless steel casing with a smooth, burr-free finish for easy installation.
• Industrial-grade durability: IP65 protection rating ensures reliable operation in demanding and harsh environmental conditions.

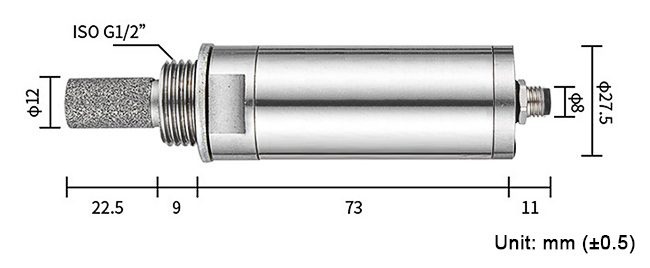

Dimension (Unit: mm)

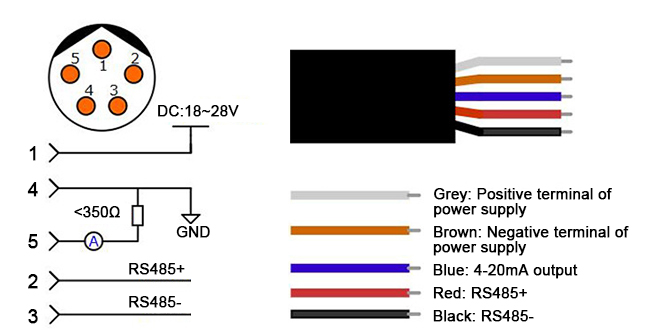

Wiring

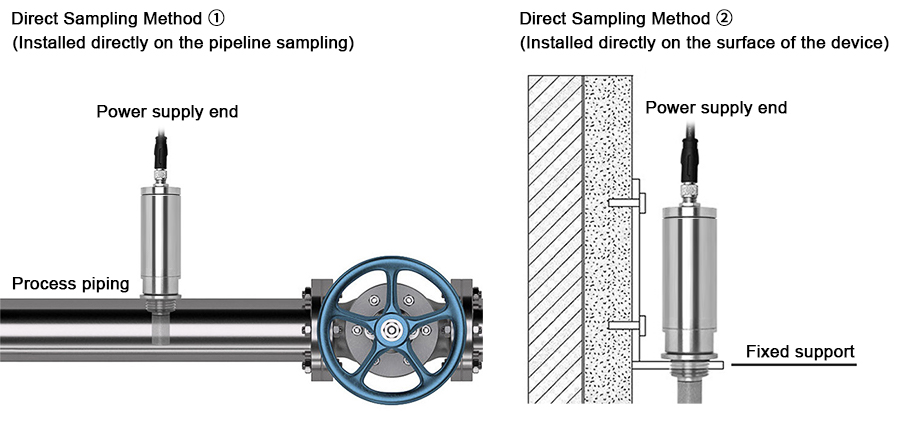

Installation

Application

Tips: Why is the dew point sensor for air dryer highly accurate in low-humidity environments?

Exceptional accuracy stems from an advanced capacitive sensing element with 100x greater sensitivity than standard sensors. This high precision dew point transmitter employs multi-point calibration and temperature compensation to ensure reliable moisture measurement. Stable 4-20mA output signals or RS485 communication protocol maintain precision across diverse operating conditions, making this online dew point transmitter for air dryer ideal for critical low-humidity applications.
