    Clamp Earth Resistance Tester, 0 to 20kΩ

    5 out of 5 based on 1 reviews | Write a review
    $944.09
    Digital clamp earth resistance tester for sale online, especially used for measuring ground resistance, soil resistivity, ground current and ground voltage on site. Soil resistivity tester equipped with a 0 to 20kΩ measure range, 5-inch color LCD screen, USB interface charging port, storage function, clock function, and automatic stores 500 groups. Ground test with clamp meter method, two-wire method, three-wire method, and four-wire method for selection.
    SKU: ATO-ERT-20k
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a high precision earth resistance tester online. It comes with a 0 to 20k ohm measurement range, 5-inch color LCD screen, USB interface charging port, storage function and clock function, suitable for measuring ground resistance, soil resistivity, ground current and ground voltage on site.

    Features

    • ATO earth resistance tester is available with a 32mm clamp and 0Ω~20kΩ measure range.
    • Clamp on earth resistance tester is designed for on-site measurement of ground resistance, soil resistivity, ground current, and ground voltage. It has a 2.5-inch color LCD screen. and USB interface charging port,
    • storage function, and clock function, and automatically stores 500 groups.
    • Digital ground resistance testers can measure grounding resistance by various measurement methods such as the clamp meter method, two-wire method, three-wire method, four-wire method, and selection method.

    Specifications

    Model ATO-ERT-2300
    Resistance Range 0.00Ω~20kΩ
    Soil Resistivity Range 0Ωm~9999kΩm
    Ground Current Range 0.000mA~20A
    Ground Voltage Range 0.0V~600.0V
    Earth Resistance Measurement Methods Clamp meter method, two-wire method, three-wire method, four-wire method, selection method
    Test Frequency 128Hz/111Hz/105Hz/94Hz (AFC automatic frequency selection)
    Display Mode 2.5-inch color LCD screen
    Short Circuit Test Current AC 10mA max
    Open Circuit Test Voltage AC 14V max
    Electrode Spacing Range 1m~100m
    Weight 5.1 kg
    Clamp Size 65mm×32mm
    Tester Size 307mm×98mm×56mm
    Test Line 4 Pieces (red 20m, black 20m, yellow 10m, green 10m)
    Simple Test Line 2 Pieces (red 1.6m, black 1.6m)
    Auxiliary Ground Rod 4*Φ9mm×230mm (935g)
    Measurement Times more than 5000 times (short circuit test, test once, stop for 30 seconds and test again)
    Line Voltage measured below AC 600V
    Data Memory 500 groups
    Audible And Visible Alarm "du—du—du" for alarming, press AL to turn on/off
    Automatic Shut-Down Automatic shutdown after 5 minutes of power on
    Shift Automatically
    External Magnet/Electric Field < 40A/m, < 1V/m
    Resistance Test Frequency >1KHz, 128Hz
    Interface USB interface
    Accessories Resistance Tester: 1PCS; Test Loop:1PCS; Test Ring: 1PCS; USB Charging Cable:1PCS; Charger: 1PCS; Ground Pin: 4PCS; Test Leads: 4PCS; Simple Test Leads: 2PCS; Tool Box: 1PCS


    Range and Accuracy

    Measuring Function Measuring Range Accuracy Resolution
    Measuring Grounding Resistance with Clamp Meter 0.010Ω~0.099Ω ±(1%rdg+0.05Ω) 0.001Ω
    0.10Ω~0.99Ω ±(1%rdg+0.05Ω) 0.01Ω
    1.0Ω~49.9Ω ±(1%rdg+0.5Ω) 0.1Ω
    50.0Ω~99.5Ω ±(2%rdg+0.5Ω) 0.5Ω
    100Ω~199Ω ±(5%rdg+1Ω)
    Two-Three-Four-Wire Method for Measuring Grounding Resistance 0.10Ω~20.00Ω ±2%rdg±5dgt 0.01Ω
    20.0Ω~200.0Ω ±2%rdg±5dgt 0.1Ω
    200Ω~2000Ω ±2%rdg±5dgt
    2.00kΩ~20.00kΩ ±4%rdg±5dgt 10Ω
    Selective Method for measuring grounding resistance 0.10Ω~20.00Ω ±2%rdg±5dgt 0.01Ω
    20.0Ω~200.0Ω ±2%rdg±5dgt 0.1Ω
    200Ω~2000Ω ±2%rdg±5dgt
    Soil Resistivity 0.00Ωm~99.99Ωm Depends on the measurement accuracy of the R
    (ρ=2πaR
    a:1m~100m;
    π=3.14)
    0.01Ωm
    100.0Ωm~999.9Ωm 0.1Ωm
    1000Ωm~9999Ωm 1Ωm
    10.00kΩm~99.99k 10Ωm
    100.0kΩm~999.9k 100Ωm
    1000kΩm~9999kΩm π=3.14) 1kΩm
    Ground Voltage 50Hz/60Hz AC 0.0~600.0V ±2%rdg±5dgt 0.1V
    Ground Current 50Hz/60Hz 0.000mA~5.000mA ±(2.5%rdg+1mA) 0.001mA
    5.0mA~100.0mA ±(2.5%rdg+5mA) 0.1mA
    100mA~500mA ±(2.5%rdg+10mA) 1mA
    0.50A~20.00A ±(2.5%rdg+0.5A) 0.01A

    Note

    • The additional error when rC max or rP max is ≤±5%rdg±5dgt.
    • rC max: 4kΩ+100R<50kΩ, rP max: 4kΩ+100R<50kΩ
    • The additional error at 2.5V interference voltage is ≤±5%rdg±5dgt.

    Details

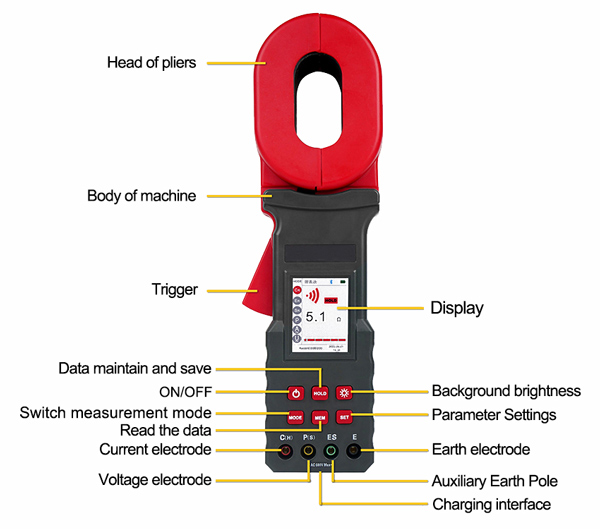

    Clamp earth resistance tester details

    Applications

    ATO provides earth resistance testers with a measurement range of 0.00Ω-300kΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

    Clamp earth resistance tester applicationsTips: Why use a clamp earth resistance tester?

    The clamp earth resistance meter can measure ground faults that cannot be measured by traditional methods and can be applied to occasions that cannot be measured by traditional methods. It is a major breakthrough in traditional ground resistance measurement technology and is widely used in electric power, telecommunications, meteorology, oil fields, construction and ground resistance measurement of industrial electrical equipment.
