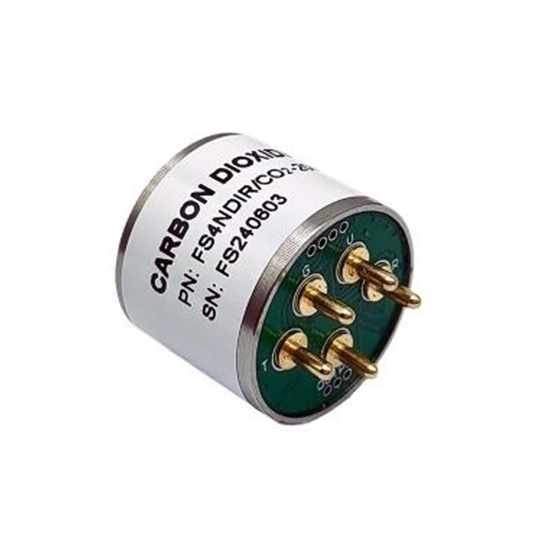

Carbon Dioxide (CO2) Sensor for Home, 0 to 2000 ppm

Good price carbon dioxide gas sensor with 5V constant power supply, low power consumption, average current less than 85mA. CO2 gas sensor offers high sensitivity and resolution and long lifespan advantages.

Features

• High sensitivity and resolution, long lifespan
• 5V constant power supply, low power consumption
• Output method: serial port, DAC (0.4V~2V), etc.
• Quick response & Resume
• Temperature compensation, excellent linear output
• Anti-poisons, anti-vapor interference

Specification

• Model: ATO-FS4NDIR/CO2
• Detection gas: CO2
• Detection principle: Non-dispersive infrared absorption detection (NDIR)
• Working voltage: DC 3.6V~5.0V
• Working current: ≤85mA (5V power supply)
• Measuring range: 0~2000ppm
• Resolution: 1ppm
• Data accuracy: 50ppm±3%FS
• Default output mode: Serial port
• Reserved output mode: DAC (0.4V~2V) (default closed)
• Response time: T90≤120s
• Detection frequency: Update once per second (default)
• Service life: 10 years (in air)
• Working temperature: -20℃~70℃
• Storage temperature: -30℃~60℃
• Working humidity: 0~95% RH (no condensation)
• Storage humidity: 0~95% RH (no condensation)
• Pressure range: 75Kpa~120Kpa

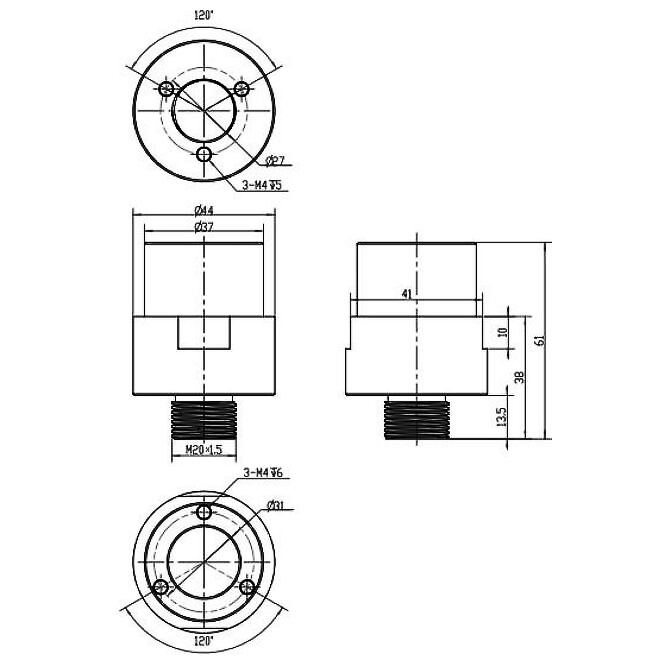

Dimension (mm)

Sensor Working Principle

Tips:  How to Maintain Carbon Dioxide (CO2) Sensor?

1. The instrument should be regularly maintained, do not drop it, and do not let the instrument inhale dust.
2. When the carbon dioxide analyzer is not in use for a long time, the power supply of the instrument should be turned off, and it should be stored carefully and protected from moisture and dust.
3. The model, specifications and parameters of the components in the original circuit shall not be changed during maintenance, and the original package shall not be changed. All repairs must be carried out on the well by professionals.
