    Humidity Sensor, Capacitive, Analog Output 0-3V

    Humidity Sensor, Capacitive, Analog Output 0-3V

    5 out of 5 based on 1 reviews | Write a review
    $37.42
    Capacitive humidity sensor is a 3-wire humidity sensor with high accuracy, good long-term stability, small size, long signal transmission distance above 20m. Humidity sensor has linear analog voltage output 0-3V. A hole on the top of humidity sensor for wall mounting.
    SKU: ATO-TAHS-AM2001
    This product has a minimum quantity of 3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Humidity sensor with 0-3V output signal is easy to connect with dual channel temperature controller for temperature and humidity monitoring.

    Application: Humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
    Specification:

    Item AM1011A
    Weight 14g
    Dimension (L*W*H) 26.7*13.8*58.8mm
    Output signal 0-3V
    Power supply DC 4.75-5.25V
    Measuring range of relative humidity 0~99.9%RH
    Measuring range of temperature -40~+80℃
    Accuracy of humidity ±3%RH
    Accuracy of temperature ±0.5℃
    Power consumption ≤2mA
    Housing material ABS
    Working environment Temperature: -40~80℃, humidity: 0~99.9% no condensation
    Storage environment Temperature: 0~80℃, humidity: ＜95%RH
    Cable length 25cm (customized cable length ≤20m)
    Wiring 1 red: VDD (power supply), 2 yellow: Hout (humidity output 0-3V), 3 black: GND (ground), 4 Gray: Tout (Temperature is NTC 10K)

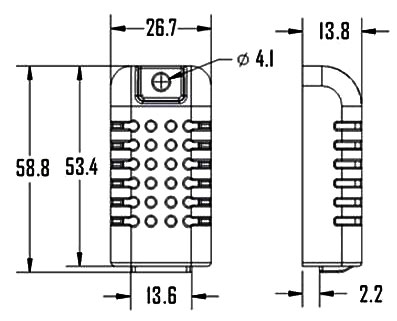

    Dimensional drawing (unit: mm):
    Capacitive humidity sensor analog output 0-3V dimension

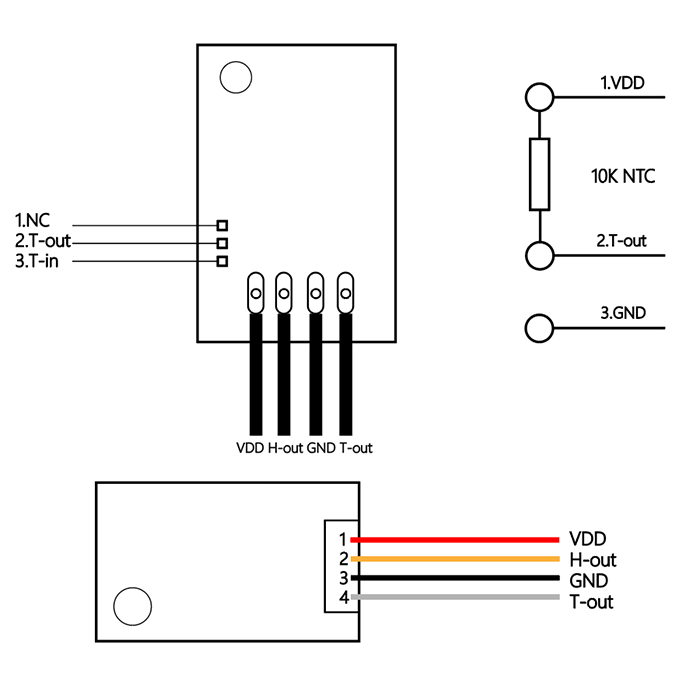

    Pin assignment:
    Capacitive humidity sensor 0-3V pin- assignment

    Existing reviews of Humidity Sensor, Capacitive, Analog Output 0-3V
    Regarding the temperature output signal
    I have a question regarding the temperature output signal on a humidity sensor, SKU: ATO-TAHS-AM2001. Is it required to connect the temperature signal to a data logger to obtain an accurate relative humidity reading?
    From: Cack | Date: 01/08/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you need to connect the temperature signal to the data logger to get an accurate relative humidity reading, you cannot connect the humidity signal alone.
