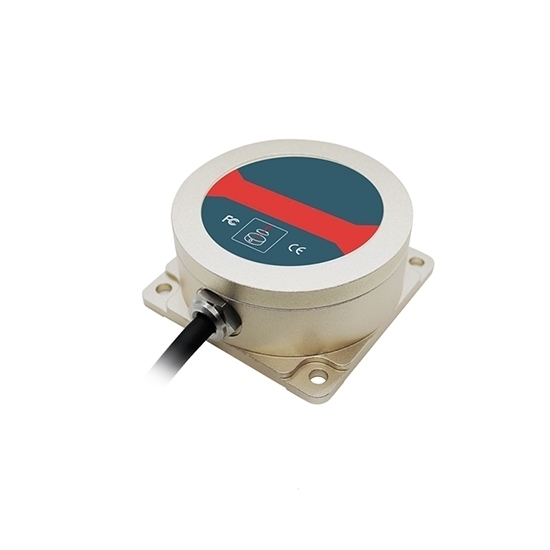

Angular Velocity Output Gyroscope Sensor, ±50°/ ±150°/ ±300°

5 out of 5 based on 2 reviews | Write a review

$1,004.13

Economical price gyroscope sensor with angular velocity output, measuring range ±50°/ ±150°/ ±300° for selection, measuring axis X/ Y/ Z are optional, input voltage 9-36V, current 6mA. Three axis gyro sensor has advantages of high performance, waterproof, light wight and long service life.

Measuring Range *
Output Signal *
Measuring Axis *
Measuring Direction *
Measuring Direction *
Measuring Direction *

SKU: ATO-GS-TL632D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Angular rate sensor with good price, which featuring resolution 0.1°/ s, short starting time 5 ms. The gyro sensor is widely used in position control and attitude control of cars and moving objects, and other occasions requiring precise angle measurement.

Specification

Model	ATO-TL632D-050	ATO-TL632D-150	ATO-TL632D-300
Measuring range	±50°	±150°	±300°
Temperature drift	<±0.2°/s/℃	<±1°/s/℃	<±3°/s/℃
Measuring axis	X, Y, Z (optional)
Bandwidth	>2000Hz
Resolution	0.1°/ s
Nonlinear	0.1% of FS
Starting time	5 ms
Input voltage	9-36V
Current	6mA
Working temperature	-40℃-85℃
Storage temperature	-55℃-100℃
Capacitive load	1000 Pf
Shock	5g-10g
Impact	200g pk, 2ms, 1/2 sine
Connector	5 pins air-plug, matched with 1m cable
Working life	10 years
Output rate	5Hz/ 15Hz/ 25Hz/ 50Hz/ 100Hz/ 300Hz can be set
Output signal	RS232/ RS485/ RS422/ TTL/ SPI
MTBF	≥50000 hours/ times
Iusulation resistance	≥100M
Anti-vibration	10grms, 10-1000Hz
Protection grade	IP67
Certificate	CE, FCC, RoHS
Warranty	12 months

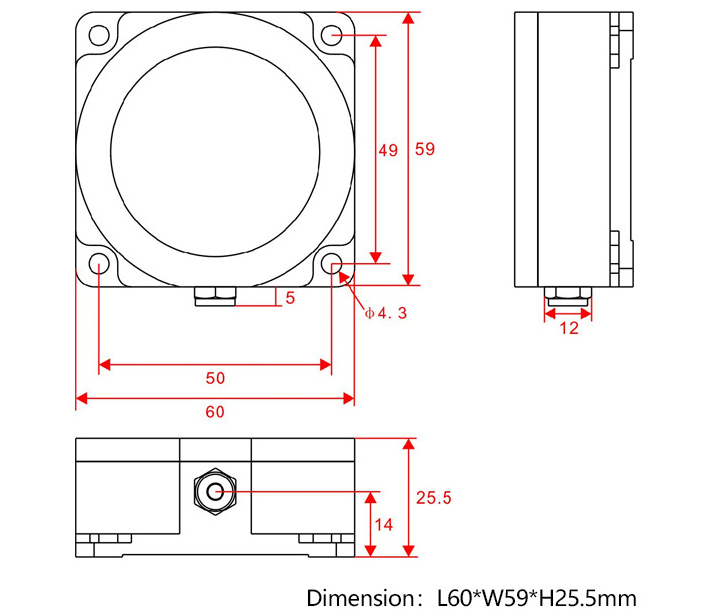

Dimension (unit=mm)

Dimension of gyroscope sensor

Tips: What is Gyroscope Sensor?

Gyro sensors, also known as angular rate sensors or angular velocity sensors, are devices that sense angular velocity. The gyroscope sensor is a simple and easy-to-use positioning and control system based on free space movement and gestures. Flick the mouse on an imaginary plane, and the cursor on the screen will move accordingly, and you can draw circles around the links and click buttons. When you are speaking or leaving the table, these operations can be easily achieved. Gyro sensors were originally applied to helicopter models, and have been widely used in mobile and portable devices such as mobile phones.
