Ammonium Nitrogen Sensor for Water Quality, 0~1000mg/L

Write a review

$555.89

Good water quality sensor for sale. The ammonium nitrogen sensor for water quality uses an ion-selective electrode method, available in three measurement ranges 0~10 mg/L, 0~100 mg/L, 0~1000 mg/L. It features automatic temperature compensation (Pt1000), two-point calibration, and supports RS485/4-20 mA outputs. Ideal for wastewater treatment, aquaculture, and environmental monitoring.

Measuring Range *
Output Signal *

SKU: ATO-WQS-ANS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High-quality water sensor for sale! The ammonium nitrogen sensor uses an ion-selective electrode method with ranges of 0~10 mg/L, 0~100 mg/L, and 0~1000 mg/L. It features automatic temperature compensation (Pt1000), two-point calibration, and RS485/4-20 mA outputs, ideal for wastewater, aquaculture, and environmental monitoring.

Specification

Model	ATO-NHN-106
Outer Material	ABS, PVC, POM
Measurement Principle	Ion-selective electrode method
Range & Resolution	0~10 mg/L: 0.01 mg/L, 0.1°C
	0~100 mg/L: 0.1 mg/L, 0.1°C
	0~1000 mg/L: 0.1 mg/L, 0.1°C
Accuracy	0~10 mg/L: ±10% or ±1 mg/L, ±0.5°C
	0~100 mg/L: ±10% or ±5 mg/L, ±0.5°C
	0~1000 mg/L: ±10% or ±50 mg/L, ±0.5°C
Response Time (T90)	<60s
Minimum Detection Limit	0.09 (0~10 mg/L and 0~100 mg/L)
Minimum Detection Limit	0.9 (0~1000 mg/L)
Calibration Method	Two-point calibration
Temperature Compensation	Automatic (Pt1000)
Output Mode	RS485 (Modbus RTU), 4-20mA (optional)
Storage Temperature	-5~65°C
Operating Conditions	0~40°C, <0.1MPa, 4~10pH
Installation Method	Submersion, 3/4NPT
Power	0.2W @12V
Power Supply	12~24VDC
Protection Level	IP68
Cable Length	5m, other lengths customizable

Feature

Advanced Electrode Technology: Constructed with PVC membrane-based ion-selective electrodes for accurate and reliable measurements.
Temperature Compensation: Integrated automatic temperature and salinity compensation (Pt1000), ensuring precise and stable results under varying conditions.
High-Precision Measurement: Offers quick and precise measurement results, making it efficient and cost-effective for water quality analysis.
Output and Connectivity: RS-485 (Modbus RTU) and optional 4-20 mA outputs, enabling seamless integration with PLC, DCS, industrial computers, or other third-party monitoring systems.
Durable Design: Specialized electrodes withstand pressures up to 100 kPa (1 bar) and prevent damage through a unique salt bridge design, enhancing the sensor's lifespan.
Easy Installation: 3/4 NPT threaded connection for convenient submersible or pipe installation.
IP68 Protection: Multi-layer sealed design ensures resistance to water and dust, allowing normal operation at depths up to 20 meters.

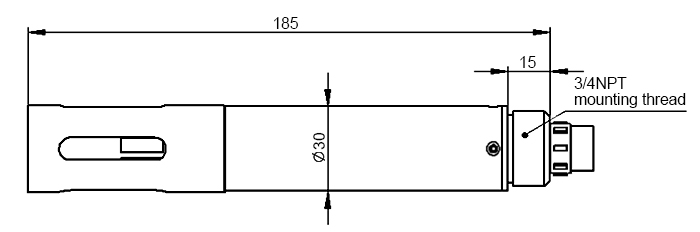

Dimension (Unit: mm)

Ammonium nitrogen sensor size

Note: The sensor connector is a male M16-5 pole waterproof connector.

Installation Method

Ammonium nitrogen sensor installation method

Note: The sensor should not be installed upside down or horizontally, but at least at an angle of 15 degrees or more. The interface of sidewall mounting must be beveled at 15 degrees, otherwise it will affect the normal testing and use of the electrodes.

Application

Tips: What is the working principle of the sensor?

The working principle of the Ammonium Nitrogen Sensor is based on the ion-selective electrode method, which detects ammonium ions (NH₄⁺) in water. The sensor measures the electrical potential difference created by ammonium ions interacting with the ion-selective membrane, converting this into a corresponding concentration value. This method ensures high sensitivity, accuracy, and stability, making it ideal for monitoring ammonium nitrogen levels in various water quality applications.
