90W Gigabit PoE Injector Adapter, RJ-45

The 90W power over ethernet injector for sale, it comes with an input voltage of AC110-240V and an output voltage of DC52V/0.58A. High quality PoE Gigabit injector power supply is extremely easy to use and ideal for professionals and non-technical users alike.

Specification

• Model: ATO-PG-90
• Input Voltage: AC110-240V
• Output Voltage: DC52V/2.88A
• Port Definition: 1 Gigabit PoE port + 1 Gigabit RJ45 network port + 1 AC power connector
• Network Protocol: Standard IEEE802.3af/at
• POE Power: 90W(max)
• Power Supply Core: 1/2(+),3/6(-), or 4/5(+),7/8(-) adaptive
• Network Transmission: 1/2,3/6,4/5,7/8
• Transmission Medium: Cat5E, Cat6 or above (≤100m)
• Dimensions: 190*100*50 mm
• Weight: 0.8KG (including AC cable)
• Working Temperature: - 10°C~60°C

Features

• The Gigabit PoE adapter housing is made of PC+ABS fire-retardant and environmentally friendly material, which is resistant to wear and pressure.
• 90W PoE injector supports Gigabit network port, standard IEEE803.3AF/AT protocol.
• The red light is always on when the device is powered normally, the green light is always on when there is POE output, and the yellow light flashes when the power exceeds 60W.
• The PoE injector adapter is supplied with lugs at the top and bottom to support wall mounting.

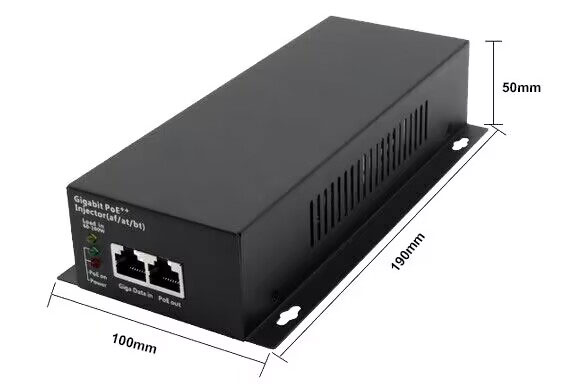

Dimension (unit: mm)

Plug Options

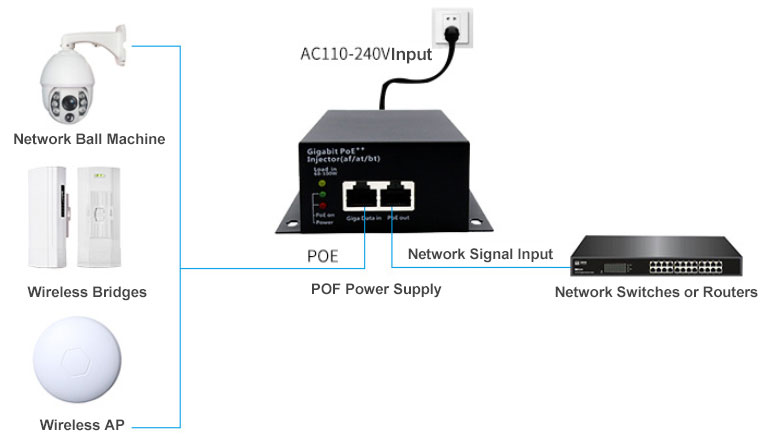

Wiring Diagram

Applications

PoE injectors are commonly used in various applications, such as powering IP cameras and wireless access points over Ethernet cables. They provide a convenient and cost-effective solution for delivering both power and data to these network devices.

Tips: How does a PoE injector work?

A Power over Ethernet (PoE) injector is a device used to deliver electrical power and network connectivity to devices over a single Ethernet cable. It enables the transmission of both data and power to compatible devices, eliminating the need for separate power cables.

Here's how a PoE injector typically works:

• Power Source: The PoE injector requires a power source, usually a standard electrical outlet. It is connected to the power source using a power cord.
• Data Source: The injector also needs a data source, which is typically an Ethernet switch or a network router. The data source is connected to the injector via an Ethernet cable.
• Power and Data Transmission: The PoE injector combines power and data signals. It takes the power from the electrical outlet and converts it to a form suitable for transmission over Ethernet cables. The data signals from the network source are also combined with the power signals.
• Injection: The combined power and data signals are injected into an Ethernet cable. This cable is then connected to the device that requires both power and network connectivity. The device should be compatible with PoE and have a corresponding PoE port.
