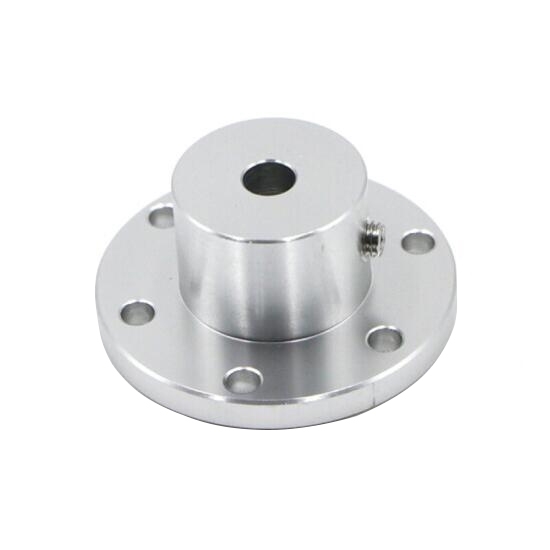

8mm Rigid Flange Shaft Coupling

The low price rigid flange shaft coupling connector for sale, with an 8 mm bore size, offers high torque capacity and excellent misalignment compensation, making it the perfect choice for demanding power transmission applications.

Specification

• Model: ATO-RFC-08
• Inner Diameter: 5mm
• Treatment Process: Oxidation
• Processing Accuracy: ±0.05mm
• Tolerance: 0.05mm
• Weight: 76g

Features

• A rigid flange shaft coupling is a special coupling that fixes a shaft to a flat surface and allows easy mounting of other accessories on the shaft.
• The rigid flange shaft coupling is made of high quality aluminium alloy, which is hard and resistant to moisture and rust, and has a long service life.
• 8mm rigid flange coupling connector is suitable for connecting model shafts, perfect for RC model motors etc.
• The rigid flange coupling connector is relatively easy to install, thanks to its simple design and few moving parts.

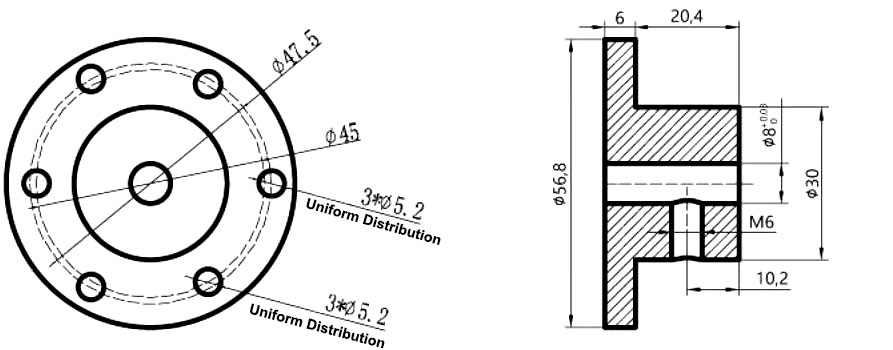

Dimension (Unit mm)

Applications

A flange coupling is a type of mechanical joint that is used to connect two rotating shafts in order to transmit power. Flange couplings are commonly used in industrial machinery and equipment, such as pumps, compressors, and turbines. The field of application for flange couplings is wide-ranging and includes industries such as oil and gas, power generation, water treatment, and manufacturing.

Tips: What is the difference between coupling and flange adapter?

Coupling and flange adapter are both components used to connect pipes or other fittings, but they differ in their design and method of connection.

A coupling is a type of fitting that connects two pipes or fittings together. It typically consists of two halves with internal threads that screw onto the outside of the pipes or fittings. The two halves are then tightened together to create a secure connection. Couplings are usually used for joining pipes of the same size and material.

A flange adapter, on the other hand, is a type of fitting that connects two pipes or fittings using a flange connection. A flange adapter typically consists of a flanged end and a plain end. The flanged end has bolt holes that line up with matching bolt holes on the flange of the other pipe or
fitting. The two flanges are then bolted together, creating a secure connection. Flange adapters are often used for joining pipes of different sizes or materials.

In summary, the main difference between coupling and flange adapter is that a coupling is a threaded connection, while a flange adapter is a bolted connection with a flanged end.
