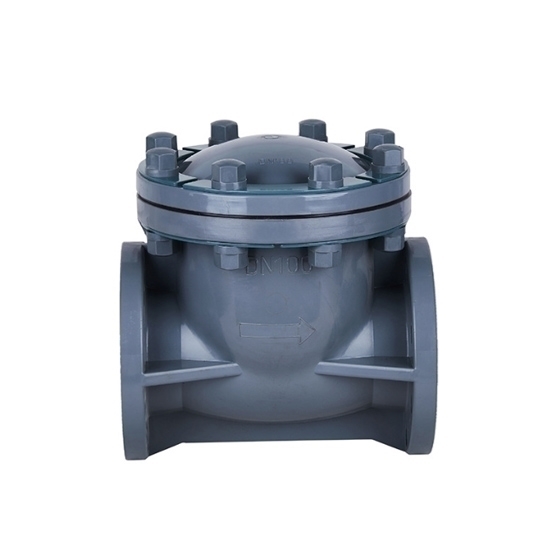

    8 inch Swing Check Valve, DN200, CPVC

    $2,706.92
    8 inch swing check valve can prevent backflow and ensure unidirectional flow in piping systems. Non return valve, DN200, CPVC material, one way, excellent resistance chemical and heat resistance, widely used in iron and steel, metallurgy, petroleum, chemical industry, environmental protection, sewage treatment management, etc.
    *
    SKU: ATO-SCV-008
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Competitive price 200mm swing check valve uses CPVC for chemical resistance, corrosion resistance and high-temperature resistance. 8 inch swing type check valve is typically used in piping applications where reliable backflow prevention is required, such as water supply, wastewater treatment, irrigation and industrial processes.

    Features

    • The check valve can prevent the phenomenon of liquid counter-current from protecting the pump equipment.
    • Because it is a cantilever check valve, there is less resistance to flow.
    • The 8 inch swing check valve uses CPVC materials and plays a strong corrosion resistance to prevent acid and alkali fluid.
    • Not only can the valve body be removed from the pipeline, but also the valve cover can be opened for internal inspection and maintenance.

    Specifications

    • Model: ATO-H44F-10S
    • Check Valve Type: Swing
    • Nominal Diameter: 8 inch/200mm
    • Nominal Pressure: 10kg
    • Drive Mode: Manual
    • Pressure Environment: Low Pressure
    • Type (Channel Position): 2 Ways
    • Flow Direction: One Way
    • Body Material: CPVC
    • Connection Form: Flange
    • Weight: 35.2kg
    • Applicable Medium: Acid-Base concentration higher than 30%, lower than 60%, except hydrochloric acid.

     Dimension (Unit: mm)

    Swing check valve dimension

    Nominal Diameter D1 D2
    GB JIS ANSI
    DN200 340 295 290 11.75
    L h n-Φ
    GB JIS ANSI
    500 30 4-Φ23 4-Φ23 4-Φ22


    Applications

    Swing check valve applications

    Tips: Why choose CPVC material for the check valve?

    CPVC (Chlorinated polyvinyl chloride) is a thermoplastic material that is frequently used for check valves in a variety of fluid-handling applications. Here are some reasons why CPVC may be a good choice for check valve material:

    • Corrosion resistance: CPVC is highly resistant to corrosion, making it an excellent choice for use in applications where the fluid being handled may be corrosive or aggressive.
    • Temperature resistance: CPVC can withstand a wide range of temperatures up to 95 degrees Celsius, making it suitable for use in high-temperature applications.
    • Mechanical strength: CPVC is a strong and durable material that can withstand high pressures and stress. It has a high tensile strength and can resist impacts and shock.
    • Chemical resistance: CPVC is resistant to a wide range of chemicals, including acids, alkalis, and organic solvents. This makes it a good choice for use in chemical processing plants, water treatment facilities, and other applications where exposure to chemicals is common.
    • Low thermal conductivity: CPVC has a low thermal conductivity, which means that it does not transfer heat as easily as other materials. This makes it a good choice for use in applications where heat loss or gain needs to be minimized.
    • Low flame spread: CPVC has a low flame spread rating and is self-extinguishing, making it a safe choice for use in applications where fire resistance is important.
