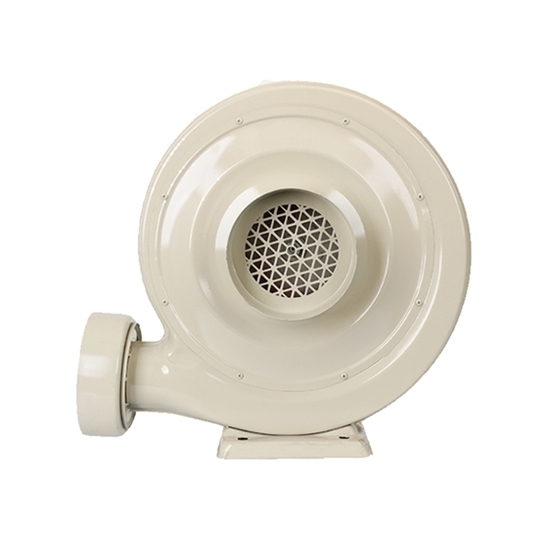

750W Centrifugal Fan, 110V/220V, 2800 rpm

The portable centrifugal air blower has built-in thermal overload protection to prevent overheating and to ensure the life of the motor. 750W centrifugal air blower is designed to be user-friendly and easy to install, operate and maintain.

Specification

• Model: ATO-CF-750
• Power: 750W
• Air Outlet Caliber: 148mm
• Air Volume: ≥17 m3/min
• Wind Pressure: ≥1.9 Kpa
• Voltage: 220V/380V/110V
• Speed: 2800r/min
• Restless Sound Level: <60dB
• Temperature: 50°C
• Weight: 11.42kg

Features

• The heat sink rear cover adopts a brand-new design, which is sturdy and has excellent heat dissipation.
• The circular air intake has a large air volume, high wind speed, and high efficiency.
• The centrifugal blower comes with a portable handle, making it easy to carry and reducing the force applied by the hand.
• Direct-connected centrifugal air duct design has a large capacity and can withstand high pressure, making it suitable for long pipeline operations.
• A sturdy circular base increases the contact area for force, making it less susceptible to external forces.

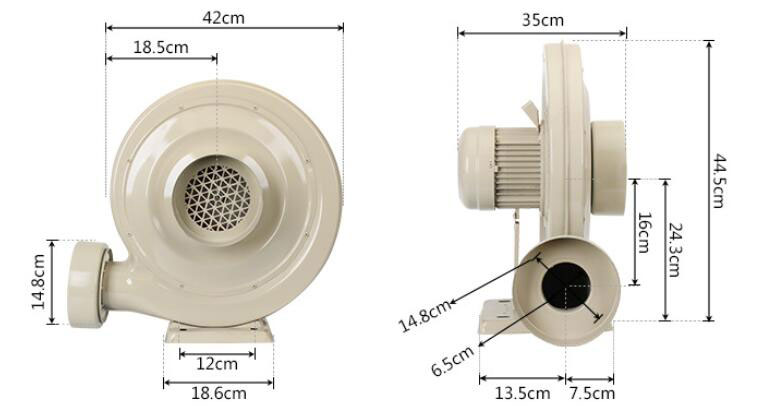

Dimension (Unit: cm)

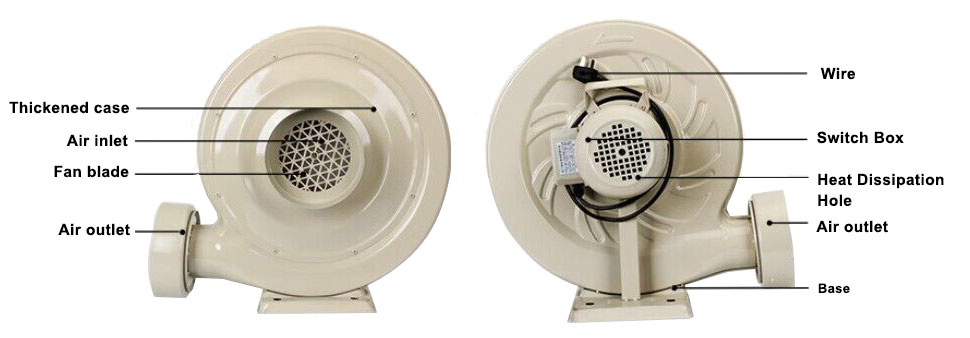

Details

Applications

Centrifugal fans are commonly used in various industrial applications such as HVAC systems, chemical processing, power generation, wastewater treatment, and pneumatic conveying systems. They are also utilized in the manufacturing of materials such as plastics, paper, and cement. Additionally, centrifugal blowers can be found in applications related to food processing, mining, and automotive manufacturing.

Tips: What is an HVAC blower fan?

An HVAC blower fan is an essential component of a heating, ventilation, and air conditioning (HVAC) system. Its primary function is to circulate air throughout the system and distribute conditioned air to different areas of a building. The acronym "HVAC" stands for Heating, Ventilation, and Air Conditioning.

The blower fan is typically located inside the air handling unit (AHU) or the furnace in HVAC systems. It works in conjunction with the other components of the system, such as the air conditioner or heater, to ensure that the desired indoor temperature and air quality are maintained.

Overall, the HVAC blower fan plays a crucial role in the efficient operation of heating and cooling systems, ensuring proper air circulation and distribution throughout the building.
