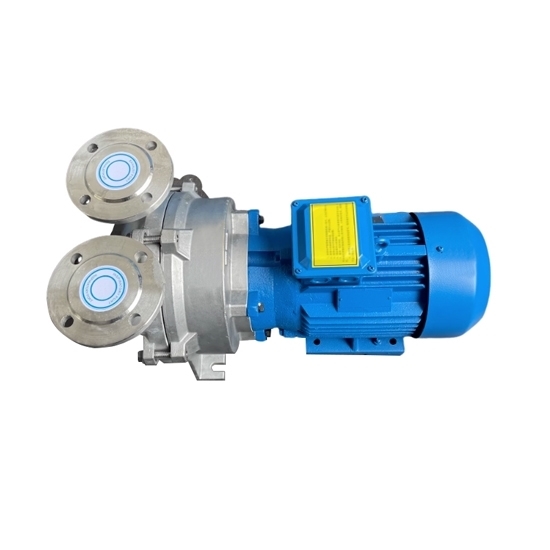

7.5 HP (5.5 kW) Water Ring Vacuum Pump

A 7.5 hp water ring vacuum pump is a type of industrial vacuum pump that operates using a liquid ring as its primary mechanism for creating suction. Liquid ring pump known for its relatively simple design, robustness, and ability to handle a wide range of gases and vapors, including those that may contain particulates or liquids.

Features:

• Equipped with cavitation protection pipe interface.
• Flexible exhaust port design, no over compression.
• Designed with coaxial direct connection, which saves space and is easy to install.
• Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

• Model: ATO-2BV5111
• Power: 7.5 hp (5.5 kW)
• Rated Voltage: 380V
• Phase: 3 phase
• Frequency: 50 Hz
• Max Gas Volume: 230 m³/h
• Extreme Pressure: 3300 Pa
• Noise: 68 dB
• Material: stainless steel

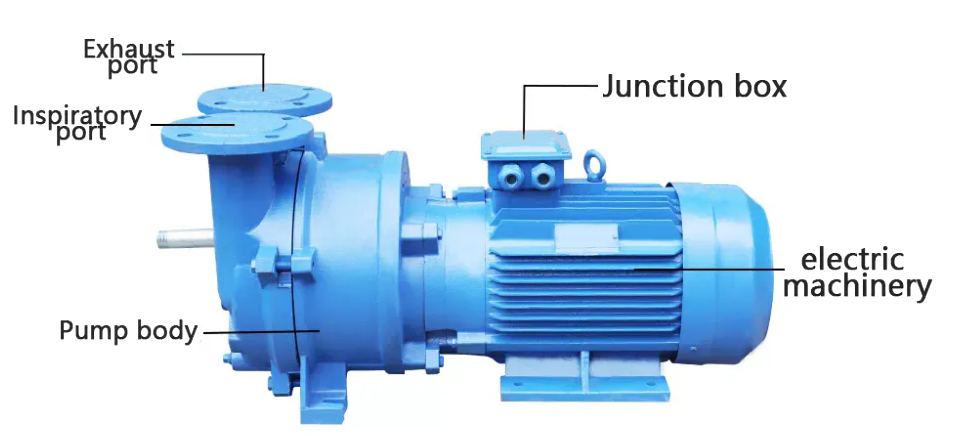

Structure:

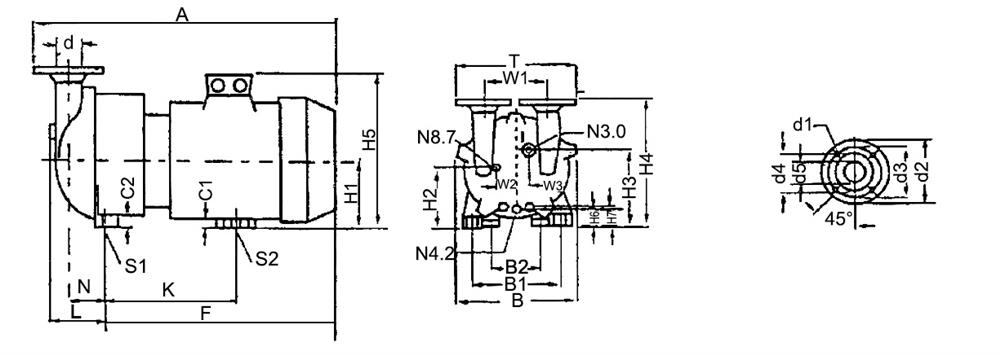

Dimension (Unit: mm)

Application:

Tips: Water Ring Vacuum Pump Advantages

• Reliable and durable. Water ring vacuum pumps are known for their robust design and can operate continuously without significant wear and tear. They are highly reliable and have a long service life, making them suitable for demanding industrial environments.
• Wide range of applications. Water ring vacuum pumps are versatile and can handle a wide range of gases and vapors, making them suitable for various applications such as vacuum distillation, vacuum filtration, degassing, drying, and more.
• Self-priming capability. Water ring vacuum pumps are capable of self-priming, which means they can start pumping without needing additional priming or pre-filling of the pump chamber. This makes them easy to operate and minimizes the need for additional equipment.
