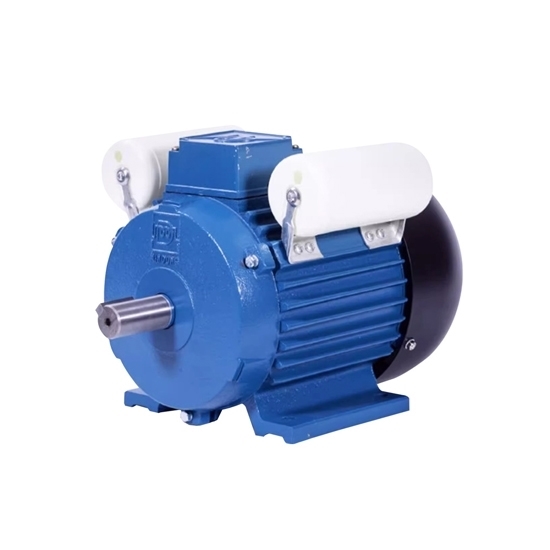

7.5 hp (5.5kW) Single Phase Induction Motor, 3000rpm

$1,449.23

7.5 hp single phase motor for sale online. It is an asynchronous motor, offers 3000rpm speed, and works at 200V/110V/230V/240V AC 50/60 Hz. 5.5kW single phase induction motor with two ac capacitors (start capacitor and run capacitor) to provide start torque at rest. It is easy to repair and maintain, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Voltage (V) *

SKU: ATO-SPM-5500

Qty:

30-day Returns

Free Shipping

Delivery date: 20-30 days

Overview
Related Video

7.5 hp single phase motor for sale online. It has 3000rpm speed, and operates at 200V/110V/230V/240V AC 50/60 Hz. 5.5kW single phase induction motor provides start torque by a start capacitor and run capacitor. High efficiency asynchronous motor, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

7.5 hp Single Phase Induction Motor Specifications

Basics	Model	ATO-YC-132M
	Protect Feature	Enclosed
	Phase	Single phase
	Power	AC
	Certification	CE
	Type	Asynchronous Motor
	Weight	50 kg
Technical Parameters	Output	7.5 hp
	Output	5500 W
	Voltage	1 phase 220V/110V/230V/240V
	Current	32.5 A
	Speed	3000 rpm
	Eff	81%
	Power Factor	0.95
	st/In	6.5
	Tstart/Tn	2.1
	Tmax/Tn	1.8
Operating Conditions	Ambient Temperature	-15℃≤θ≤40℃
	Altitude	exceed 1000m
	Rated Frequency	50Hz/60Hz
	Duty	S1 (continuous)
	Insulation Class	B/F
	Protection Class	IP44/IP54
	Cooling Method	IC0141

7.5 hp Single Phase Motor Induction Dimension (Unit: mm)

Model	A	AA	AB	AC	AD	AG	AF	B	BB	C	D	E	EB	EA	F	G	GA	H	HA	K	L	LL
132M	216	57	260	258	183	105	285	178	215	89	38	80	70	60	10	33	8	132	18	12	510	105

Details

Tips: How to choose the right single phase induction motor?

Power

Consider voltage and other factors. If the line is far away, the single-phase motor should choose low power.

Rotation speed

Generally speaking, the performance of a high-speed motor is better than that of a low-speed motor.

Noise and vibration

The quality of a single-phase motor can be roughly judged based on the noise. The noise from high-quality motors is small and not harsh.

Running hot

Normally, single-phase motors will generate heat during operation, which is allowed.
